ASRock EP2C612D16FM2 [61/99] Usb configuration
![ASRock EP2C612D16FM2 [61/99] Usb configuration](/views2/1694586/page61/bg3d.png)
EP2C612D16FM2
54 55
English

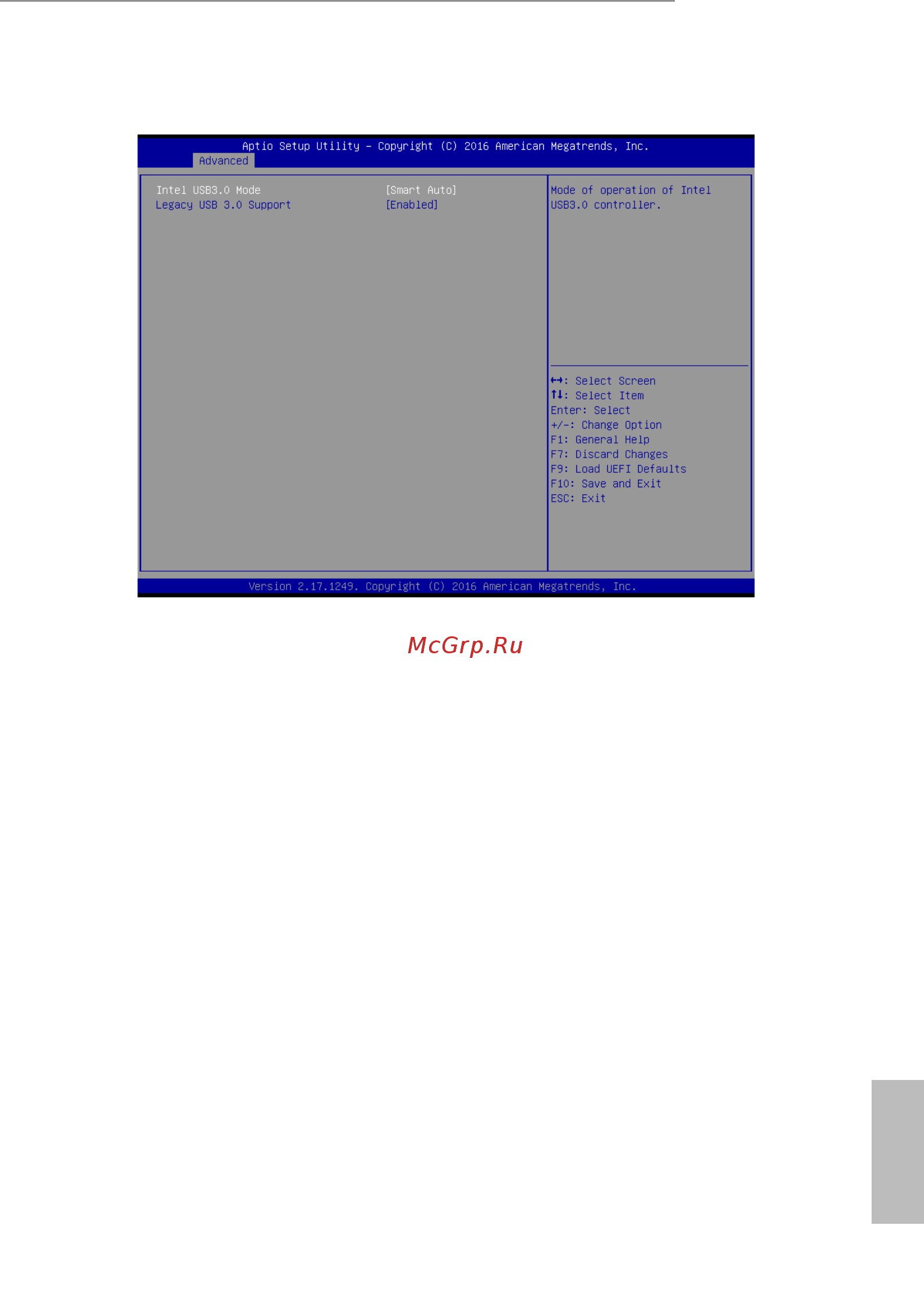

3.3.6 USB Conguration
Intel USB3.0 Mode
Enable or disable all the USB 3.0 ports.
Legacy USB 3.0 Support
Enable or disable support for legacy USB devices.
