12 13
English

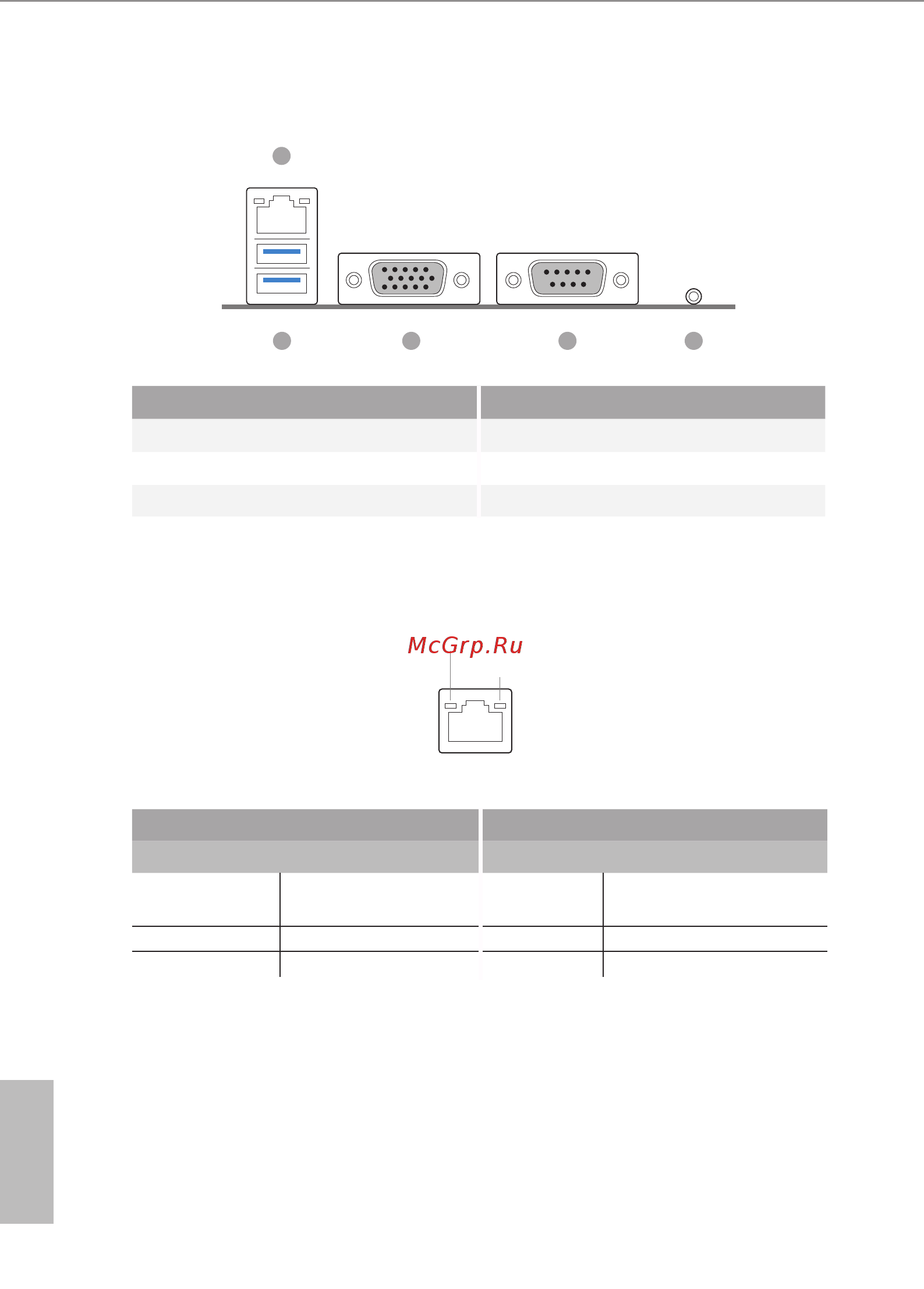

1.6 I/O Panel
3
5
4
1
2
No. Description No. Description
1 USB 3.0 Ports (USB3_1_2) 4 Serial Port (COM1)
2 LAN RJ-45 Port (IPMI_LAN1)* 5 UID Switch (UID)
3 VGA Port (VGA1)
LAN Port LED Indications
*ere are two LED next to the LAN port. Please refer to the table below for the LAN port
LED indications.
Dedicated IPMI LAN Port LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10M bps connection or no
link
Blinking Yellow Data Activity Yellow 100M bps connection
On Link Green 1G bps connection
ACT/LINK LED
SPEED LED
LAN Port
