FH-C612NM
24 25
English

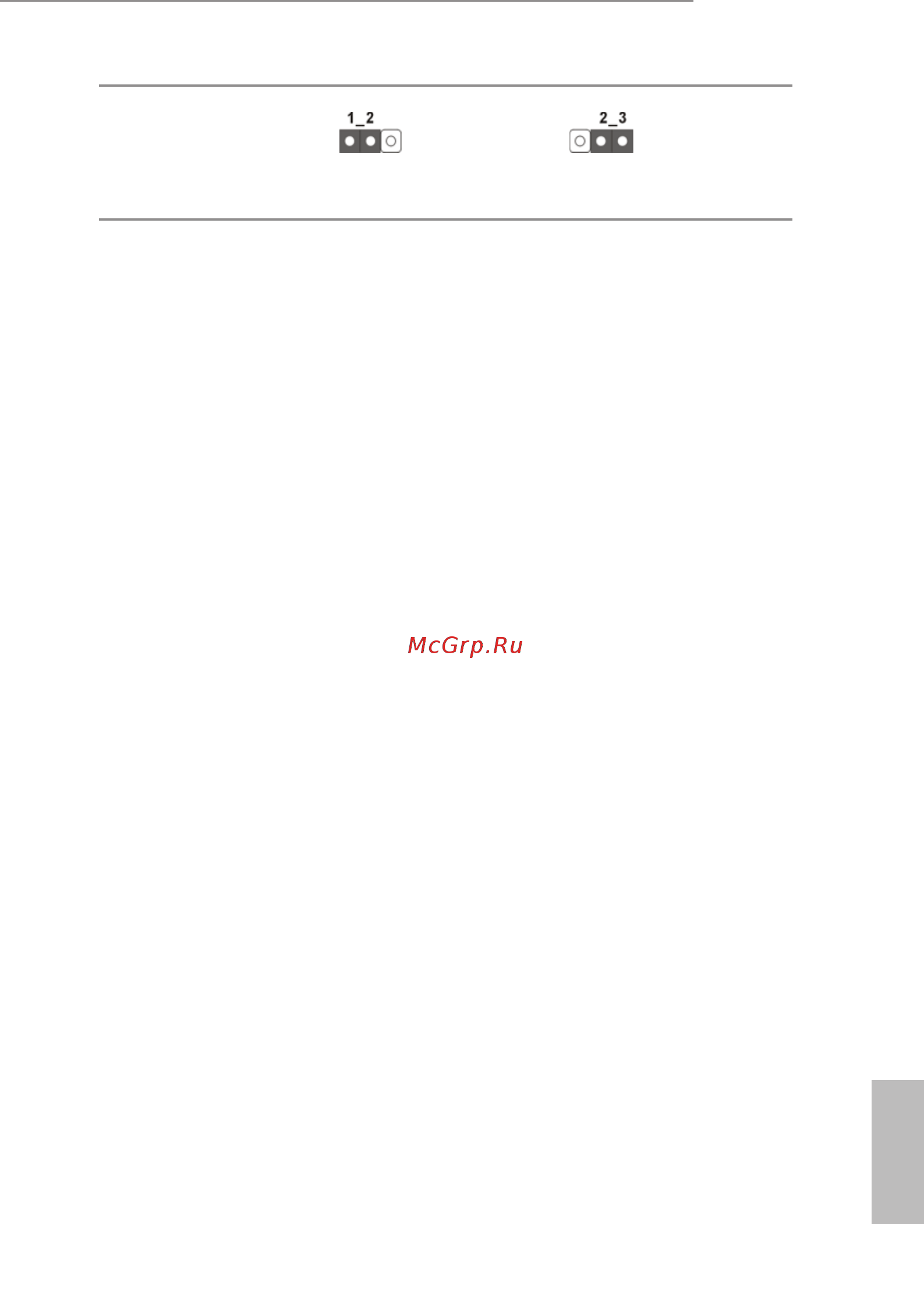

BIOS Selection Jumper
(3-pin BIOS_SEL1)
(see p.7, No. 45)
BIOS 1 (BU1_A) (default)
BIOS 2 (BU1_B)
is motherboard has two BIOS onboard, a main BIOS (BU1_A) and a backup BIOS (BU1_B),
which enhances protection for the safety and stability of your system. Normally, the system works
on the main BIOS. However, if the main BIOS is corrupted or damaged, please use a jumper cap to
short pin2 and pin3, then the backup BIOS will take over on the next system boot. Aer that, then
use “Secure Backup UEFI“ in BIOS setup utility to copy the BIOS le to the main BIOS to ensure
normal system operation. For the sake of system safety, users cannot update the backup BIOS
manually. Users may refer to the BIOS LED (BIOS_A_LED or BIOS_B_LED) to identify which
BIOS is activated currently.
