E3C246D4M-4L / E3C242D4M-4L
14 15
English

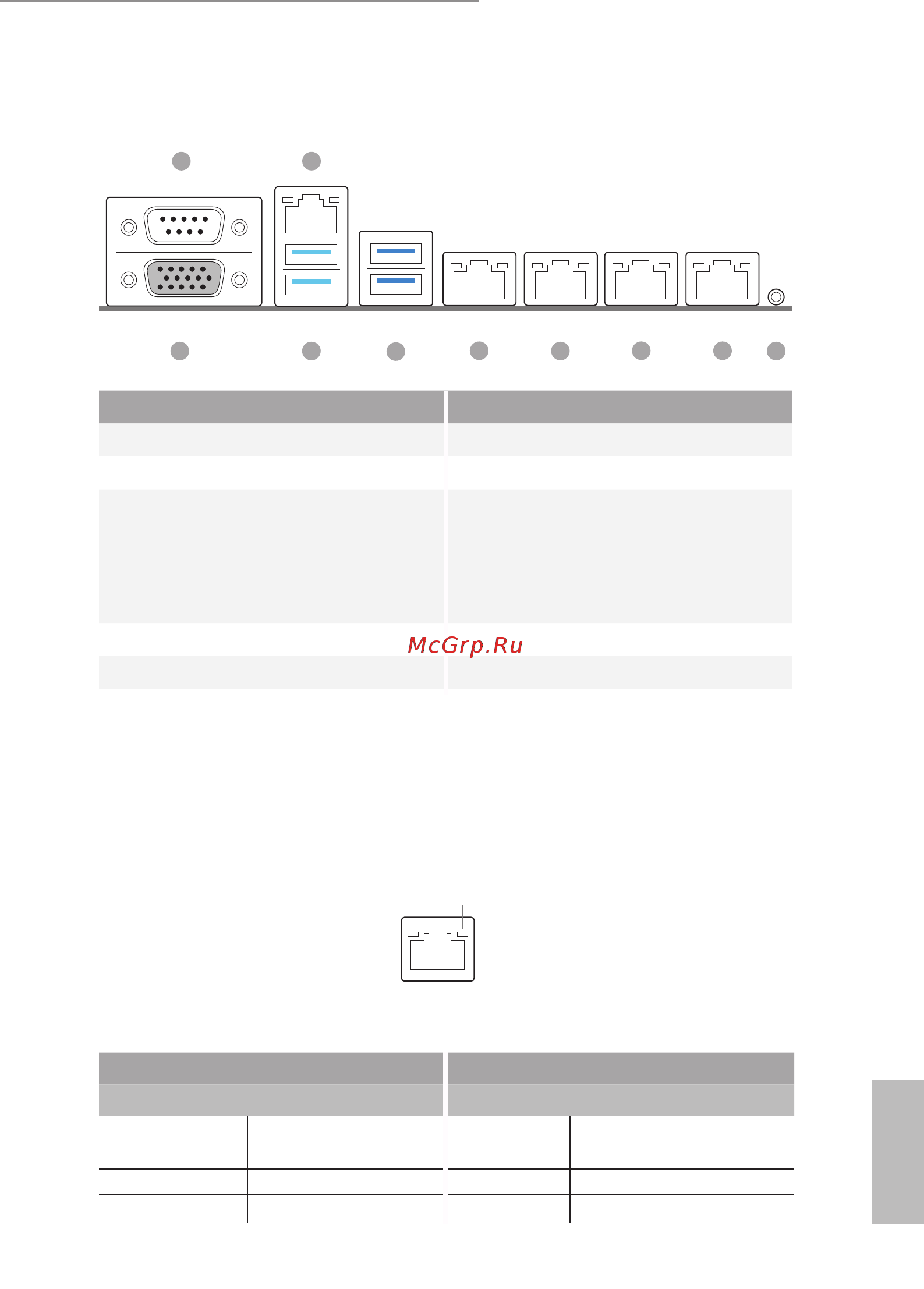

1.6 I/O Panel
7
6
3
2
1
4
98
10
5
No. Description No. Description
1 VGA Port (VGA1) 6 LAN RJ-45 Port (LAN1)**
2 Serial Port (COM1) 7 LAN RJ-45 Port (LAN2)**
3
E3C246D4M-4L:
USB 3.1 Gen2 Ports (USB31_1_2)
E3C242D4M-4L:
USB 3.1 Gen1 Ports (USB31_1_2)
8 LAN RJ-45 Port (LAN3)**
4 LAN RJ-45 Port (IPMI_LAN)* 9 LAN RJ-45 Port (LAN4)**
5 USB 3.1 Gen2 Ports (USB31_3_4) 10 UID Switch (UID1)
Note: LAN2 supports NCSI.
LAN Port LED Indications
*ere are two LED next to the LAN port. Please refer to the table below for the LAN port
LED indications.
Dedicated IPMI LAN Port LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10M bps connection or no
link
Blinking Yellow Data Activity Yellow 100M bps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
