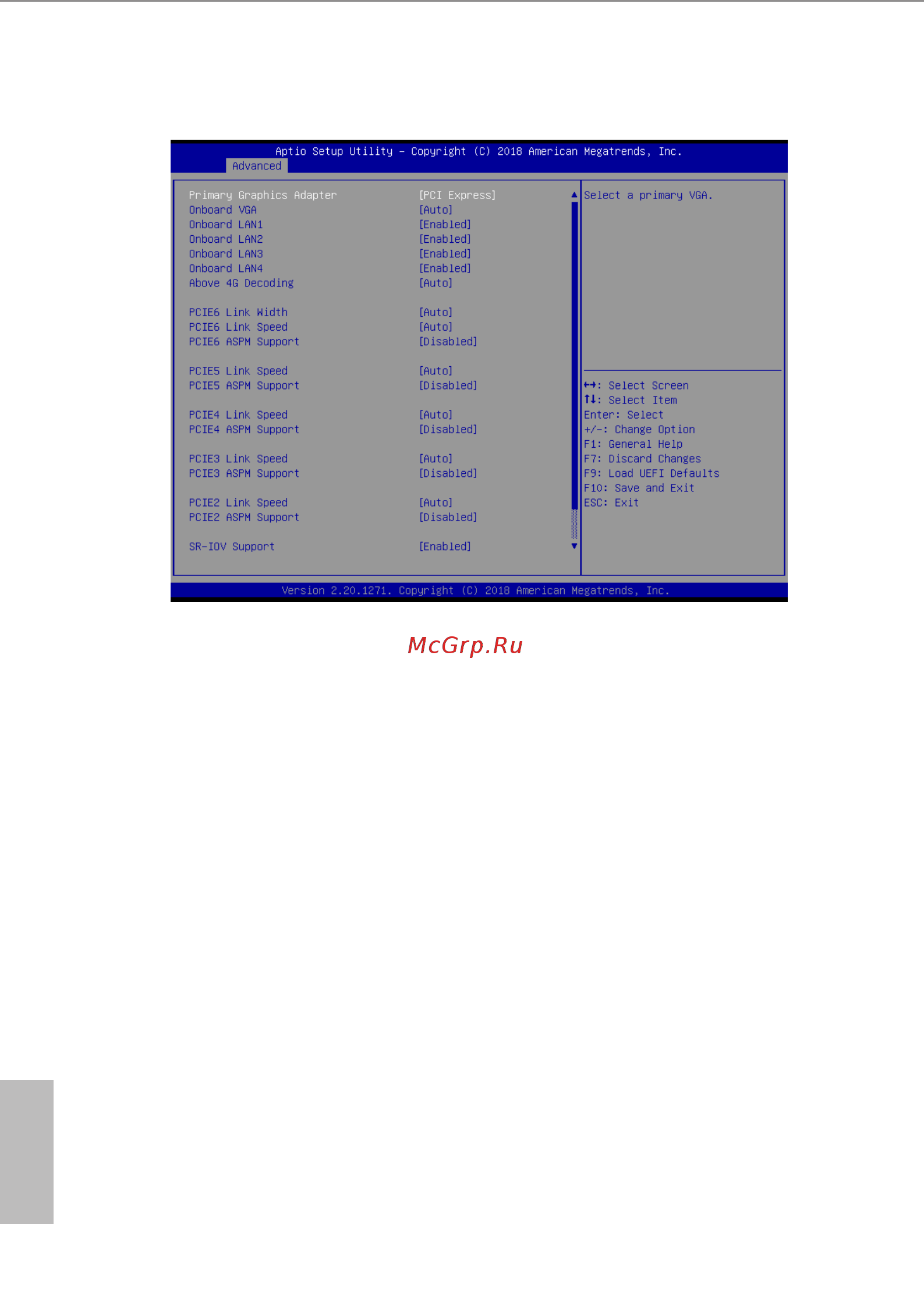

3.3.3 Chipset Conguration
Primary Graphics Adapter
If PCI Express graphics card is installed on the motherboard, you may use this option to
select PCI Express or Onboard as the primary graphics adapter.
Onboard VGA
Use this to enable or disable the Onboard VGA function. e default value is [Auto].
Onboard LAN1
Use this to enable or disable the Onboard LAN1 function. e default value is [Enabled].
Onboard LAN2
Use this to enable or disable the Onboard LAN2 function. e default value is [Enabled].
Onboard LAN3
Use this to enable or disable the Onboard LAN3 function. e default value is [Enabled].
Onboard LAN4
Use this to enable or disable the Onboard LAN4 function. e default value is [Enabled].
Above 4G Decoding
Enable or disable 64bit capable Devices to be decoded in Above 4G Address Space (only if
the system supports 64 bit PCI decoding).
