E3C246D4M-4L / E3C242D4M-4L
24 25
English

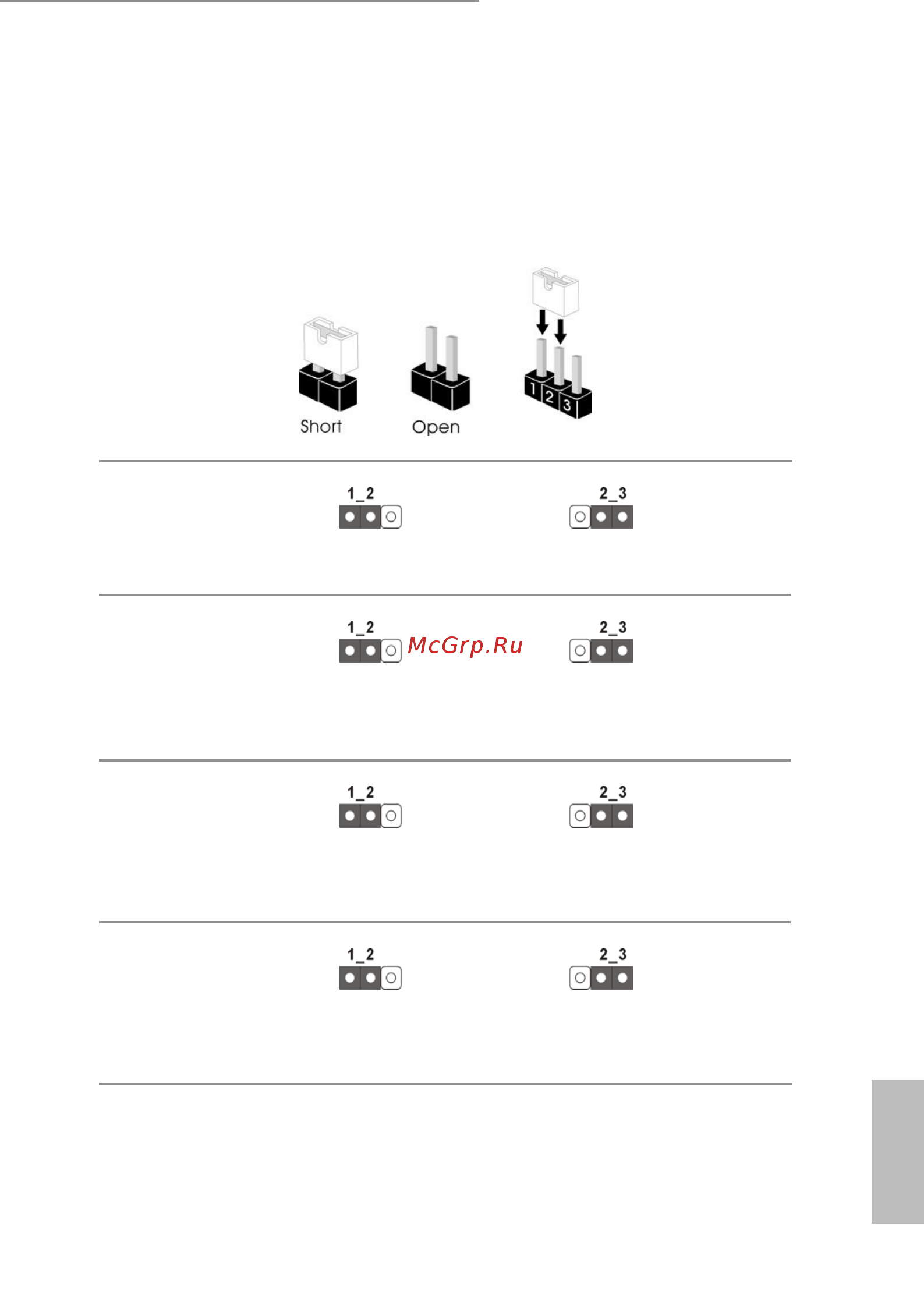

2.7 Jumper Setup
e illustration shows how jumpers are setup. When the jumper cap is placed on
the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper
is “Open”. e illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”
when a jumper cap is placed on these 2 pins.
ME Recovery Jumper
(3-pin ME_RECOVERY1)
Normal Mode (Default)
ME Recovery Mode
CPU PECI Mode Jumper
(3-pin PECI1)
CPU PECI connect to PCH
CPU PECI connect to BMC
(Default)
Flash Descriptor Security
Override Jumper
(3-pin SEC_OR1)
Descriptor Security Over-
ride
Normal Mode (Default)
NCSI Mode Jumper
(3-pin NCSI_SEL1)
NCSI is set to onboard
LAN1 (Default)
NCSI is set to Mezzanine
Card
