Daikin FXL63LVE [20/56] 3 inverter heat recovery systems

• Systems • Introduction

• Introduction

5 Explanation of different Systems

5-3 Inverter heat recovery systems

Simultaneous cooling and heating operation with 1 system

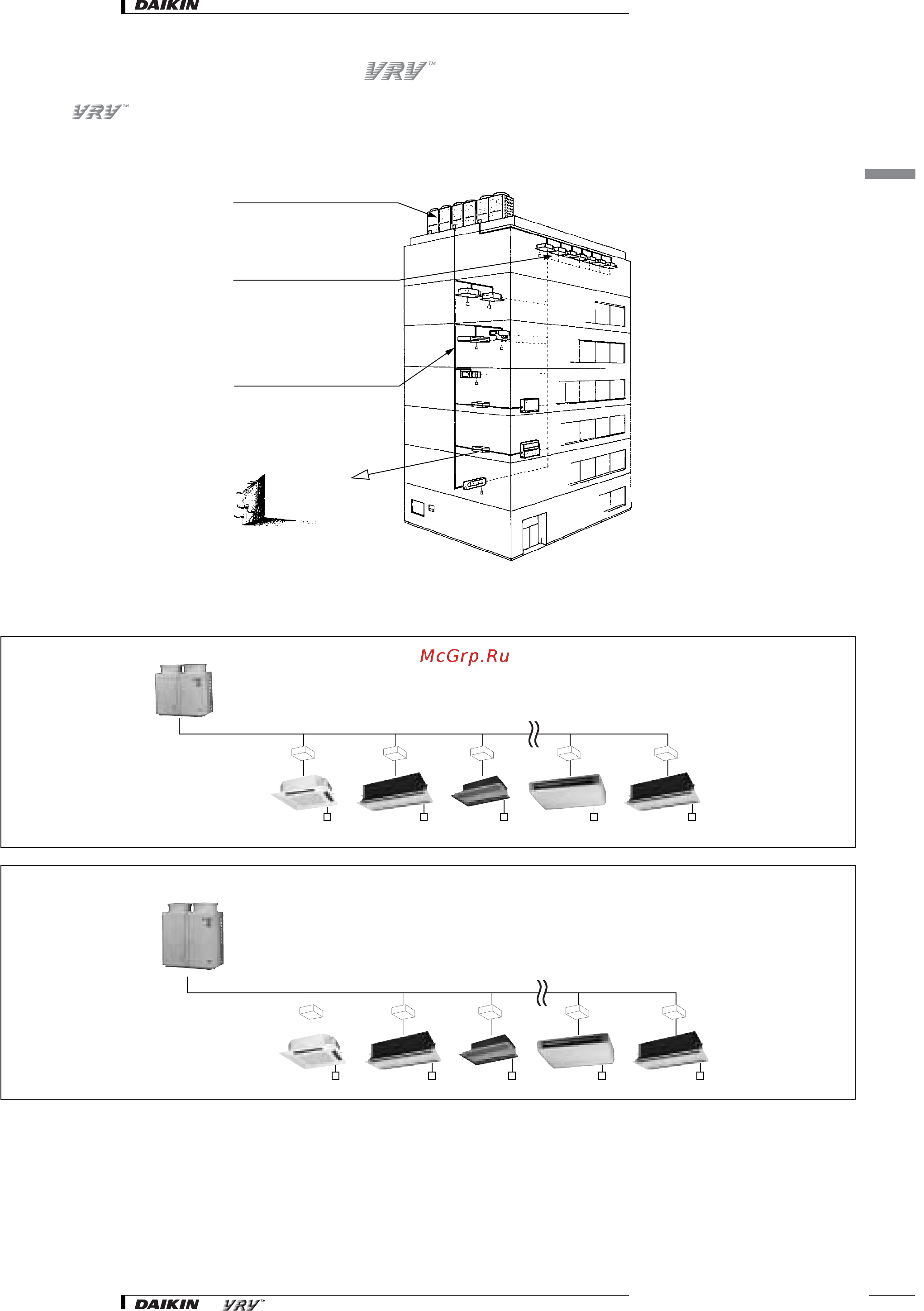

• EXAMPLES OF DIFFERENT ASSEMBLY PATTERN

RSEYP8K: maximum 13 indoor units can be connected

RSEYP10K: maximum 16 indoor units can be connected

Outdoor unit

• Outdoor units can be grouped together in a row

•2 types: 8H

, 10H

Indoor unit

• Up to 16 units can be connected to provide an

operating capacity of between 50% and 130%

•Minimum capacity: 0.8H

REFNET pipe system

• Actual length of refrigerant piping 100m

• Level difference of 50m makes this system

suitable for buildings up to 15 to 16 stories

BS unit

Accessory

BS unit

Remote control

BS unit

Remote control
