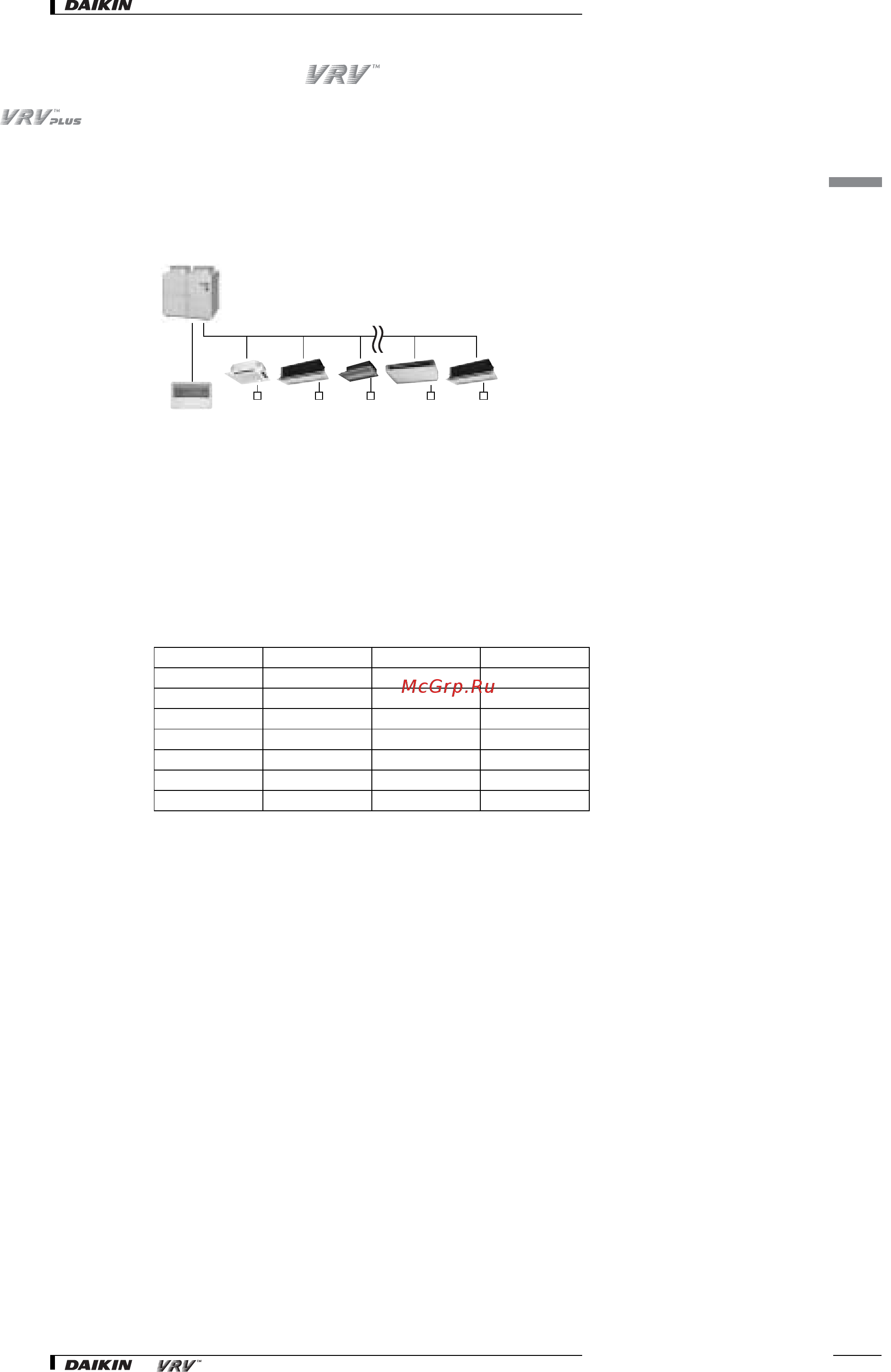

Daikin FXL63LVE [26/56] Explanation of different systems
![Daikin FXL63LVE [26/56] Explanation of different systems](/views2/1697052/page26/bg1a.png)
5
• Systems • Introduction
25
• Introduction
5 Explanation of different Systems
5-4 Inverter heat pump / heat recovery systems
• SUPER WIRING SYSTEM
A Super wiring system is used to enable the shared use of the wiring between the indoor and outdoor units and the centralised remote control. A high-
level central control system can be achieved via a relatively simple wiring operation. Even when retrofitting with a central control system, you only need
to connect the centralised remote control to the outdoor units.
• BACK-UP FUNCTION
Conventional VAV systems or water systems require expensive, bulky standby systems to prevent air conditioning from being shut down when a
problem has occurred. The VRV system conditions the air in each room individually, allowing any possible problems to affect only the immediate system
and not the complete VRV system. If one compressor in the outdoor units of the Plus series should malfunction, the back-up function by means of remote
control will allow emergency operation of another compressor
• REDUCTION IN REFRIGERANT VOLUME COMPARED TO VRV PLUS R-22 UNITS
• REFRIGERANT PIPES with diameter 25.4 mm are changed to diameter 28.6 mm to match European standards.
• FIELD PIPING CONNECTION has been simplified: 6 spots for piping connection instead of 14 for 20HP outdoor unit and 26 for 30HP outdoor unit.
Unit Horsepower Reduction (kg) Reduction (%)
RSXYP16KJ 16 HP 4.6 kg 77%
RSXYP18KJ 18 HP 5.5 kg 75%
RSXYP20KJ 20 HP 6.7 kg 72%
RSXYP24KJ 24 HP 5.2 kg 82%
RSXYP26KJ 26 HP 6.6 kg 78%
RSXYP28KJ 28 HP 7.2 kg 78%
RSXYP30KJ 30 HP 8.8 kg 74%
Outdoor unit
Remote control
Centralised remote control
Indoor unit
