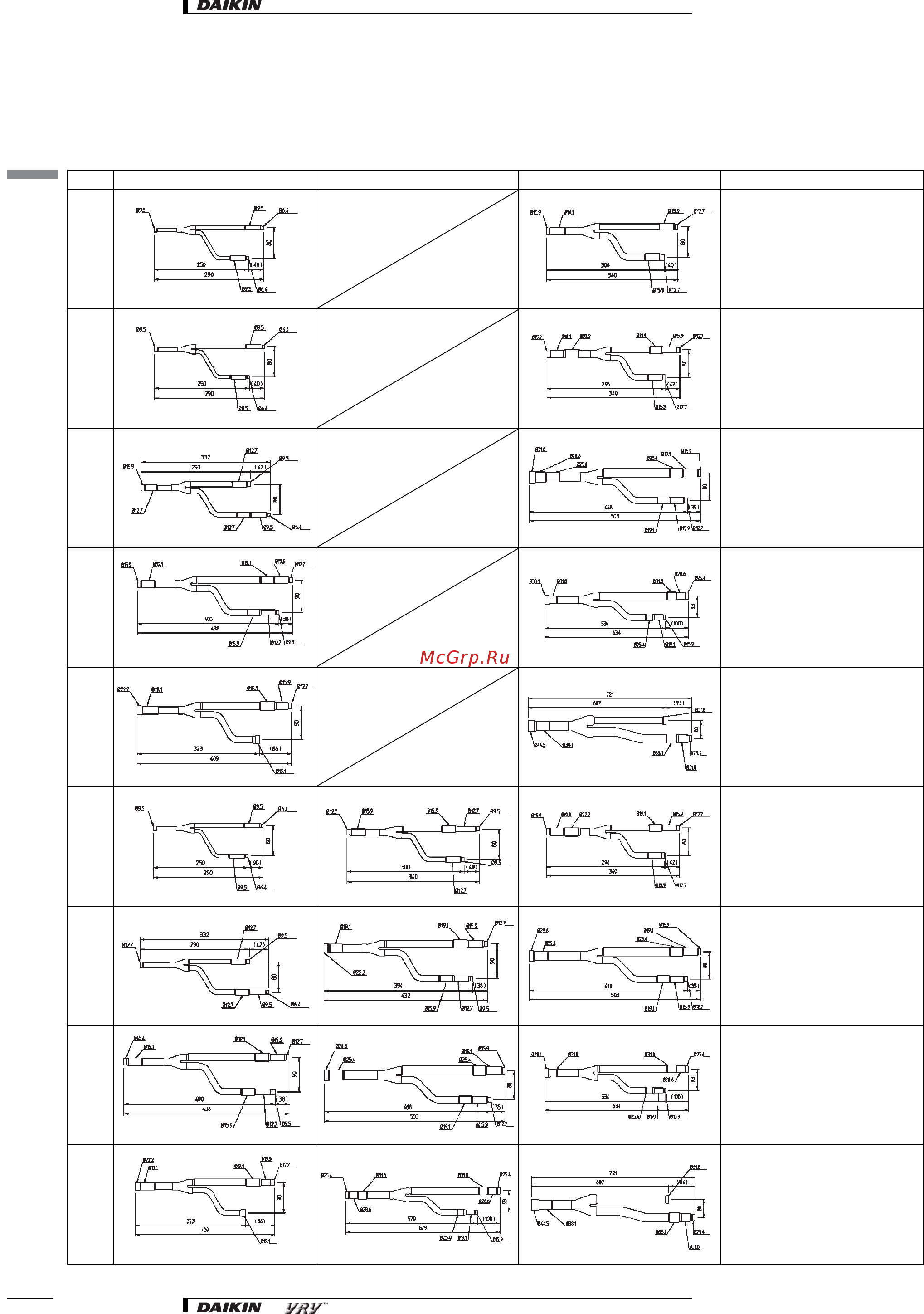

6 Selection procedure
6-5 Refnet pipe system
6-5-1 Unified Refnet joints
Liquid side junction Discharge gas side junction Suction gas side junction Others
KHRP26K11T
–Insulator
–Installation manual
KHRP26K18T
–Insulator
–Installation manual
KHRP26K37T
–Insulator
–Pipe reducer (suction)
ø25.4-ø19.1
ø28.6-ø25.4
–Installation manual
KHRP26K40T
–Insulator
–Pipe reducer (suction)
ø15.9-ø12.7
–Pipe reducer (liquid)
ø9.5-ø6.4
–Installation manual
KHRP26K75T
–Insulator
–Pipe reducers (suction)
ø25.4-ø19.1-ø15.9
ø31.8-ø34.9 (3x)
ø38.1-ø41.3
ø31.8-ø34.9-ø41.3
–Pipe reducers (liquid)
ø19.1-ø15.9-ø12.7
ø12.7-ø9.5-ø6.4
–Installation manual
KHRP25K18T
–Insulator
–Installation manual
KHRP25K20T
–Insulator
–Pipe reducers (suction)
ø25.4-ø19.1
–Pipe reducers (discharge)
ø12.7-ø9.5
ø19.1-ø15.9
–Installation manual
KHRP25K40T
–Insulator
–Pipe reducers (suction)
ø15.9-ø12.7
ø41.3-ø34.9-ø31.8
ø34.9-ø31.8
–Pipe reducers (discharge)
ø12.7-ø9.5
–Pipe reducers (liquid)
ø9.5-ø6.4
–Installation manual
KHRP25K75T
–Insulator
–Pipe reducers (suction)
ø15.9-ø12.7
ø25.4-ø19.1-ø15.9-ø12.7
ø31.8-ø34.9 (3x)
ø38.1-ø41.3
ø31.8-ø34.9-ø41.3
–Pipe reducers (discharge)
ø12.7-ø9.5
ø19.1-ø15.9
ø31.8-ø25.4
–Pipe reducers (liqid)
ø19.1-ø15.9-ø12.7
ø12.7-ø9.5-ø6.4
–Installation manual
1TW21559-11C
Inlet
Outlet
Outlet
Inlet
Outlet
Outlet
Inlet
Outlet
Outlet
Inlet
Outlet
Outlet
Inlet
Outlet
Outlet
Inlet
Outlet
Outlet
Inlet
Outlet
Outlet
Inlet
Outlet
Outlet
Inlet
Outle
t
Outlet
Inlet
Outlet
Outlet
Inlet
Outlet
Outlet
Inlet
Outlet
Outlet
Inlet
Outlet
Outlet
Inlet
Outlet
Outlet
Inlet
Outlet
Outlet
Inlet
Outlet
Outlet
Outlet
Outlet
Inlet
Outlet
Outlet
Inlet
Outlet
Outlet
Outlet
Outlet
Inlet
Outlet
Outle
t
Inlet
Outlet
Outlet
