Griven GRAPH-i-DOT [11/12] Installation on a rope by using optional accessory al4708
![Griven GRAPH-i-DOT [11/12] Installation on a rope by using optional accessory al4708](/views2/1700066/page11/bgb.png)
AL4700 Graph-i-Dot - Rev. 1.00
page 11 of 12
551073
28 mm
M4 X 12 screws

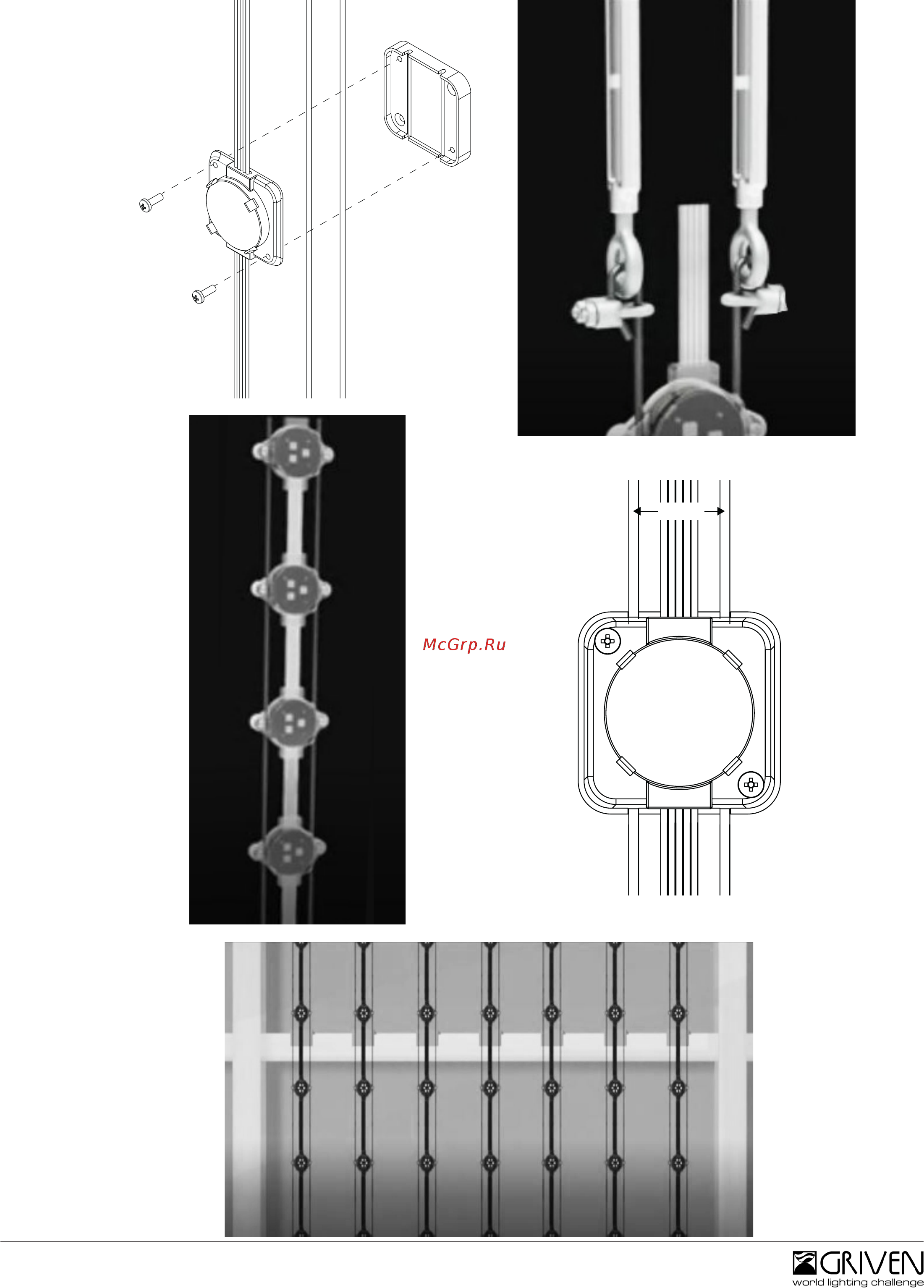

Installation on a rope by using optional accessory AL4708
28 mm
M4 X 12 screws
