AL4700 Graph-i-Dot - Rev. 1.00
page 7 of 12
551073
SILICONE RTV

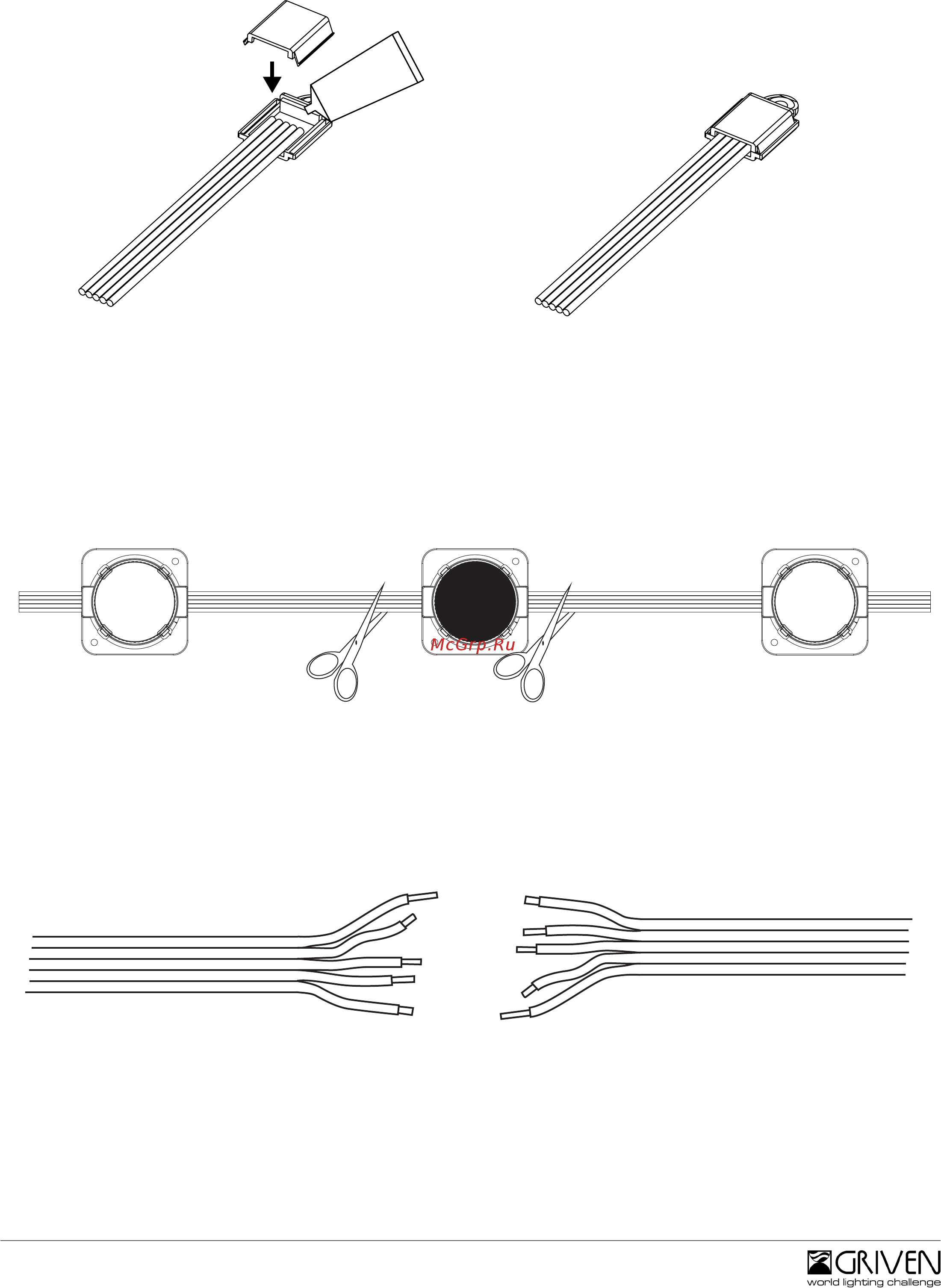

Insert the end of the at cable inside the lower half of the terminal enclosure, ll with silicone RTV and then close the enclosu-
re with the other half. Let it dry before xing it on to a surface.
Replacing a faulty Graph-i-Dot ( KIT AL4705 ).
GND
A
B
AD
+VCC
GND
A
B
AD
+VCC
GND
A
B
AD
+VCC
GND
A
B
AD
+VCC
Remove the faulty Dot, saving the more cable lenght possible.
Split the cables and strip the ends of the cables. WARNING ! in order to respect the original distance between the single
dots we reccomend to carefully take the adequate measurements and eventually correct cable lenghts before proceeding in
making the joints.
