200W Constant Power Mode LED Driver
XLG-200 series
File Name:XLG-200-SPEC 2019-07-04

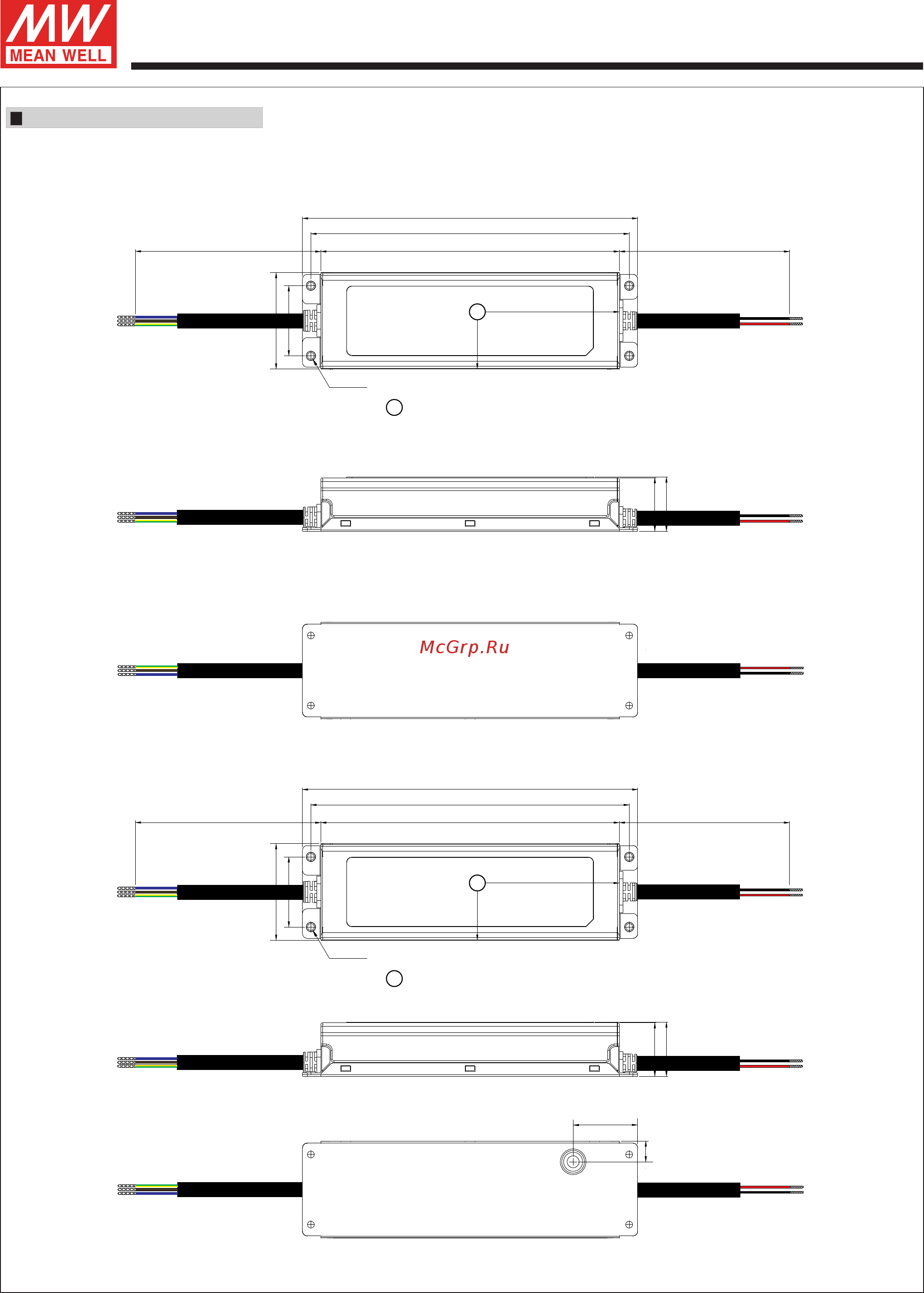

MECHANICAL SPECIFICATION
Case No.:244A Unit:mm
※ Blank-Type
• : Max. Case Temperature
tc
188
199
175
300±20
300±20
45.8
63
35.5
35
4-ψ4.5
SJOW 17AWGx3C
2
&H05RN-F 3x1.0mm
Vo-(Black)
Vo+(Red)
AC/L(Brown)
AC/N(Blue)
FG(Green/Yellow)
tc
85
35
2
SJOW 17AWGx2C&05RN-F 2x1.0mm (for 24V,H,L)
SJOW 14AWGx2C(for 12V)
※ A-Type
• : Max. Case Temperature
tc
188
199
175
300±20
300±20
45.8
63
35.5
35
4-ψ4.5
SJOW 17AWGx3C
2
&H05RN-F 3x1.0mm
Vo-(Black)
Vo+(Red)
AC/L(Brown)
AC/N(Blue)
FG(Green/Yellow)
tc
85
35
46
15
Io ADJ.
2
SJOW 17AWGx2C&05RN-F 2x1.0mm (for 24V,H,L)
SJOW 14AWGx2C(for 12V)
