Chapter 2: Hardware installaon | 17

B150GT3

2.8 LEDs

LEDs

Below LEDs are controlled by RACING GT program. Please refer to Chapter 3.3 for more detail

soware seng.

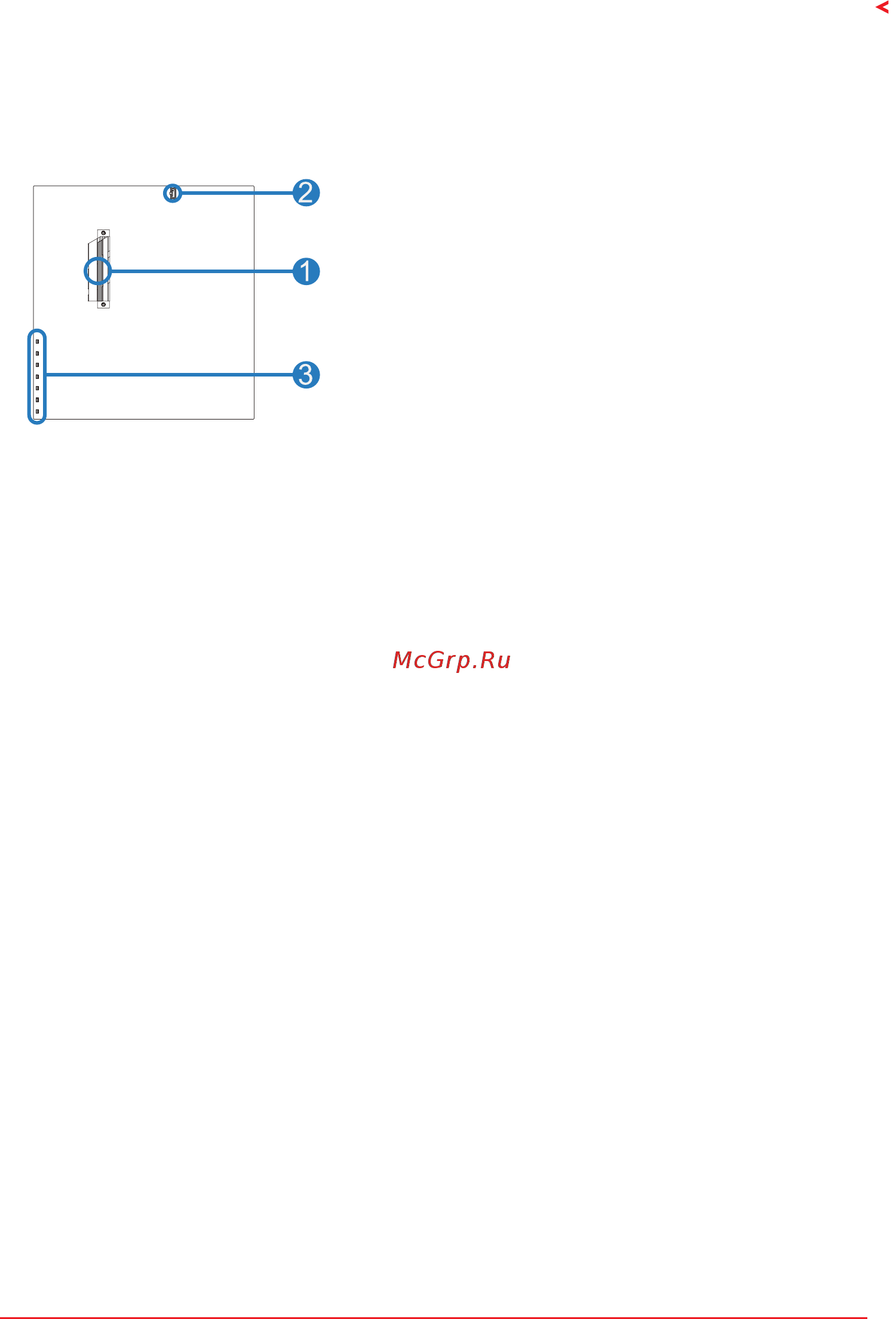

1. MOSFET Heatsink LED

2. RGB LED Strip Header (LED Strip is oponal)

3. on-board LEDs (x7)
