Biostar X470GT8 Версия 5.x [10/94] Connect cooling fans
![Biostar X470GT8 Версия 5.x [10/94] Connect cooling fans](/views2/1707925/page10/bga.png)

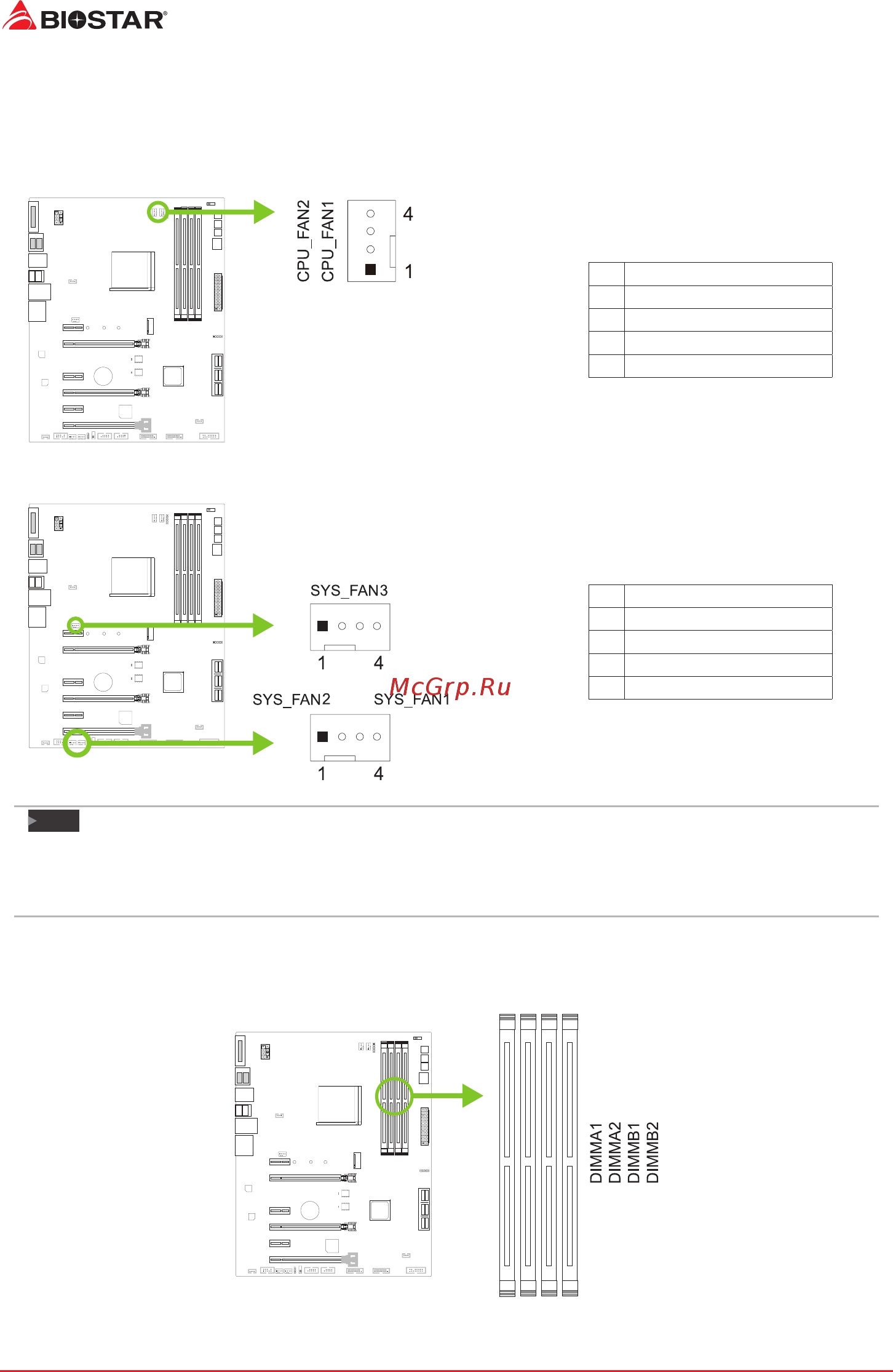

10 | Chapter 2: Hardware installaon
2.3 Connect Cooling Fans
These fan headers support cooling-fans built in the computer. The fan cable and connector
may be dierent according to the fan manufacturer.
CPU_FAN1/2: CPU Fan Header
Pin Assignment
1 Ground
2 +12V
3 FAN RPM rate sense
4 Smart Fan Control (By Fan)
SYS_FAN1/2/3: System Fan Header
Pin Assignment
1 Ground
2 +12V
3 FAN RPM rate sense
4 Smart Fan Control (By Fan)
Note
»
CPU_FAN1/2,SYS_FAN1/2/3support4-pinand3-pinheadconnectors.Whenconnecngwithwires
ontoconnectors,pleasenotethattheredwireistheposiveandshouldbeconnectedtopin#2,and
theblackwireisGroundandshouldbeconnectedtopin#1(GND).
2.4 Install System Memory
DDR4 Modules
