Biostar X470GT8 Версия 5.x [20/94] Indicators

20 | Chapter 2: Hardware installaon

Indicators

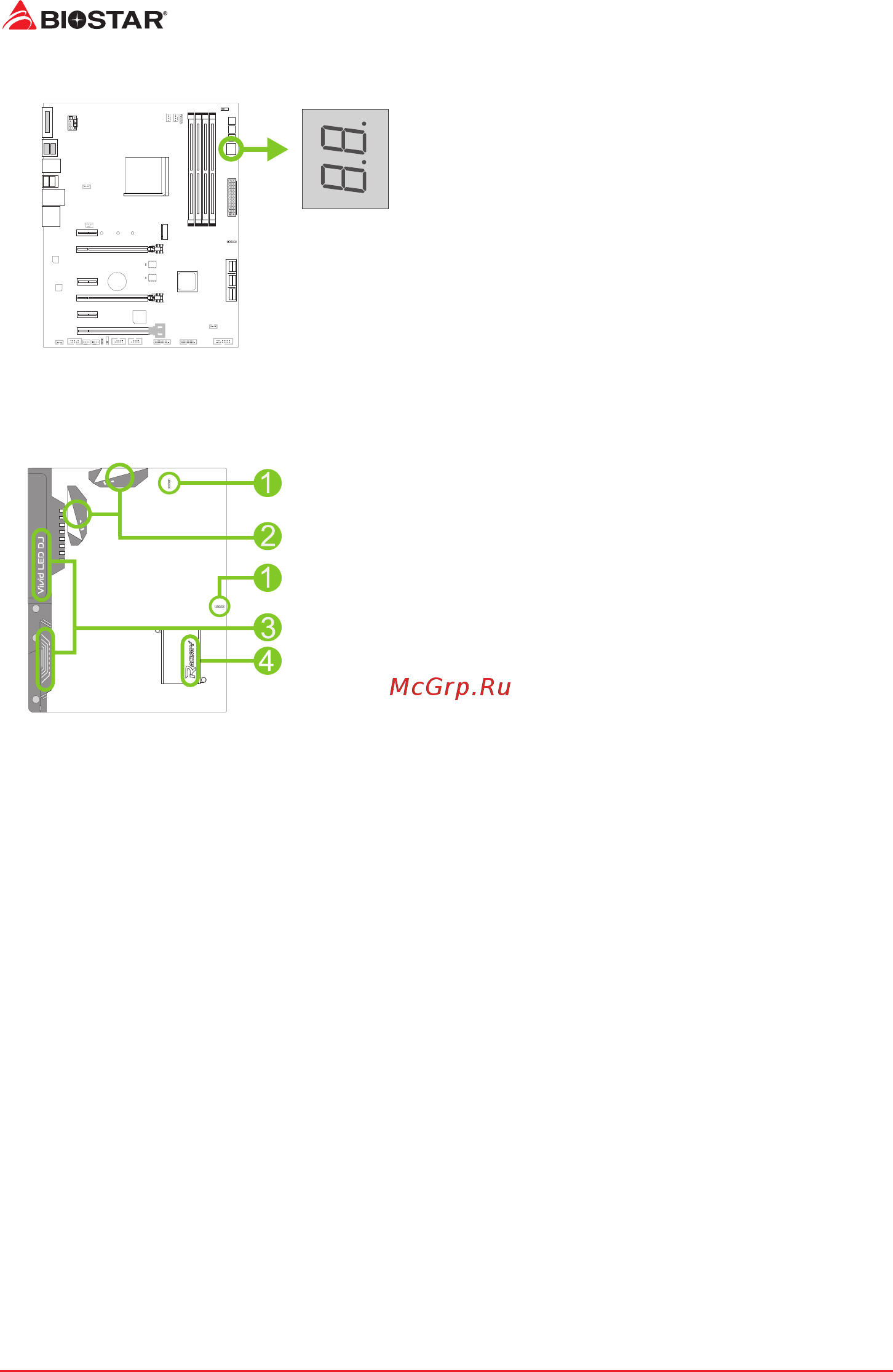

BIOS POST Code Indicator: The indicator will

show POST Code while boong. Please refer

to Chapter 4.3 for all the BIOS POST codes.

LEDs

Below LEDs are controlled by RACING GT program. Please refer to Chapter 3.3 for more detail

soware seng.

1. RGB LED Header

2. MOSFET Heatsink LED

3. VIVID LED ARMOR

4. Southbridge Heatsink LED
