Biostar X470GT8 Версия 5.x [55/94] 4 后置面板接口
![Biostar X470GT8 Версия 5.x [55/94] 4 后置面板接口](/views2/1707925/page55/bg37.png)
第一章: 主板介绍 | 5
X470GT8

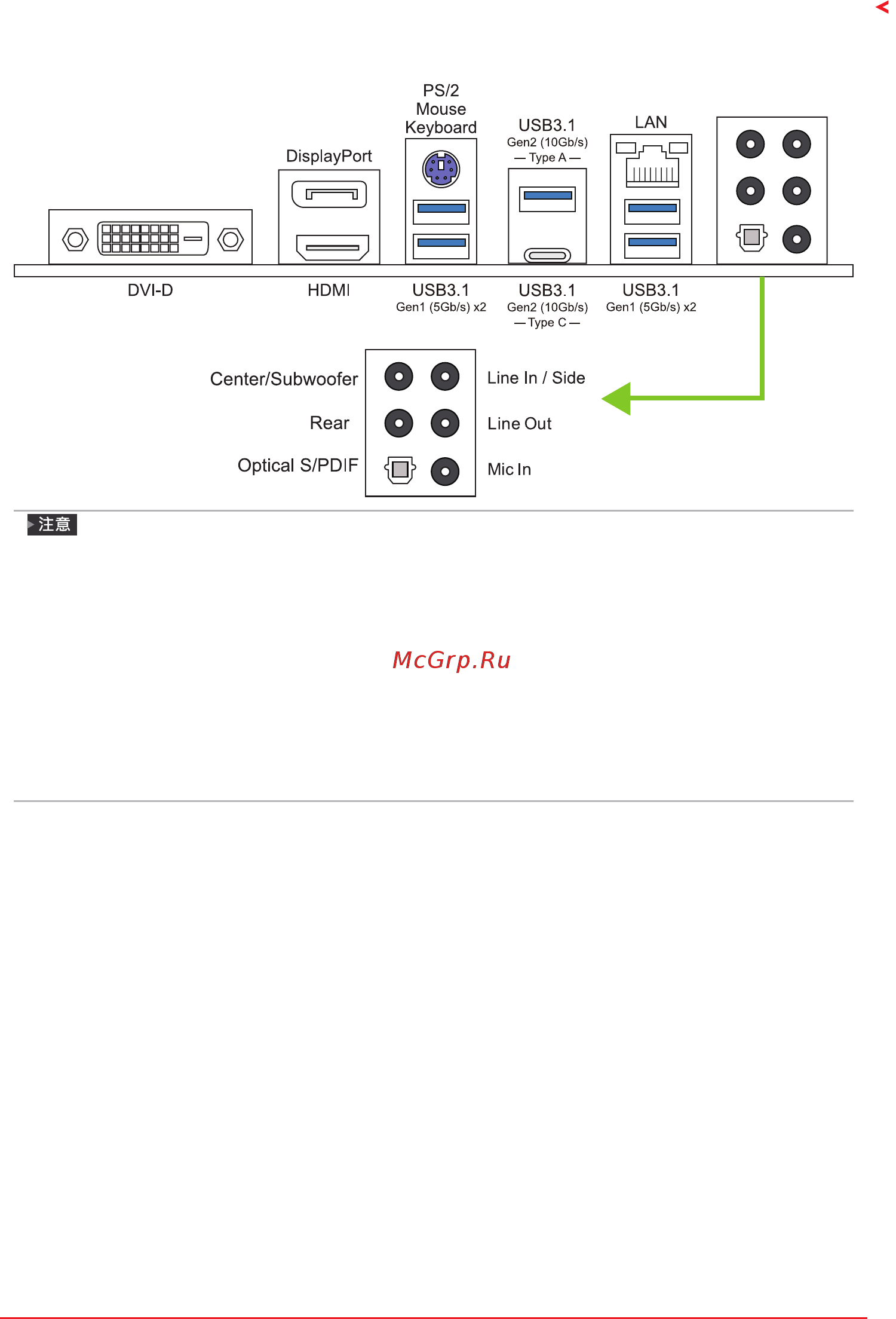

1�4 后置面板接口
»
带集成显卡的AMD系列处理器才支持DVI-D / HDMI / DP输出端口。
»
由于音频芯片支持高保真音频规格，各音频插座的功能由软件定义，上面所列出的各音频插孔的
输入/输出功能表示其默认设置。当连接外部麦克风到音频接口时，请使用Line In 和Mic In 插
孔。
»
最 高 分 辨 率：
DVI-D: 1920 x 1200 @60Hz
DP: 4096 x 2160 @60Hz
HDMI: 4096 x 2160 @64Hz，符合HDMI 2.0规范
»
Athlon 200GE 处理器不支持DP端口信号。
»
Line In / Side的扬声器配置选项：Line In仅限于5.1声道 / Side仅限于7.1声道。
»
当使用前置HD音频插孔并插入耳机/麦克风时，后置声音将自动禁用。
