30 | Chapter 3: UEFI BIOS & Soware

GT Touch

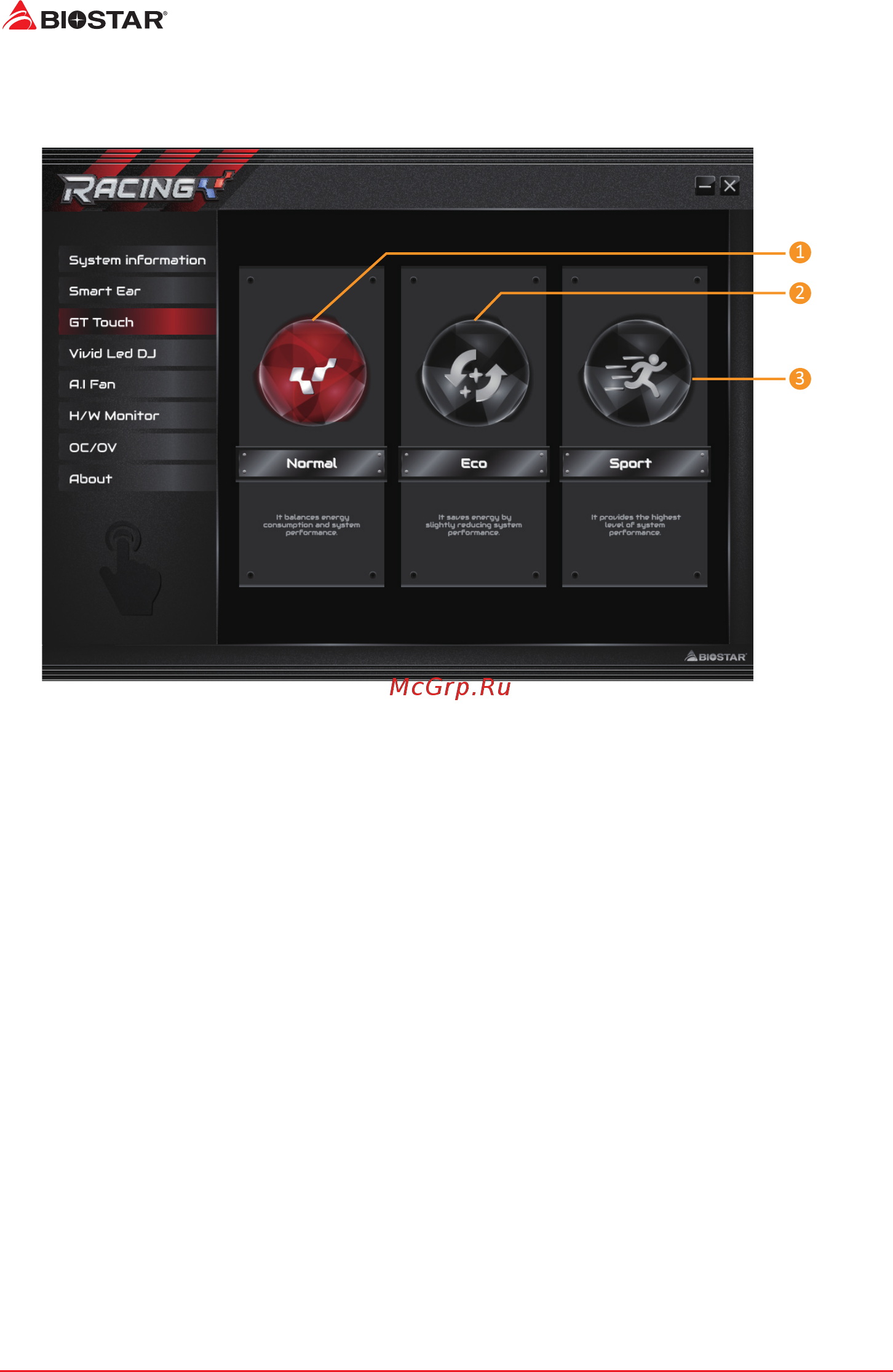

GT Touch allows you to adjust Normal, ECO and Sport mode when running RACING GT EVO

program in Windows environment.

1. Normal Mode: It balances energy consumpon and system performance.

2. ECO Mode: It saves energy by slightly reducing system performance.

3. Sport Mode: It provides the highest level of system performance.
