SYS
Green
Lights to indicate the system is working.
LNK/ACT
Green
Blink to indicate that the switch is actively sending or receiving data over that
port.
Speed
Orange
Lights to indicate the link through that port is successfully established.
WGSW-5240:
LED Color Function
PWR
Green
Lights to indicate that the Switch is powered on.
SYS
Green
Lights to indicate the system is working.
LNK/ACT
Green
Lights to indicate the port is linked.
Blinks to indicate that the switch is actively sending or receiving data over that
port.
2.1.4 Switch Rear Panel
Figure 2-2 shows the rear panel of the switch

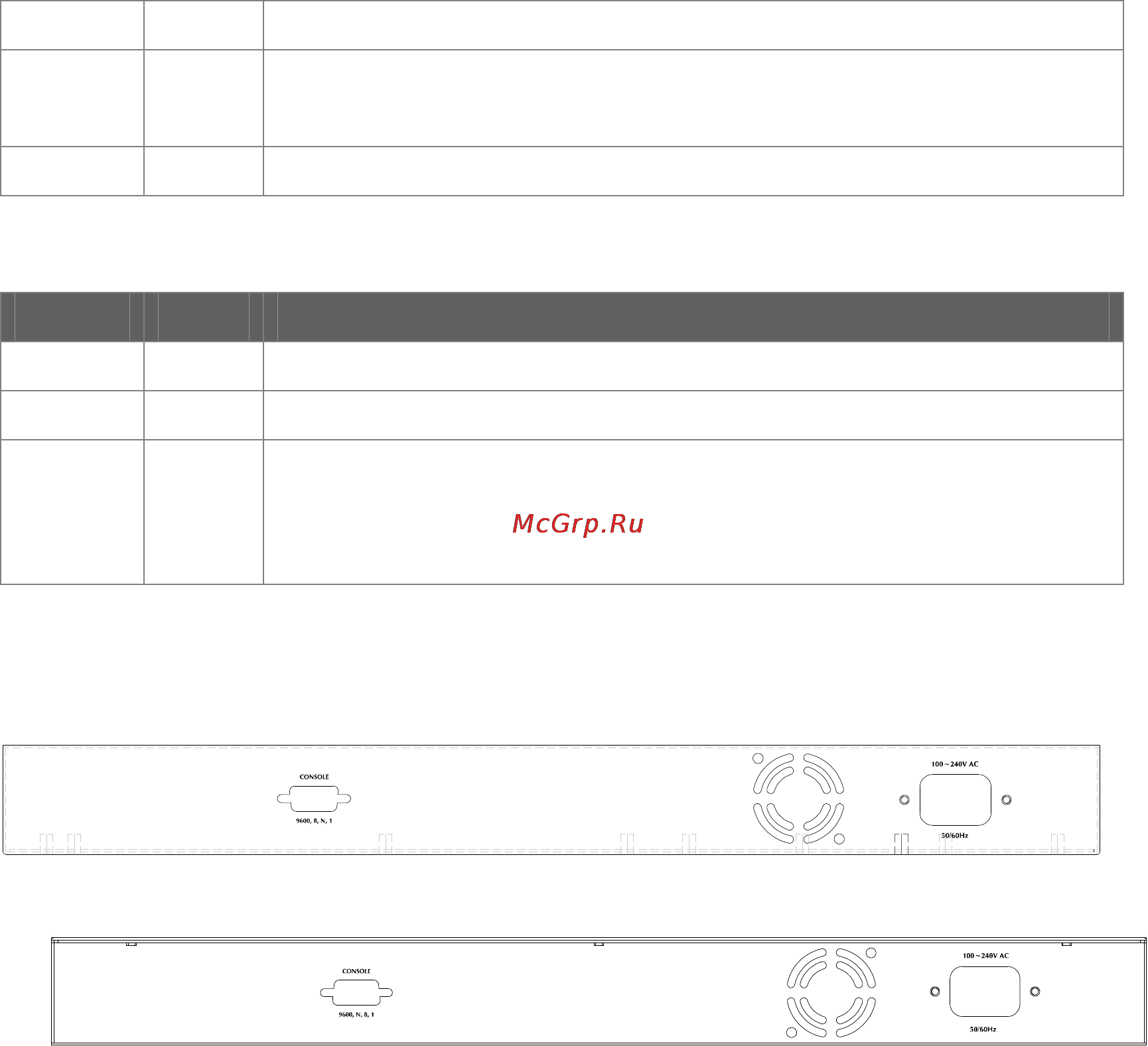

Figure 2-3 WGSW-2840 rear panel
Figure 2-4 WGSW-5240 rear panel
Power Notice:
1. The device is a power-required device, it means, it will not work till it is powered. If your networks should
active all the time, please consider using UPS (Uninterrupted Power Supply) for your device. It will prevent
you from network data loss or network downtime.
2. In some area, installing a surge suppression device may also help to protect your switch from being damaged
by unregulated surge or current to the Switch or the power adapter.
2.2 Install the Switch
This section describes how to install the Ethernet Switch and make connections to it. Please read the following
topics and perform the procedures in the order being presented.
2.2.1 Desktop Installation
To install the Switch on desktop or shelf, please follows these steps:
Step1: Attach the rubber feet to the recessed areas on the bottom of the switch.
