Planet WGSW-2840 [102/104] Q vlan multi untagged vlan setting sample 3
![Planet WGSW-2840 [102/104] Q vlan multi untagged vlan setting sample 3](/views2/1070803/page102/bg66.png)

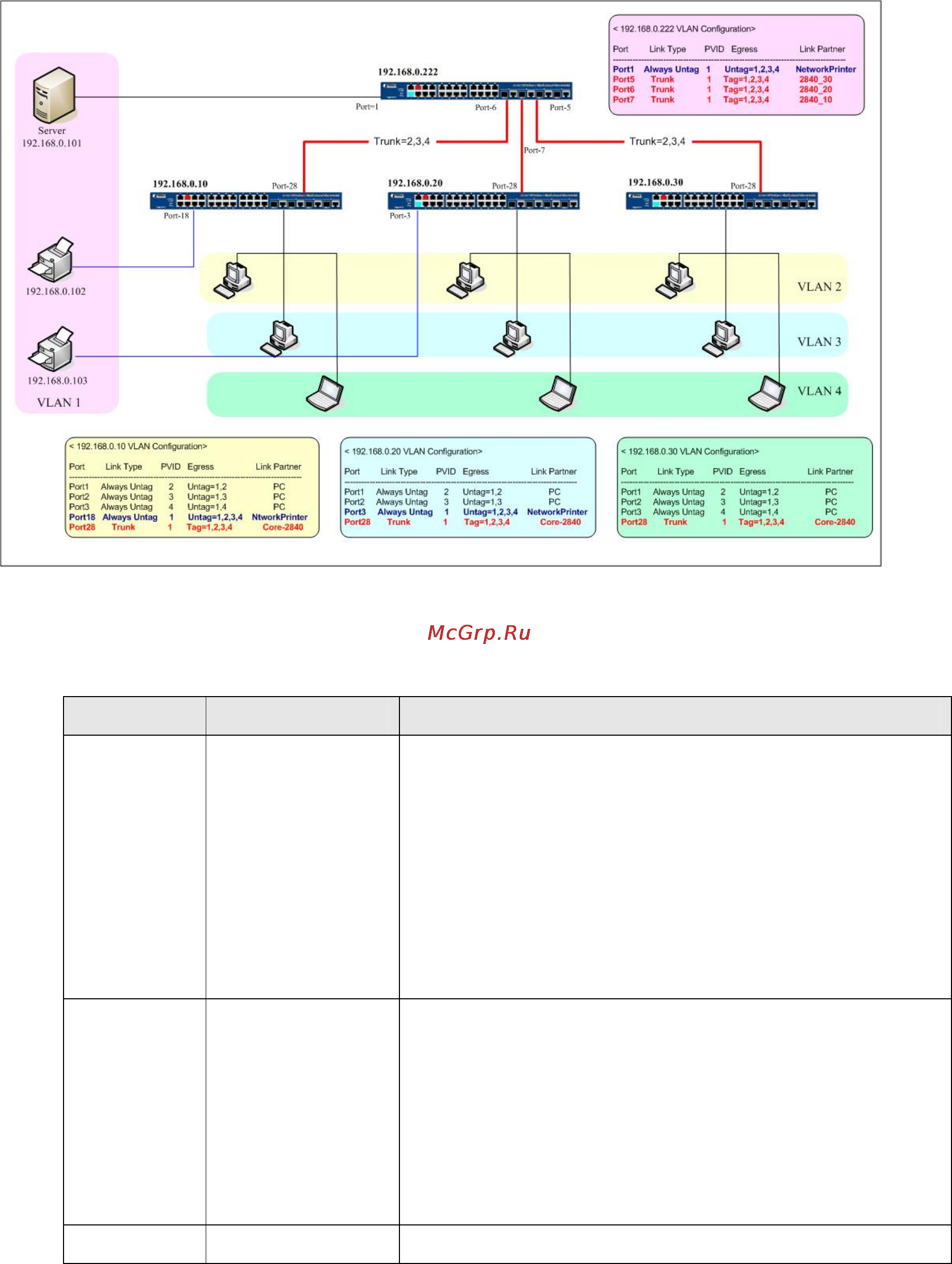

802.1Q VLAN Multi-Untagged VLAN setting sample 3
VLAN Group Membership
VLAN ID VLAN Define Major Member
VLAN 1 Public VLAN WGSW-2840_220
WGSW-2840_10
WGSW-2840_20
WGSW-2840_30
Server
Network_Printer_1
Network_Printer_2
VLAN 2 Client connect to Ports those be assigned to VLAN 2 ,at
[192.168.0.10] switch
Client connect to Ports those be assigned to VLAN 2 ,at
[192.168.0.20] switch
Client connect to Ports those be assigned to VLAN 2 ,at
[192.168.0.30] switch
VLAN 3 Client connect to Ports those be assigned to VLAN 3 ,at
