7. APPENDIX-B
802.1Q VLAN Multi-Untagged VLAN setting sample 1
The version V.1.4.27 of WGSW-2840 had added the multiple untagged VLAN function on a port. The function
could be applied at if the members of two or more different VLAN groups all have to access the same
server/AP/Printer. But the two VLAN groups are separated and can’t access to each other. The graphic in Figure
7-1 appears.

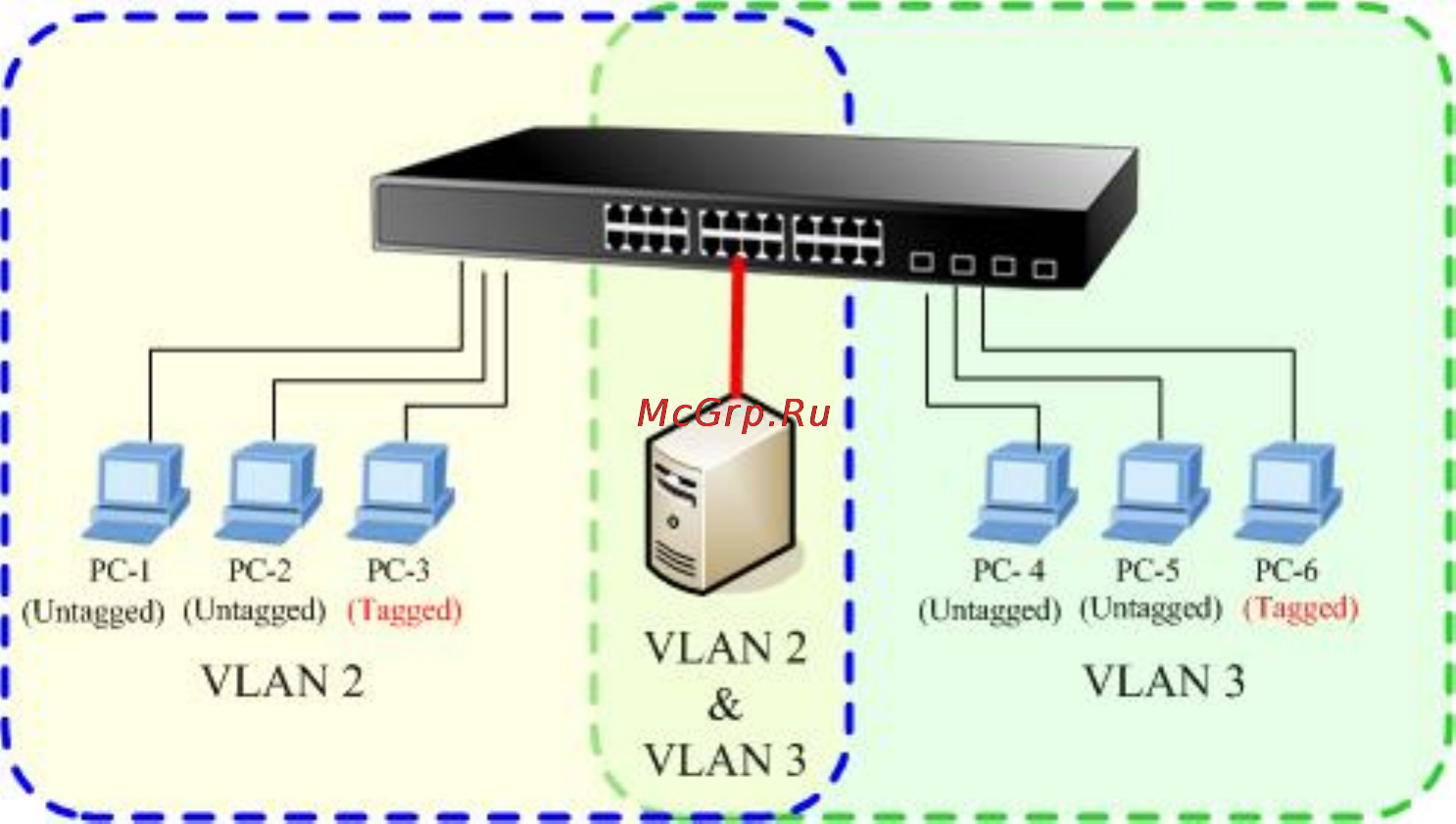

Figure 7-1 Overlap VLAN graphic
The next will be a configure sample- how to setup the WGSW-2840 802.1Q VLAN with a multiple untagged port.
1. At the menu bar ,click “Security” > “ VLAN”
2. After the VLAN configuration page appear, select “802.1Q VALN“ and clink “OK” to apply. Then the following
screen in Figure 7-2 appears.
