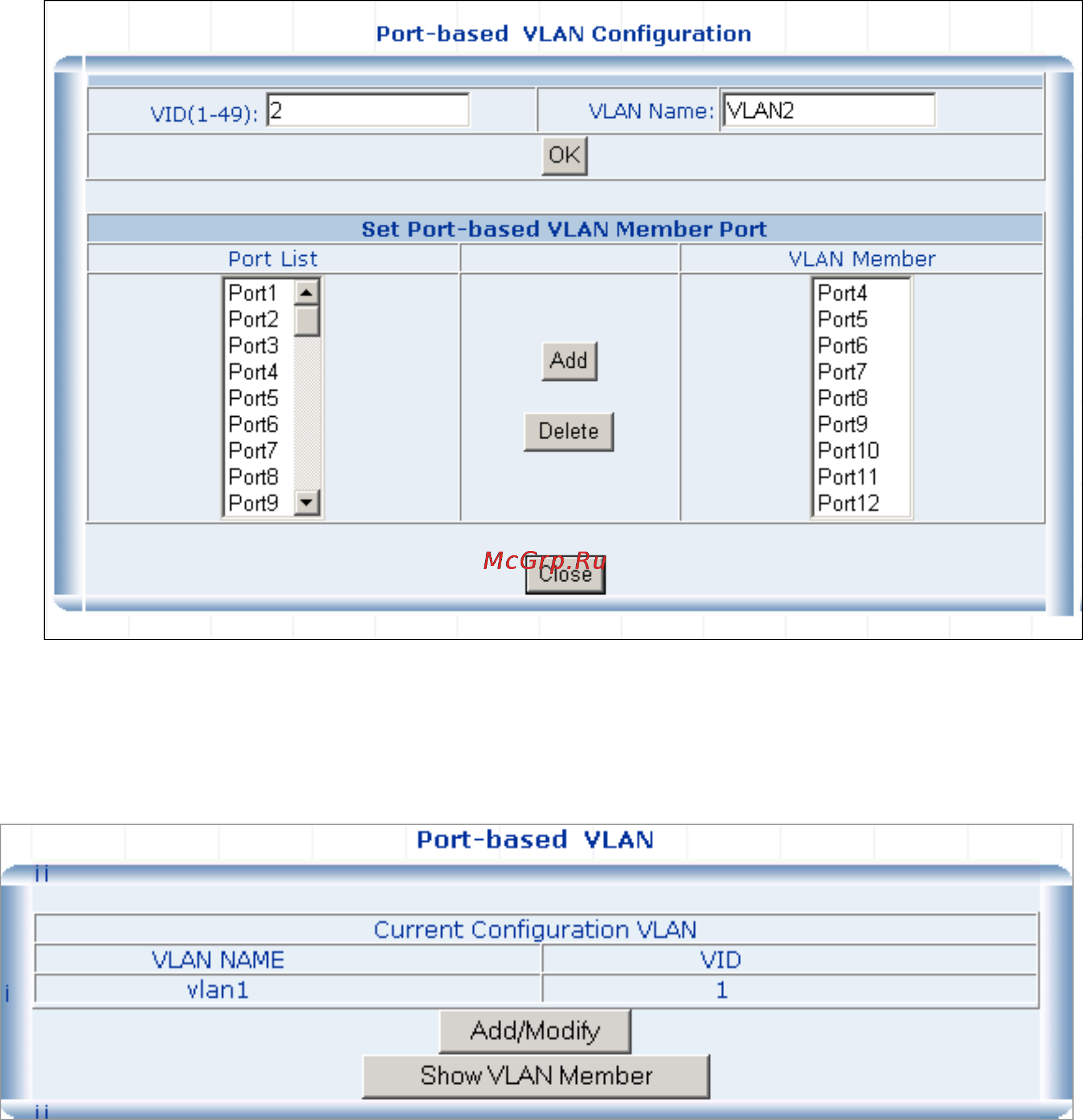

4. Click the “OK” button to add the VLAN.

5. Select the ports in the Port List field and click on the Add button to add the member ports to the VLAN. The

selected VLAN member then shows in the VLAN Member field.

6. Click on the “Close” button and back to the Port-based VLAN main page.

The “Show VLAN Member” button is to list the valid VLANs. You can also remove the added VALN by click on

this button.

802.1Q VLAN Configuration

There are up to 256 configurable VLAN groups. By default when 802.1Q is enabled, all ports on the switch belong

to default VLAN (VID 1). The default VLAN cannot be deleted.

Understand nomenclature of the Switch

Tagging and Untagging

Every port on an 802.1Q compliant switch can be configured as tagging or untagging.

。 Tagging: Ports with tagging enabled will put the VID number, priority and other VLAN information into the

header of all packets that flow into those ports. If a packet has previously been tagged, the port will not alter

the packet, thus keeping the VLAN information intact. The VLAN information in the tag can then be used by
