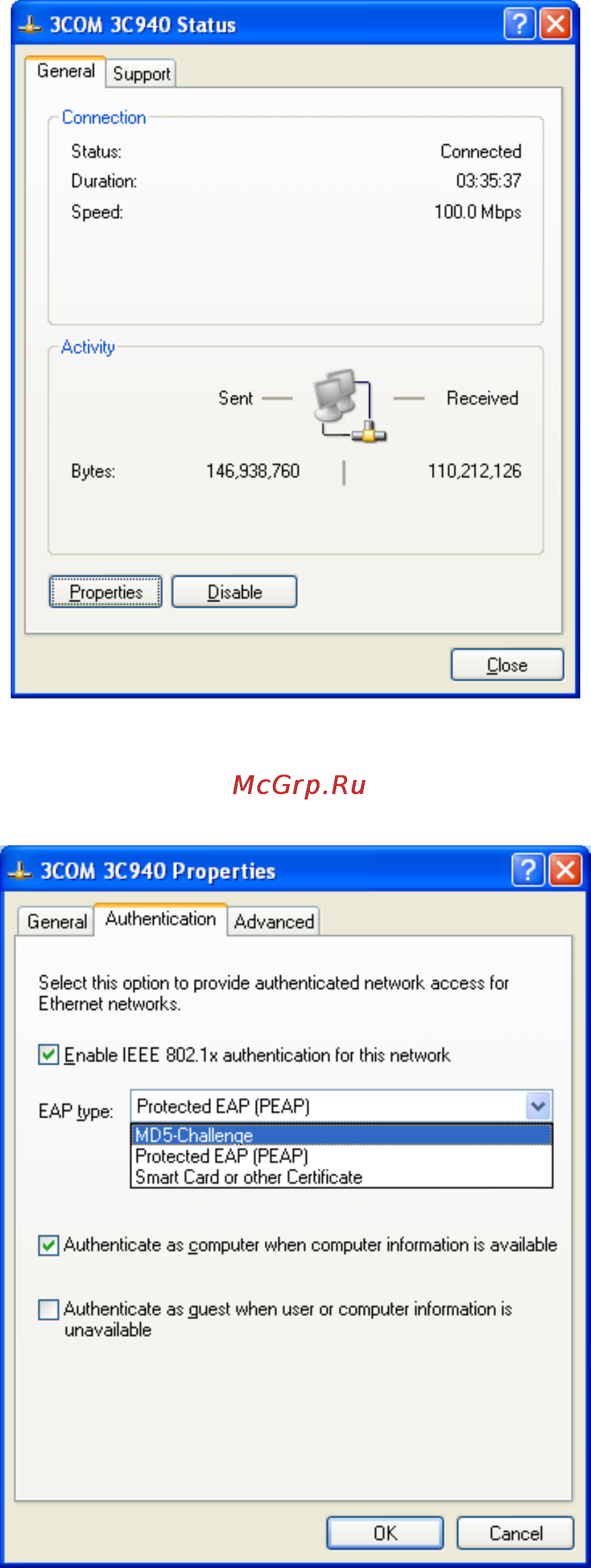

4. Select “Authentication” tab.
5. Select “Enable network access control using IEEE 802.1X” to enable 802.1x authentication.
6. Select “MD-5 Challenge” from the drop-down list box for EAP type.
7. Click “OK”.
8. When client has associated with WGSW-2840/5240, a user authentication notice appears in system tray.
Click on the notice to continue.
