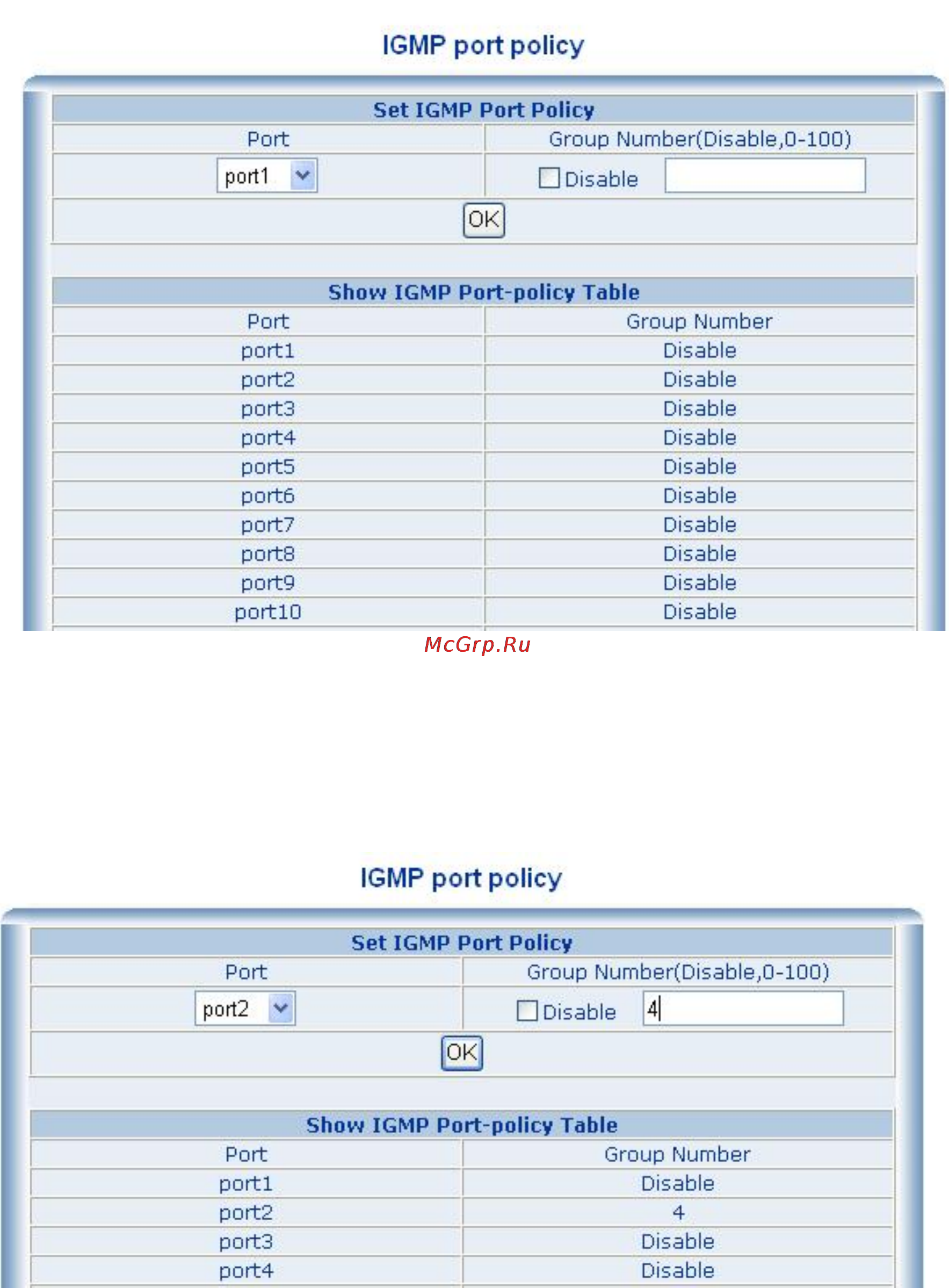

Configure Sample:
1. Select the Port field in the Set IGMP Port Policy Table, in this case, Port-2 be selected.
2. Fill the accepted number in the Group Number field. ( For this case, 4 multicast groups are allowed)
3. Click on the “OK” button to save.
4. The worksatation that connect to Port-2 start to send IGMP Join/Report packets.
5. Select “IGMP Snooping Configuration” page to show the Multicast Group Table.
