TRACO POWER TPP 150-128A-J Datasheet онлайн
AC/DC Medical Power Supply
TPP 150A-J Series, 150 Watt
•

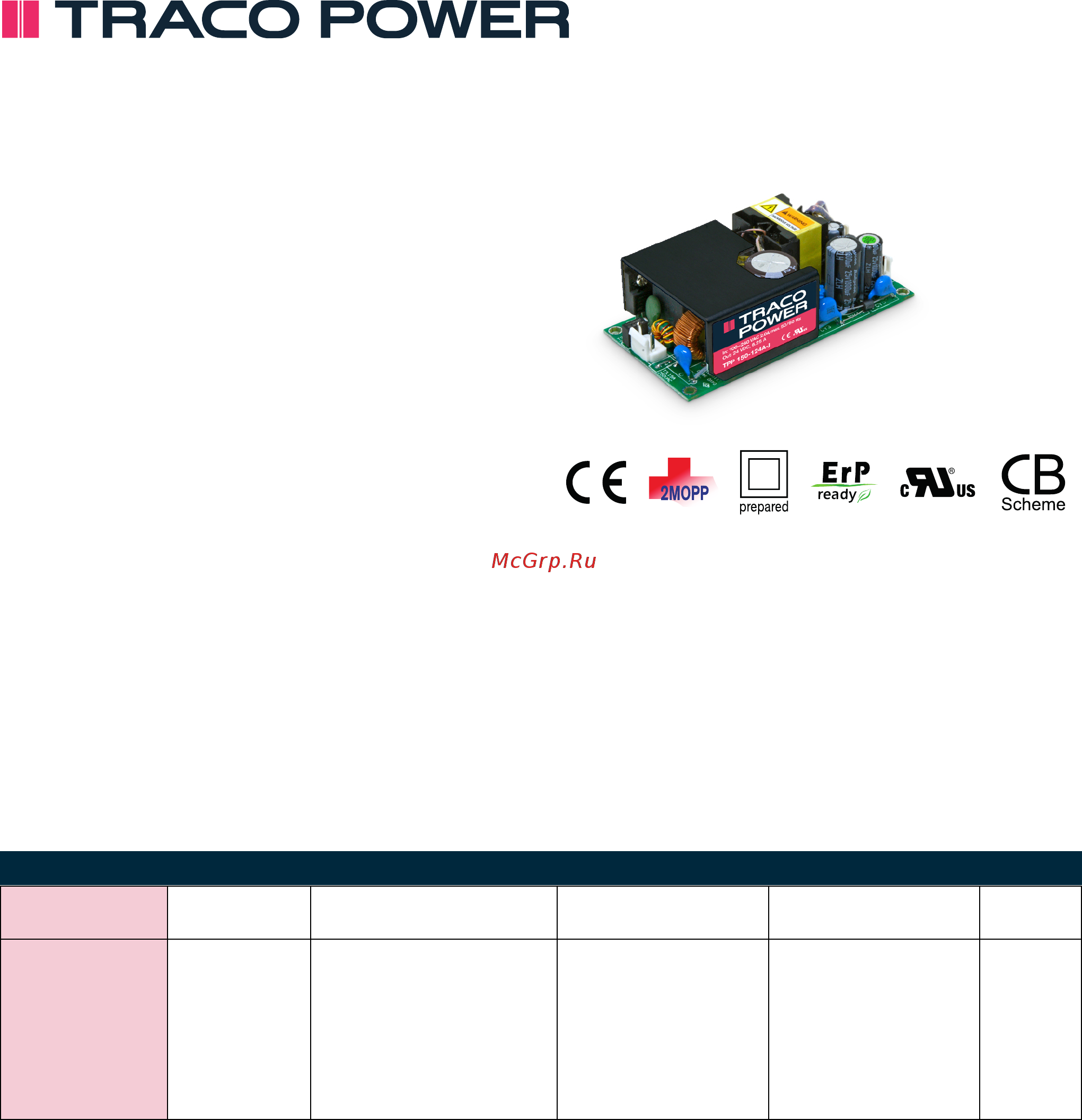

Open frame 150 W power supply with
JST connection in 2.0” x 4.0” package
•
Certification according to IEC/EN/ES
60601-1 3rd edition for 2 x MOPP
•
Low leakage current <100 µA rated for
BF applications
•
Risk management process according to
ISO 14971 incl. risk management file
•
Acceptance criteria for electronic
assemblies acc. to IPC-A-610 Level 3
•
Active power factor correction >0.95
•
Protection class l and ll prepared
•
Operating up to 5000 m altitude
•
Ready to meet ErP directive, <0.3 W no
load power consumption
•
5-year product warranty
IEC 60601-1
ES 60601-1
UL 60950-1
The TPP 150A-J series of 150 Watt AC/DC open frame power supplies feature
a reinforced double I/O isolation system according to latest medical safety
standards (60601-1 3rd edition, 2 x MOPP). The earth leakage current is below
100 µA which makes the units suitable for BF (body floating) applications. The
excellent efficiency of up to 92% allows a high power density for the standard
2.0” x 4.0” packaging format. The full load operating temperature range is
–25°C to +55°C while it goes up to 80°C with 50% load derating. The EMC
characteristic is dedicated for applications in industrial and medical fields. High
reliability is provided by the use of industrial quality grade components and an
excellent thermal management. It makes the products an ideal solution for
medical devices and for demanding safety and space critical applications.
Models
Order Code
Output Power
max.
Output Voltage
nom. (adjustable)
Output Current max.
(Forced air cooling)
Output Current max.
(Natural convection)
Efficiency
typ.
TPP 150-112A-J
150 W
12 VDC (10.8 - 13.2 VDC)
12'500 mA
8'340 mA
91 %
TPP 150-115A-J
15 VDC (13.5 - 16.5 VDC)
10'000 mA
7'340 mA
92 %
TPP 150-124A-J
24 VDC (21.6 - 26.4 VDC)
6'250 mA
4'590 mA
92 %
TPP 150-128A-J
28 VDC (25.2 - 30.8 VDC)
5'360 mA
3'930 mA
92 %
TPP 150-136A-J
36 VDC (32.4 - 39.6 VDC)
4'170 mA
3'060 mA
92 %
TPP 150-148A-J
48 VDC (43.2 - 52.8 VDC)
3'130 mA
2'090 mA
92 %
www.tracopower.com
June 4, 2019
Page 1 / 4
