Environmental Compliance
- Reach
www.tracopower.com/info/reach-declaration.pdf
- RoHS
www.tracopower.com/info/rohs-declaration.pdf
Supporting Documents
Overview Link (for additional Documents)
www.tracopower.com/overview/tpp150a-j

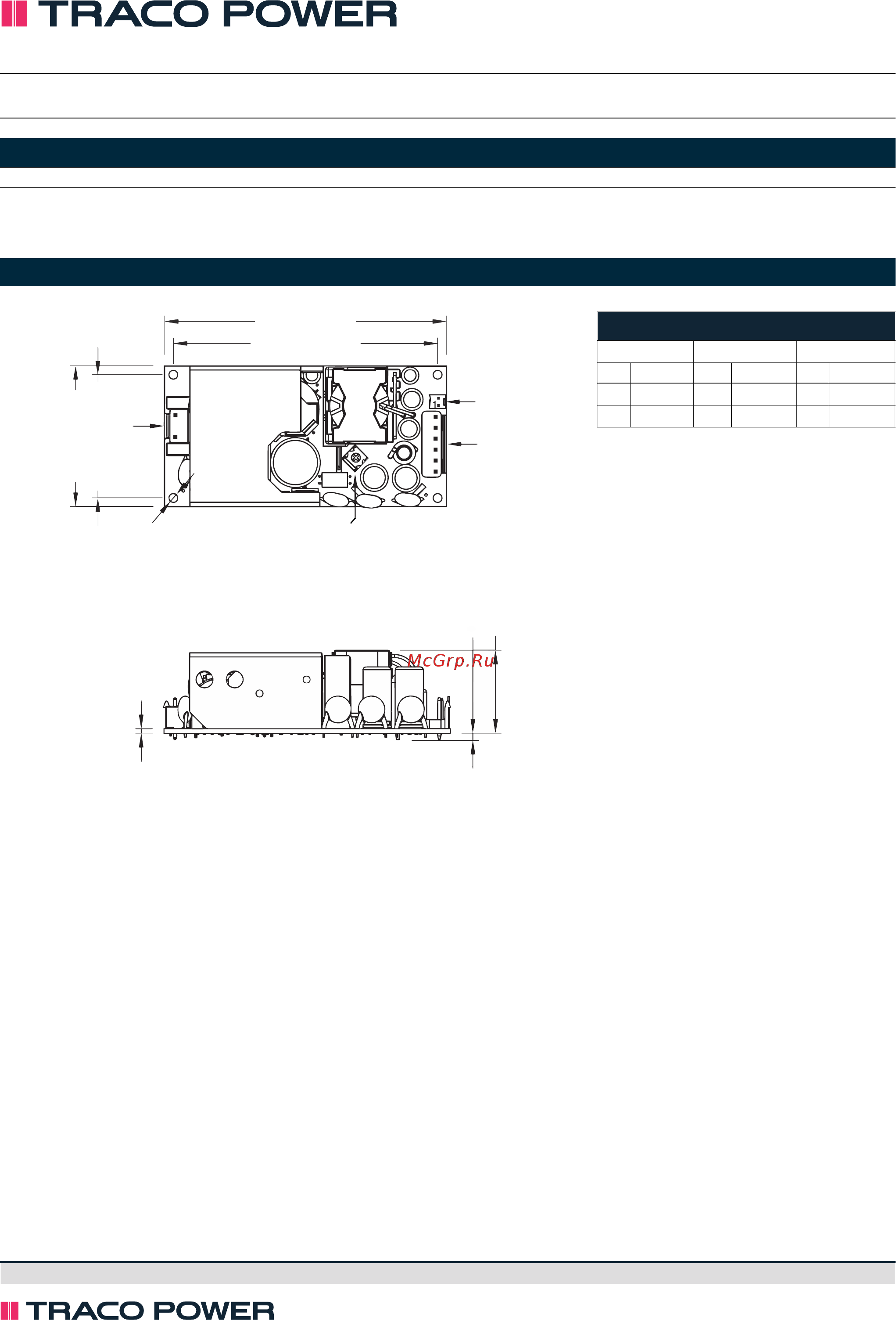

Outline Dimensions
TPP 150A-J Series, 150 Watt
101.6 (4.00)
95.20 (3.748)
Voltage adjustment
CON2 CON3
1
6
CON1
1
3
50.8 (2.00)
44.45 (1.750)
Ø 3.
2
(0.13)
1.6 (0.06)
2.5 (0.10) max.
29.5 (1.16)
TOP VIEW
FRONT VIEW
Each one of the 4 screw holes can be used
as a PE connection for CLASS I application.
Dimension in mm, () = inch
Tolerances: x.x ±0.50 (±0.02)
x.xx ±0.25 (±0.01)
Pin connectors
Input (CON1) Output (CON2) Fan (CON3)
Pin Function Pin* Function Pin Function
1
Line
1-3
–Vout 1 –Fan
3
Neutral
4-6
+Vout 2 +Fan
*Terminal rated for 7 A max.
(at higher current connection has to be split)
CON1: JST series
mates with JST crimp terminal: SVH-21T-P1.1
and terminal housing: VHR-3N
CON2: JST series
mates with JST crimp terminal: SVH-21T-P1.1
and terminal housing: VHR-6N
CON3: Molex series
mates with Molex crimp terminals: 2759
and Molex housing: 22-01-1022
© Copyright 2019 Traco Electronic AG Specifications can be changed without notice.
www.tracopower.com
Rev. June 4, 2019
Page 4 / 4
