Biostar TB250-BTC Версия 6.x [10/63] Connect cooling fans

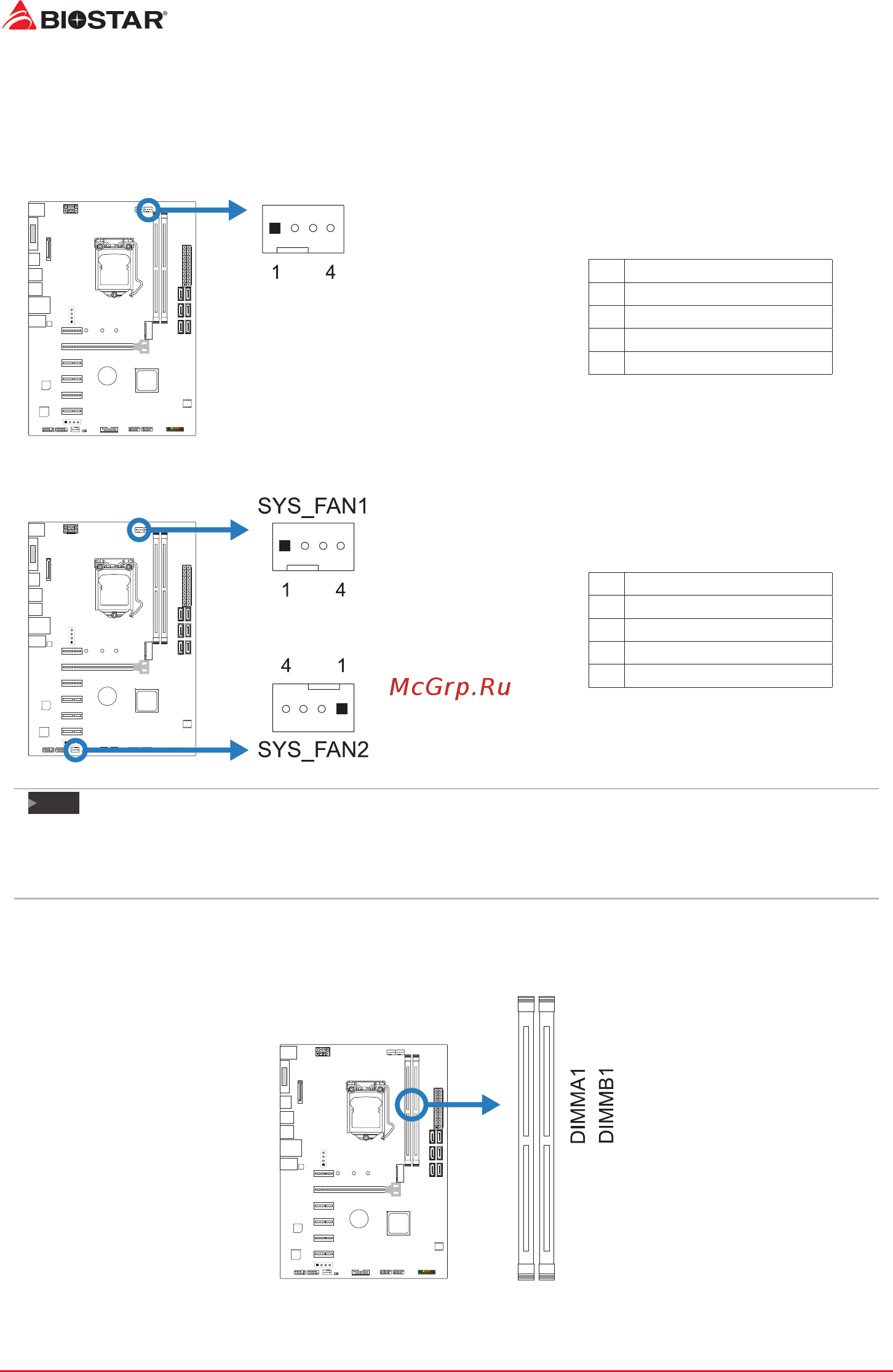

![Biostar TB250-BTC Версия 6.x [10/63] Connect cooling fans](/views2/1708951/page10/bga.png)
10 | Chapter 2: Hardware Installaon
2.3 Connect Cooling Fans
These fan headers support cooling-fans built in the computer. The fan cable and connector
may be dierent according to the fan manufacturer.
CPU_FAN1: CPU Fan Header
Pin Assignment
1 Ground
2 +12V
3 FAN RPM rate sense
4 Smart Fan Control (By Fan)
SYS_FAN1/ SYS_FAN2: System Fan Header
Pin Assignment
1 Ground
2 +12V
3 FAN RPM rate sense
4 Smart Fan Control (By Fan)
Note
»
CPU_FAN1,SYS_FAN1&SYS_FAN2support4-pinand3-pinheadconnectors.Whenconnecng
withwiresontoconnectors,pleasenotethattheredwireistheposiveandshouldbeconnectedto
pin#2,andtheblackwireisGroundandshouldbeconnectedtopin#1(GND).
2.4 Install System Memory
DDR4 Modules
