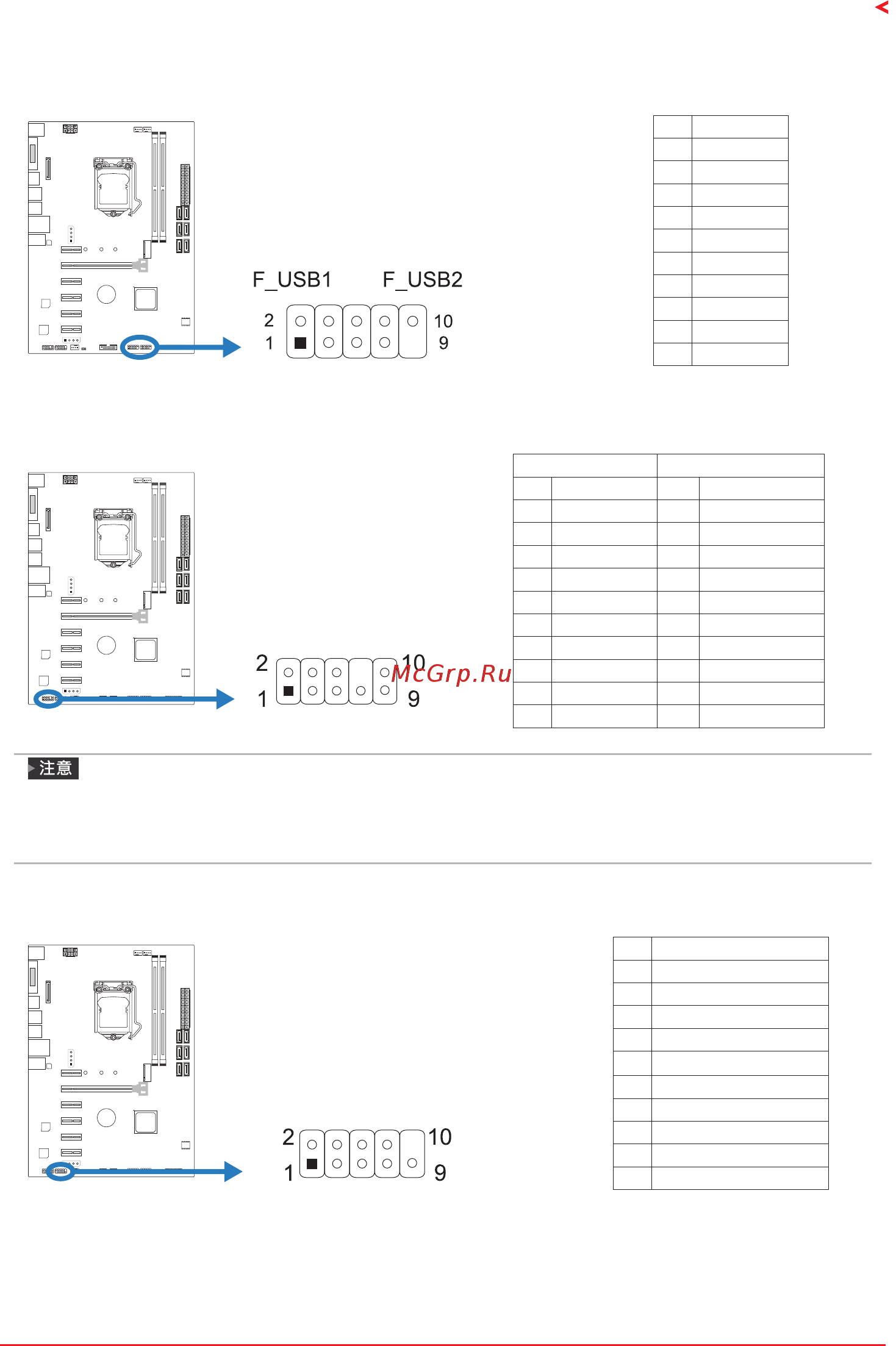

第二章: 硬件安装 | 17
TB250-BTC
F_USB1/2: 前置面板USB 2�0接头
PC前置面板支持附加的USB数据线，也可连接即插即用外围设备。
针 定义
1 +5V (fused)
2 +5V (fused)
3 USB-
4 USB-
5 USB+
6 USB+
7 接地
8 接地
9 Key
10 NC
F_AUDIO1: 前置面板音频接头
此接头可连接音频输出数据线，支持HD(高清)音频和AC’97。
HD Audio AC’97
针 定义 针 定义
1 Mic Left in 1 Mic In
2 接地 2 接地
3 Mic Right in 3 Mic Power
4 GPIO 4 Audio Power
5 Right line in 5 RT Line Out
6 Jack Sense 6 RT Line Out
7 Front Sense 7 Reserved
8 Key 8 Key
9 Left line in 9 LFT Line Out
10 Jack Sense 10 LFT Line Out
»
建议您连接前置高清音频插孔，享用主板高清音频功能。
»
如果要连接AC’97前置音频输出数据线，请关闭”前置面板插孔检测功能” 。此功能在系统音
频 工 具 中可 见。
COM1: 串行端口
此主板有一串行端口，可连接至RS-232端口。
针 定义
1 Carrier detect
2 Received data
3 Transmitted data
4 Data terminal ready
5 Signal ground
6 Data set ready
7 Request to send
8 Clear to send
9 Ring indicator
10 Key
