2.1 Install Central Processing Unit (CPU)

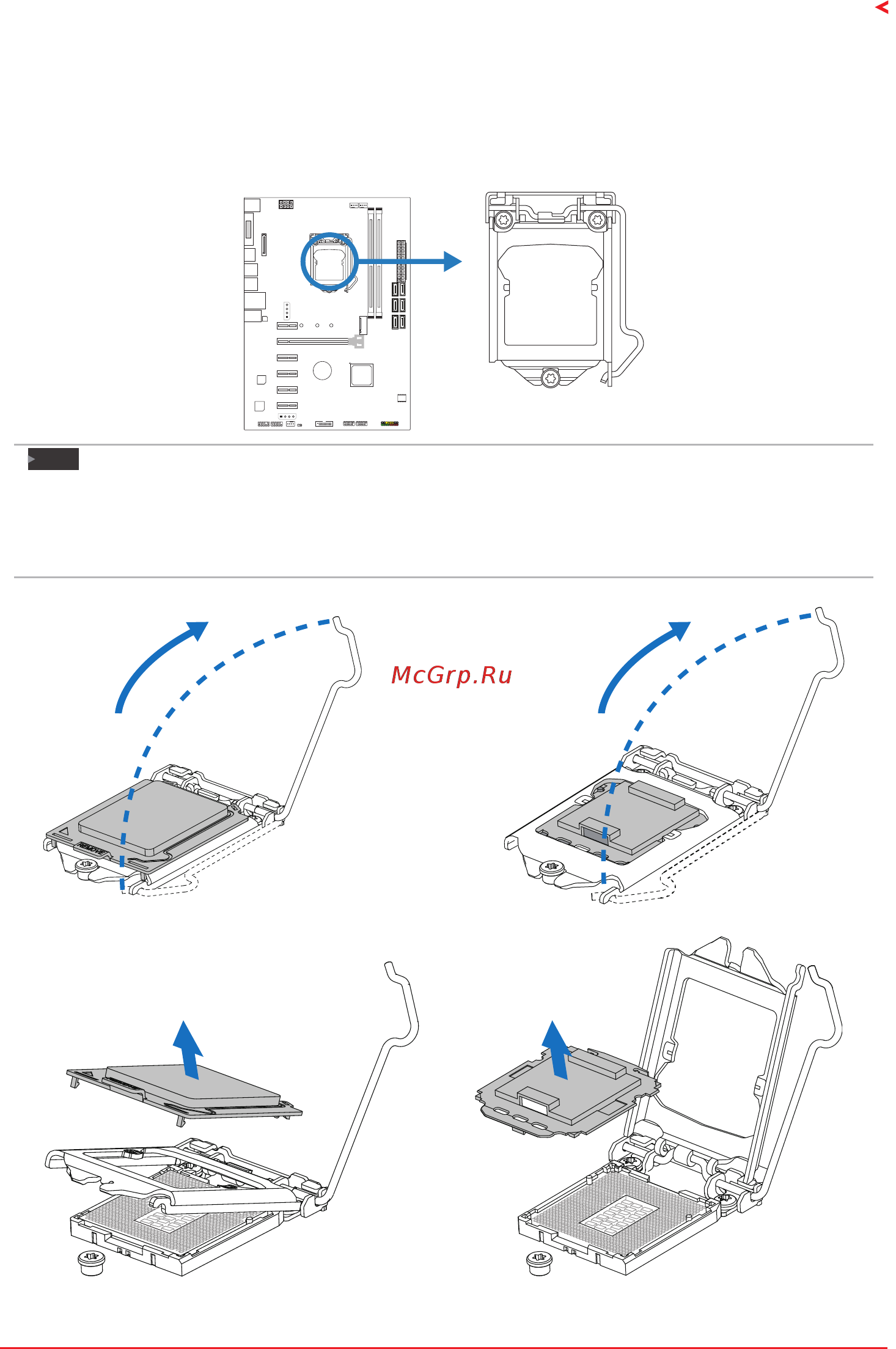

Step 1: Locate the CPU socket on the motherboard

Note

 Removepincapbeforeinstallaon,andmakegoodpreservaonforfutureuse.WhentheCPUis

removed,coverthepincapontheemptysockettoensurepinlegswon’tbedamaged.

 Themotherboardmightequipwithtwodierenttypesofpincap.Pleasereferbelowinstruconto

removethepincap.

Step 2: Pull the socket locking lever out from the socket and then raise the lever up.

Step 3: Remove the Pin Cap.
