12 | Chapter 2: Hardware Installaon

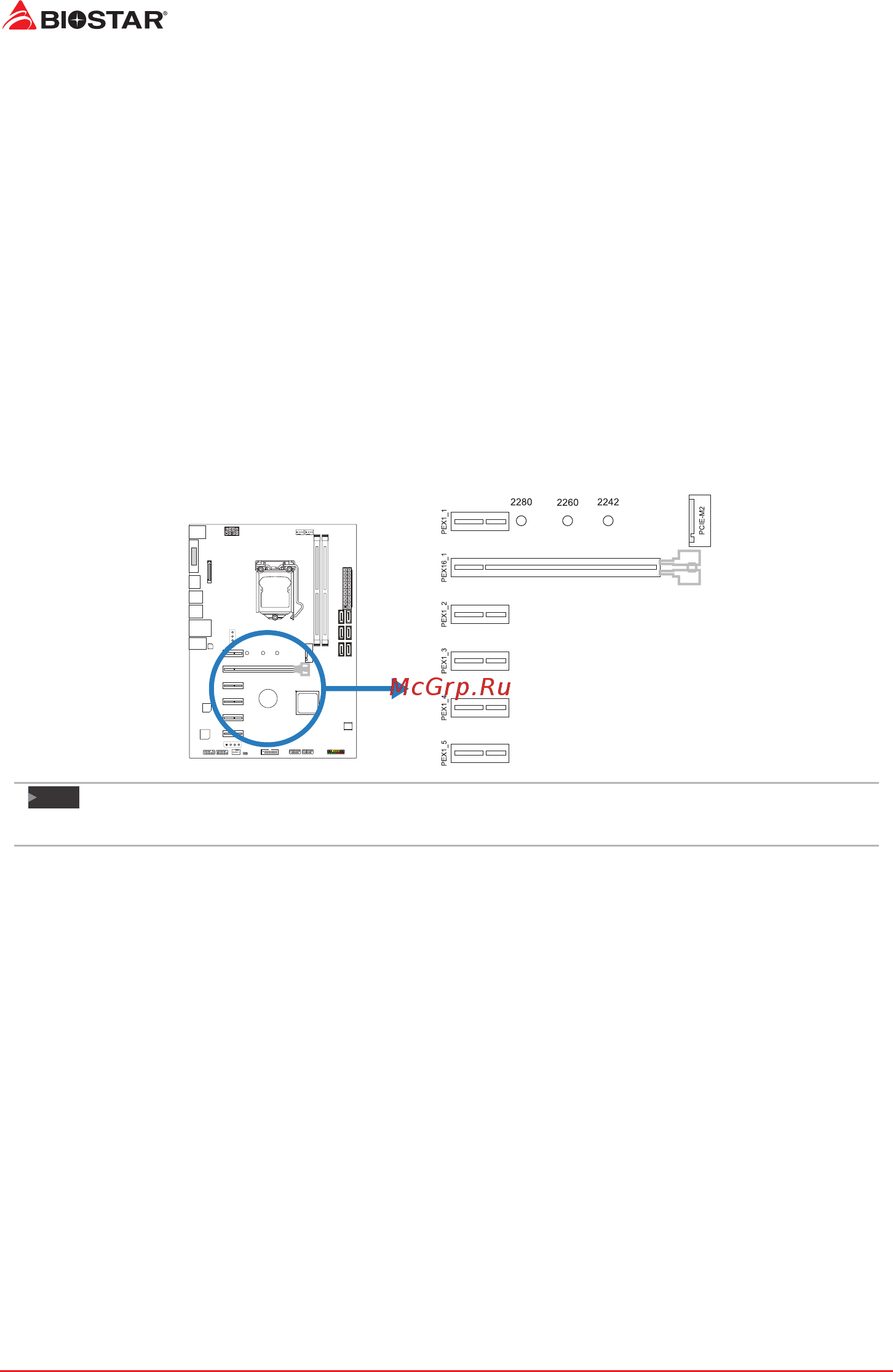

2.5 Expansion Slots

PEX16_1: PCI-Express Gen3 x16 Slot

• PCI-Express 3.0 compliant.

• Theorecal maximum bandwidth using two slots simultaneously is 16GB/s for each slot,

a total of 32GB/s.

PEX1_1/ PEX1_2/ PEX1_3 / PEX1_4 / PEX1_5: PCI-Express Gen3 x1 Slots

(for Bitcoin mining, please change the speed to PCI-E 1.0 in BIOS seng)

• PCI-Express 3.0 compliant.

• Data transfer bandwidth up to 1GB/s per direcon; 2GB/s in total

PCIE-M2: M.2 (Key M) Slot

• The M.2 slot supports M.2 Type 2242/2260/2280 SSD module. When installing M.2 SSD

module, please place the screw and hex pillar to correct posion.

• Support M.2 SATA III (6.0 Gb/s) module and M.2 PCI Express module up to Gen3 x4

(32Gb/s)

Note



WhenusingSATASSDmoduleonPCIE-M2slot,theSATA3_1connectorwillbedisabled.

Install an Expansion Card

You can install your expansion card by following steps:

• Read the related expansion card’s instrucon document before install the expansion

card into the computer.

• Remove your computer’s chassis cover, screws and slot bracket from the computer.

• Place a card in the expansion slot and press down on the card unl it is completely

seated in the slot.

• Secure the card’s metal bracket to the chassis back panel with a screw.

• Replace your computer’s chassis cover.

• Power on the computer, if necessary, change BIOS sengs for the expansion card.

• Install related driver for the expansion card.
