Planet FSD-1600 [14/22] Connect to 100base fx switch device model fsd 801 1601
![Planet FSD-1600 [14/22] Connect to 100base fx switch device model fsd 801 1601](/views2/1070900/page14/bge.png)
12
13

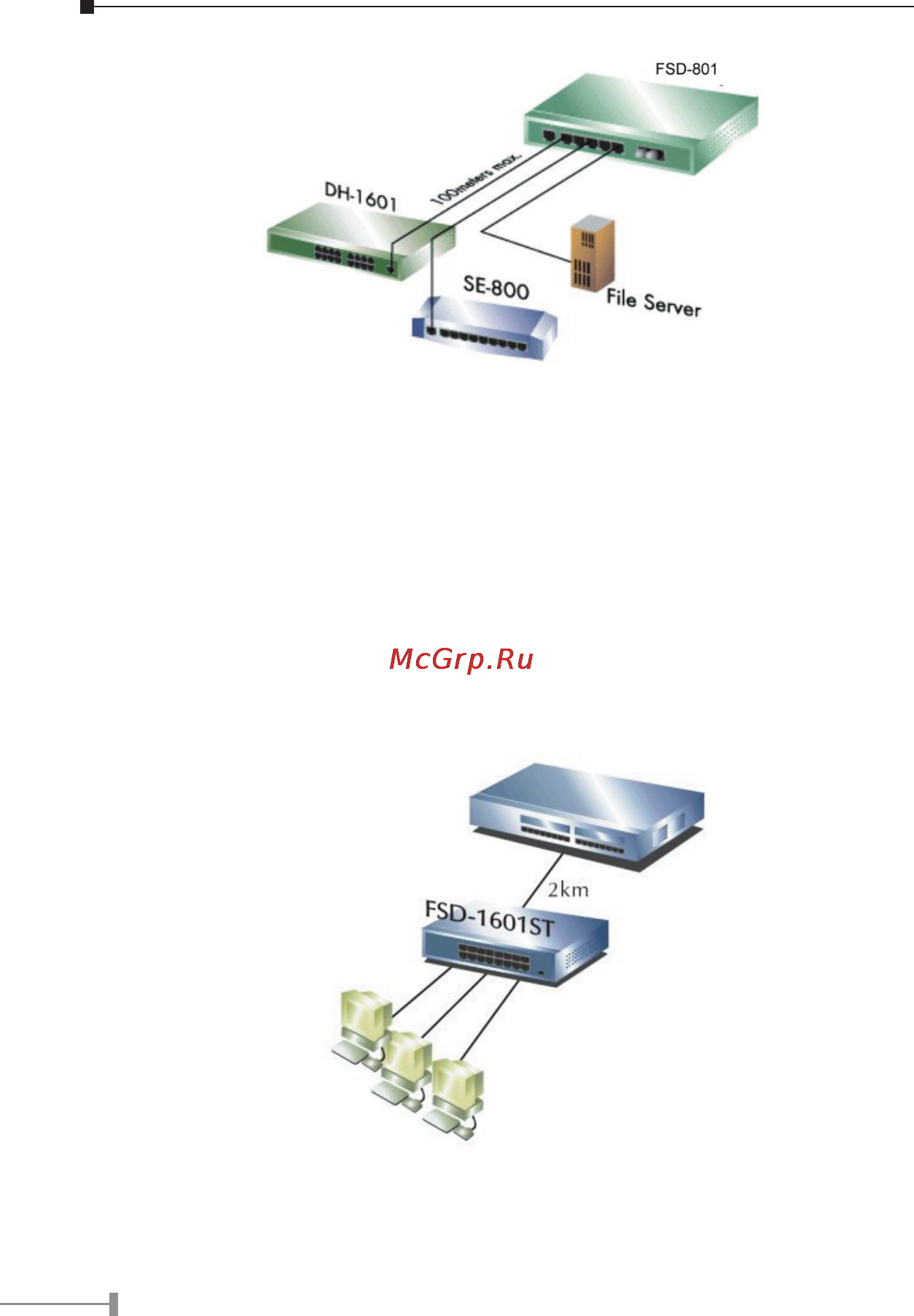

Figure 3-1 10/100Mbps File server to Switch Connection
3.3.2 Connect to 100Base-FX Switch/Device (Model: FSD-801/1601)
Plug the pair the ber-cable to the Switch’s ber-optic port, secure the ber-optic
connector. Connect to other end to the ber-optic port of the device like repeater hub,
switch or workstations.
Be noted for the duplex mode. For Hub, only Half-Duplex mode can be selected, at the
mean time, the cable distance cannot exceed 412 meters. For Switch or end-node that
works on full-duplex mode, the maximum distance cannot exceed 2 kilometers.
The pair of the connectors must be crossed, ie. TX/RX port of the Switch should connect
to RX/TX Port of the device in other end.
Consult your local dealer for more information about ber-optic wires, connector type or
network distances.
Figure 3-2 Fiber-cable Switch to Switch Connection
