4
5
FDX/
COL
Amber
Lit: Full duplex operation
Unlit: Half duplex operation
Blink: indicates data collisions on the respective Ethernet
segment of this port. Whenever a collision is detected, the
respective COL indicator will briefly blink.
This is normal when the network is busy.
NOTE:
Port # 8 of FSD-801 is a shared port. Either Twisted Pair port
or Fiber-optic port can operate in one time. Please power off
FSD-801 before switching the share port to different con-
nection type.
DIP Switch (FSD-801)
Printing Description
FDX (default)
The 100Base-FX fiber port of the switch is operating in full-
duplex mode.
HDX The port is operating in half-duplex mode.
NOTE:
check the opposite end is using the same transmit mode
before make the connection. If you want to adjust the DIP
switch, please power off FSD-801 first.
2.1.2 FSD-1600/FSD-1601

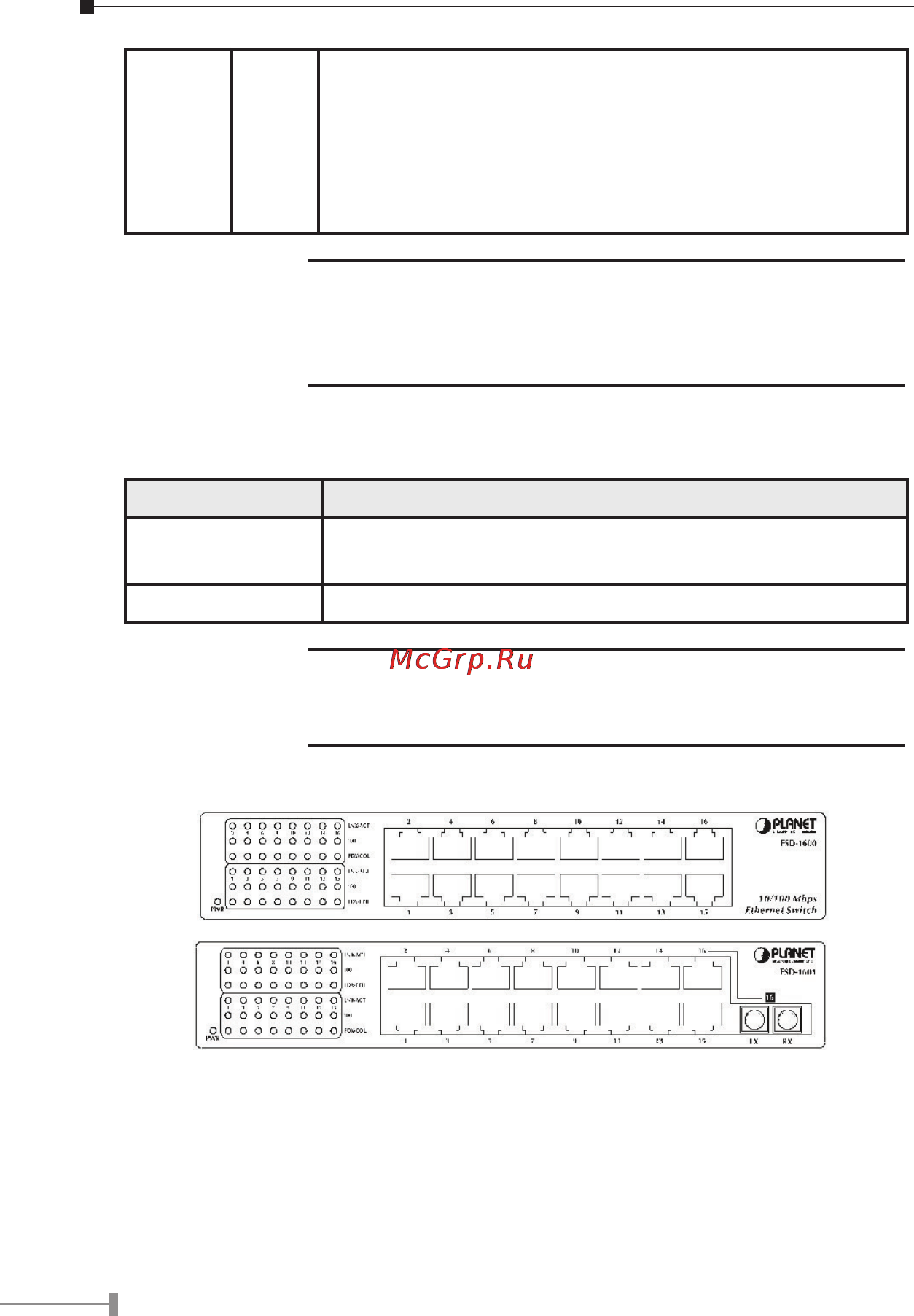

Figure 2-2 Front Panel of FSD-1600/ FSD-1601
