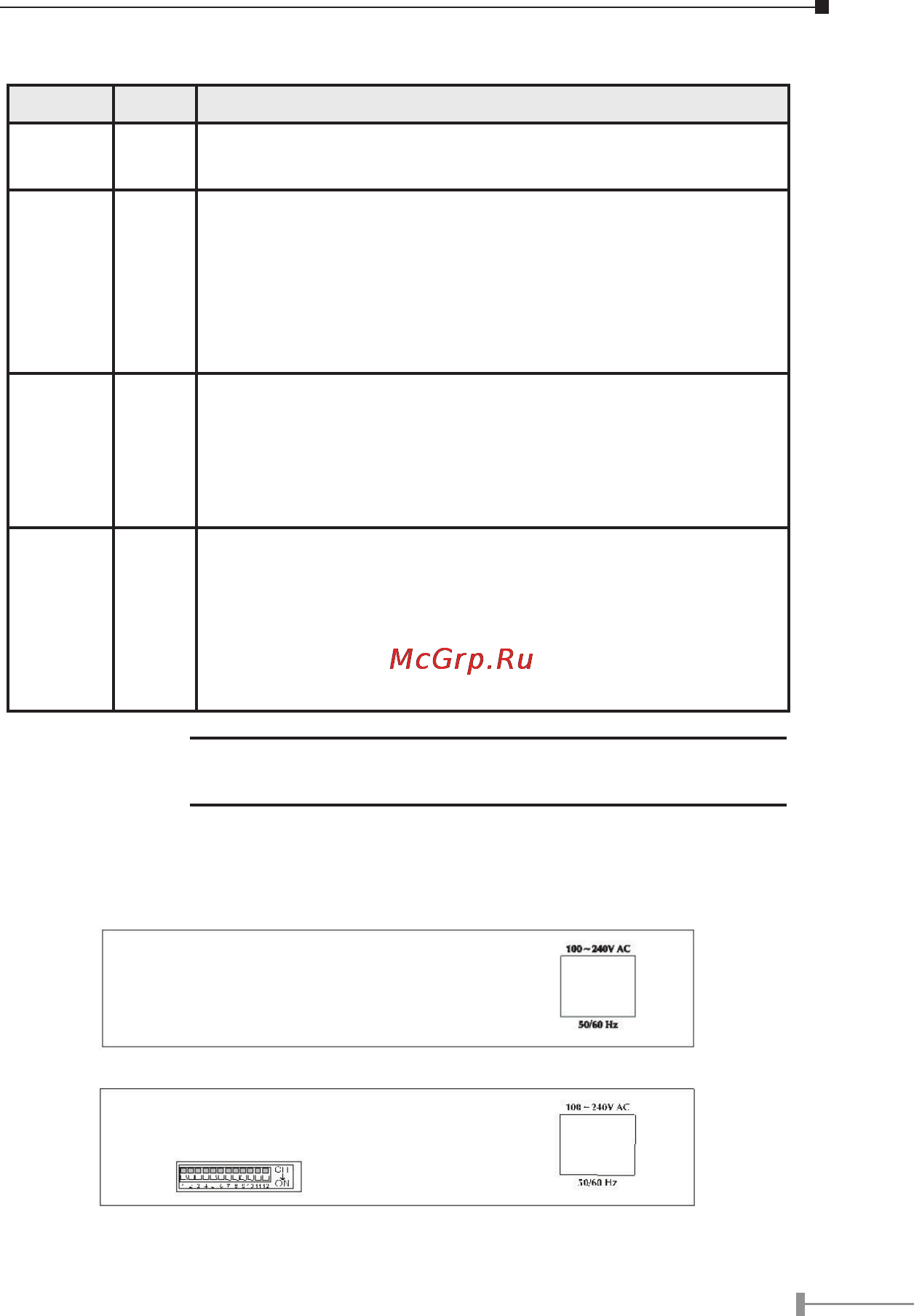

Planet FSD-1600 [7/22] Rear panel

LED indicators

Printing Color Description

Power

(PWR)

Green

This indicator lights green when the Switch is receiving

power; otherwise, it is off.

LNK/

ACT

Green

This indicator green when the port is connected to a either

10Mbps Ethernet or 100Mbs Fast Ethernet station , If the

station to which the Switch is connected is powered off, or if

there is a problem with the link, the LED will remain off.

And the indicator blinking green when the data will be re-

ceived to all other connected ports.

100 Green

This indicator green when the port is connected to a

100Mbps Fast Ethernet station. If the station to which the

Switch is connected is powered off, a 10Mbps Ethernet

station, or if there is a problem with the link, the LED will

remain off.

FDX/

COL

Amber

Lit: Full duplex operation

Unlit: Half duplex operation

Blink: indicates data collisions on the respective Ethernet

segment of this port. Whenever a collision is detected, the

respective COL indicator will briefly blink

This is normal when the network is busy.

 NOTE:

Port # 16 of FSD-1601 is a shared port. Either Twisted Pair

port or Fiber-optic port can operate in one time.

2.2 Rear Panel

There is one power socket on the back of the switch, 100~240VAC, 50/60Hz. And one

more DIP-switch for FSD-1600 and FSD-1601 for smart function.

Figure 2-3 Rear Panel of the FSD-800/801

Figure 2-4 Rear Panel of the FSD-1600/1601
