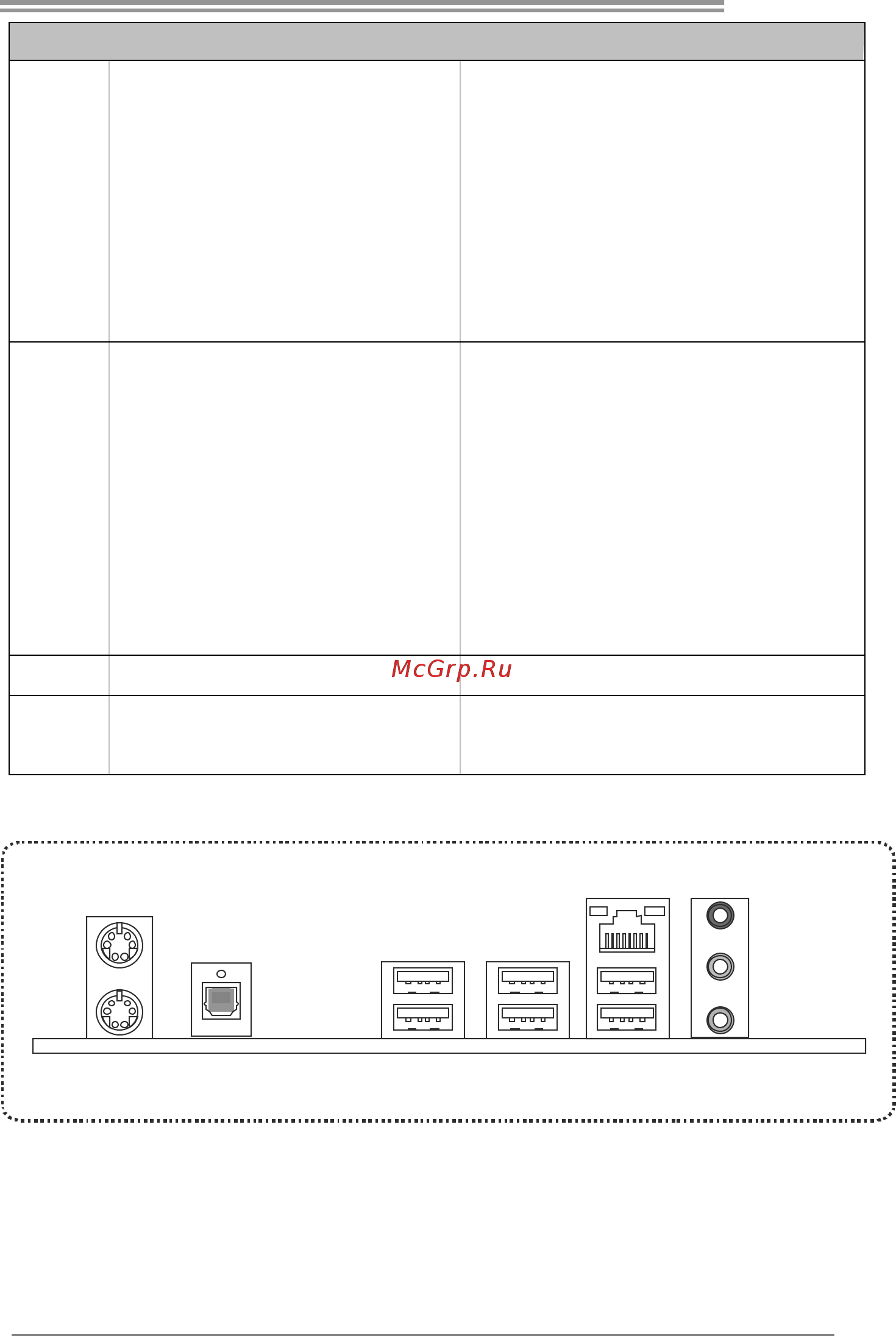

Biostar TP67B+ Версия 6.2 [5/59] Onnectors
![Biostar TP67B+ Версия 6.2 [5/59] Onnectors](/views2/1709085/page5/bg5.png)
TP67B+
3
SPEC
Clear CMOS Header x1 Restore CMOS data to factory default
USB2.0 Connector x2 Each connector supports 2 front panel USB2.0 ports
Consumer IR Connector x1 Supports infrared function
Serial Port Connector x1 Connects to RS-232 Port
S/PDIF out Connector x1 Supports digital audio out function
Power Connector (24pin) x1 Connects to Power supply
Power Connector (8pin) x1 Connects to Power supply
Back Panel
I/O
PS/2 Keyboard x1
PS/2 Mouse x1
S/PDIF Out x1
LAN port x1
USB2.0 Port x4
USB3.0 Port x2
Audio Jack x3
Connects to PS/2 Keyboard
Connects to PS/2 Mouse
Provides digital audio out function
Connect to RJ-45 ethernet cable
Connect to USB2.0 devices
Connect to USB3.0 devices (by NEC uPD720200 /
ASM1042) and USB2.0/USB1.X devices (by P67)
Provide Audio-In/Out and Mic. connection
Board Size
220 (W) x 305 (L) mm ATX
OS Support
Windows XP / Vista / 7
Biostar reserves the right to add or remove support
for any OS with or without notice
1.4 REAR PANEL CONNECTORS
PS/2
Mouse
PS/2
Keyboard
USB2.0X2
USB3.0X2
LAN
Line In/
Surround
Line Out
Mic In 1/
Bass/ Center
USB2.0X2
S/PDIF
Out
NOTE: USB3.0 ports are backward compatible with USB2.0/USB1.X devices. USB3.0 is
controlled by NEC uPD720200 / Asmedia ASM1042, but, USB2.0/USB1.X is controlled by
P67.
