Planet VC-202 [14/32] Hardware description

2. Hardware Description

VC-201 provides 2 RJ-11 ports for voice connection (like

telephone or ISDN) and for network line connection.

VC-202 provides 1 BNC connector and supports 50 ohm

cable with distance of up to 1.6km

Both VC-201 and VC-202 provide 1 RJ-45 ports for two

different running speed –10Mbps, 100Mbps, in the same

converter and automatically distinguish the speed of

incoming connection.

This section describes the hardware features of these

Converters. For easier control of the converter, familiarize

yourself with its display indicators, and ports. Front panel

illustrations in this chapter display the unit LED indicators.

Before connecting any network device to the converter, read

this chapter carefully.

2.1 Front Panel

The units’ front panel provides a simple interface monitoring

the converter.

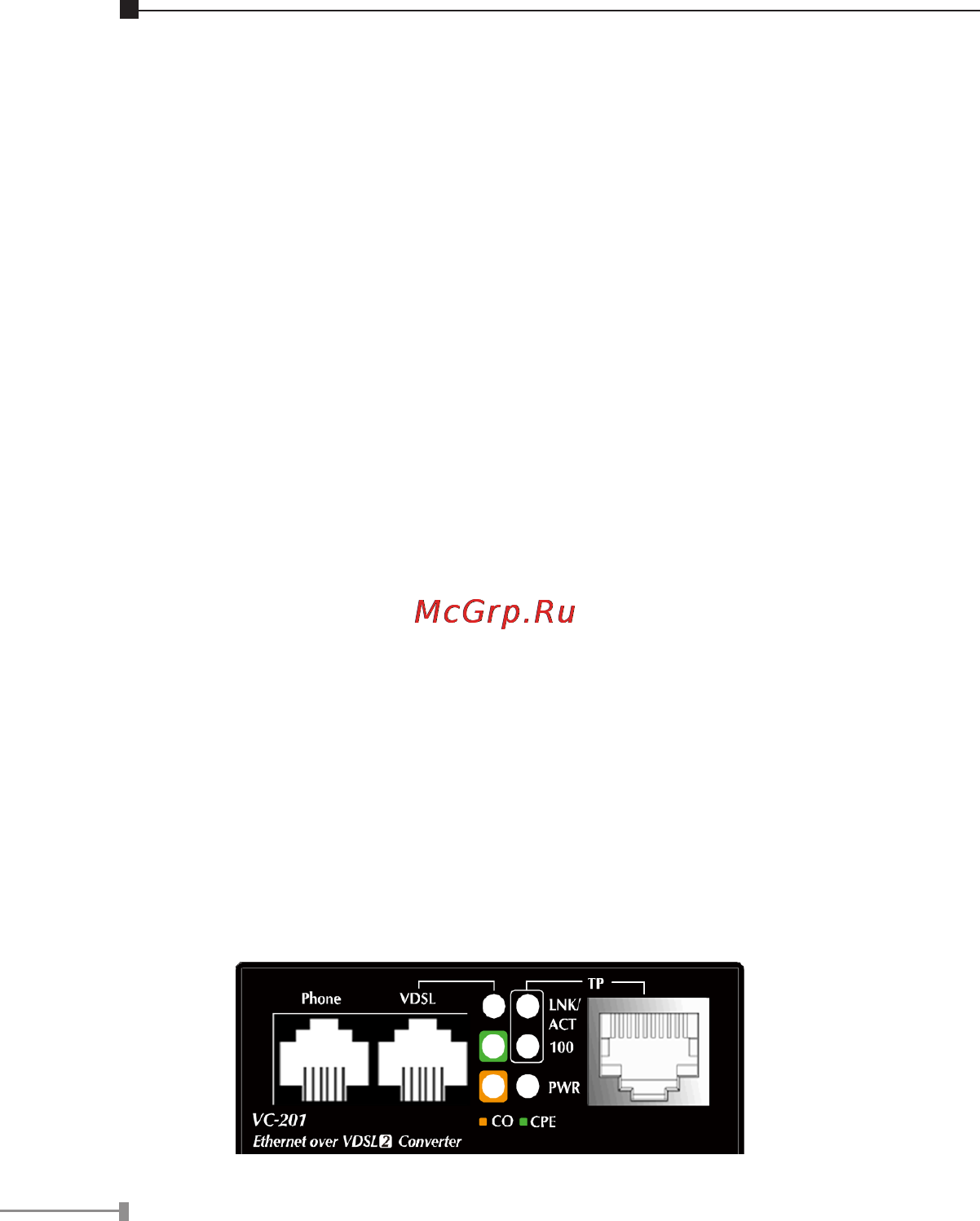

● VC-201 Front Panel
