Motherboard Manual

2.4 CONNECTORS AND SLOTS

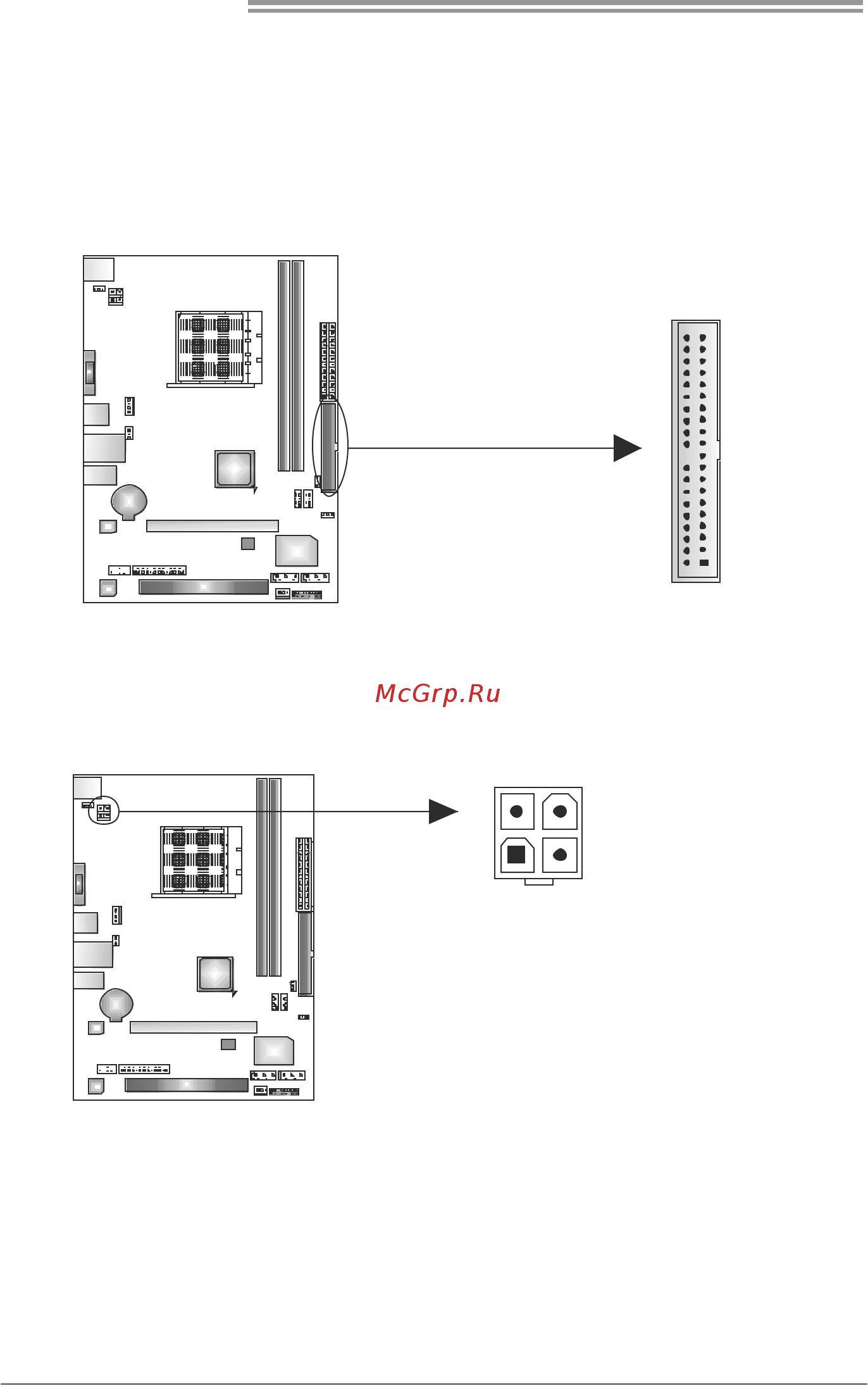

IDE: IDE/ATAPI Connector

The motherboard has a 32-bit Enhanced PCI IDE Controller that provides PIO

Mode 0~4, Bus Master, and Ultra DMA 33/66/100/133 functionality.

The IDE connector can connect a master and a slave drive, so you can connect

up to two drives.

3940

JATXPWR4: ATX Power Source Connector

This connect provides +12V to CPU power circuit.

Assignment

1 +12V

2 +12V

3 Ground

4 Ground
