Motherboard Manual

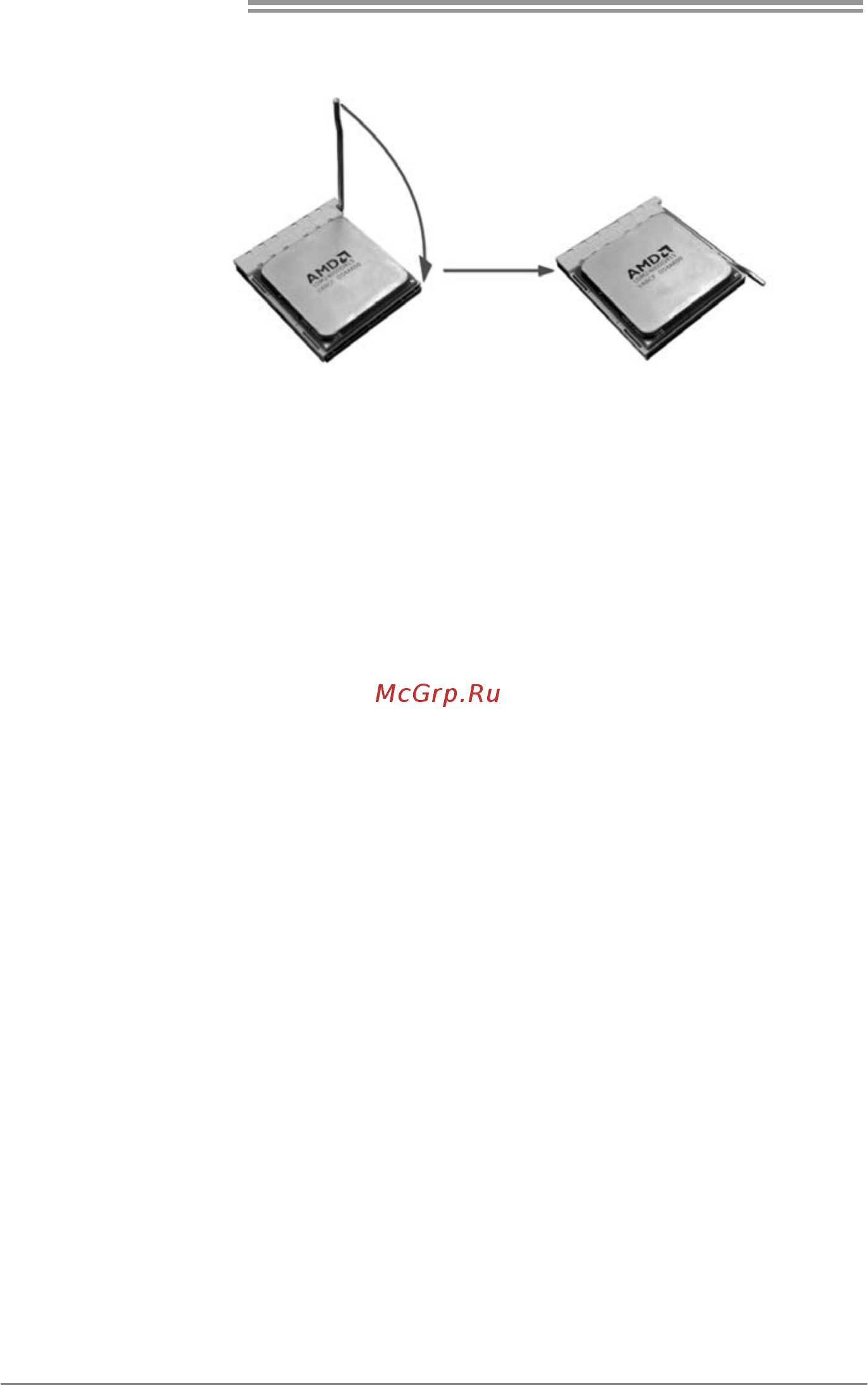

Step 3: Hold the CPU down firmly, and then close the lever toward direct

B to complete the installation.

Step 4: Put the CPU Fan on the CPU and buckle it. Connect the CPU

FAN power cable to the JCFAN. This completes the installation.
