Biostar A770L3 Версия 6.x [12/49] Fdd1 floppy disk connector

Motherboard Manual

2.4 CONNECTORS AND SLOTS

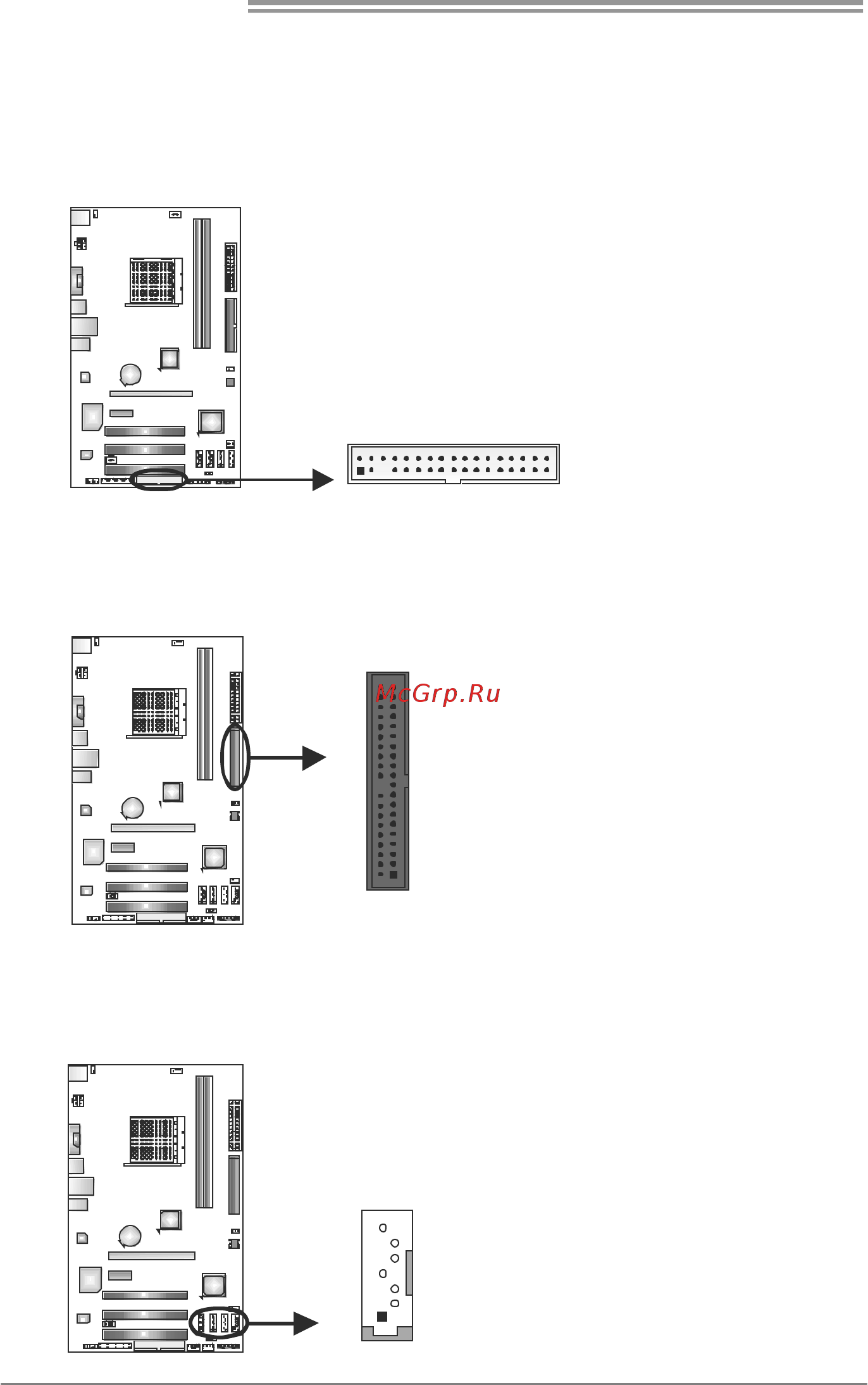

FDD1: Floppy Disk Connector

The motherboard provides a standard floppy disk connector that supports 360K,

720K, 1.2M, 1.44M and 2.88M floppy disk types.

133

234

IDE1: Hard Disk Connector

The motherboard has a 32-bit Enhanced IDE Controller that provides PIO Mode

0~4, Bus Master, Multi-word DMA, and Ultra DMA 33/66/100/133 functionality.

SATA1~SATA4: Serial ATA Connectors

The motherboard has a PCI to SATA Controller with 4 channels SATA interface,

it satisfies the SATA 2.5 spec and with transfer rate of 3.0Gb/s.

Assignment

1 Ground

2 TX+

3 TX-

4 Ground

5 RX-

6 RX+

SATA 1

SATA 2

SATA 3

SATA 4

7 Ground
