A785G3/A780L3/A780L3G
3
A785G3 A780L3/A780L3G
Floppy Connector x1 Floppy Connector x1
IDE Conn ector x1 IDE Conn ector x1
SATA Connector x4 SATA Connector x4
Front Panel Connector x1 Front Panel Connector x1
Front Audio Connector x1 Front Audio Connector x1
S/PDIF Out Connector x1 S/PDIF Out Connector x1
CPU Fan Header x1 CPU Fan Header x1
System Fan Header x1 System Fan Header x1
CMOS clear Header x1 CMOS clear Header x1
USB Connector x2 USB Connector x2
Power Connector (24pin) x1 Power Connector (24pin) x1
Power Connector (4pin) x1 Power Connector (4pin) x1
Printer Port Connector x1 Printer Port Connector x1
On Board
Connector
Serial port Connector x1 Serial port Connector x1
Back Panel
I/O
PS/2 Keyboard x1
PS/2 Mouse x1
DVI port x1
VGA port x1
LAN port x1
USB Port x4
Audio Jack x3
PS/2 Keyboard x1
PS/2 Mouse x1
DVI port x1
VGA port x1
LAN port x1
USB Port x4
Audio Jack x3
Board Size 200 mm(W) x 244 mm(L) 200 mm(W) x 244 mm(L)
Special
Features
RAID 0 / 1 / 1+0 support RAID 0 / 1 / 1+0 support
OS Support
Windows XP / Vista / 7
Biostar reserves the right to add or remove
support for any OS With or without notice.
Windows XP / Vista / 7
Biostar reserves the right to add or remove
support for any OS With or without notice.

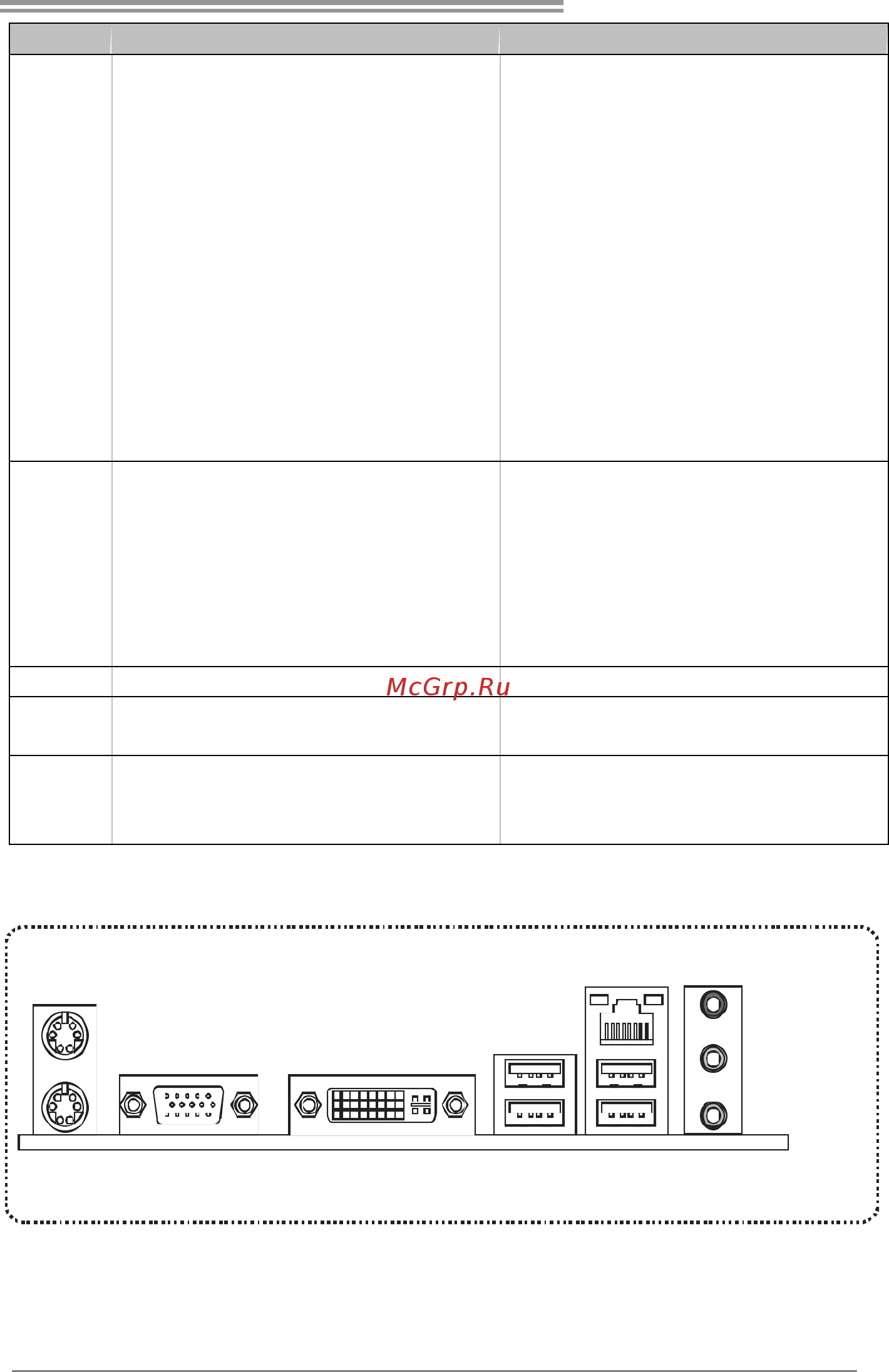

1.4 R
EAR PANEL CONNECTORS
PS/2
Mou se
PS/2
Keyboard
USB X2USBX2
LAN
VGA
Line In/
Surround
Line Out
Mic In 1/
Bass/ Center
DVI-D
