TA790GXB3/TA785-A3

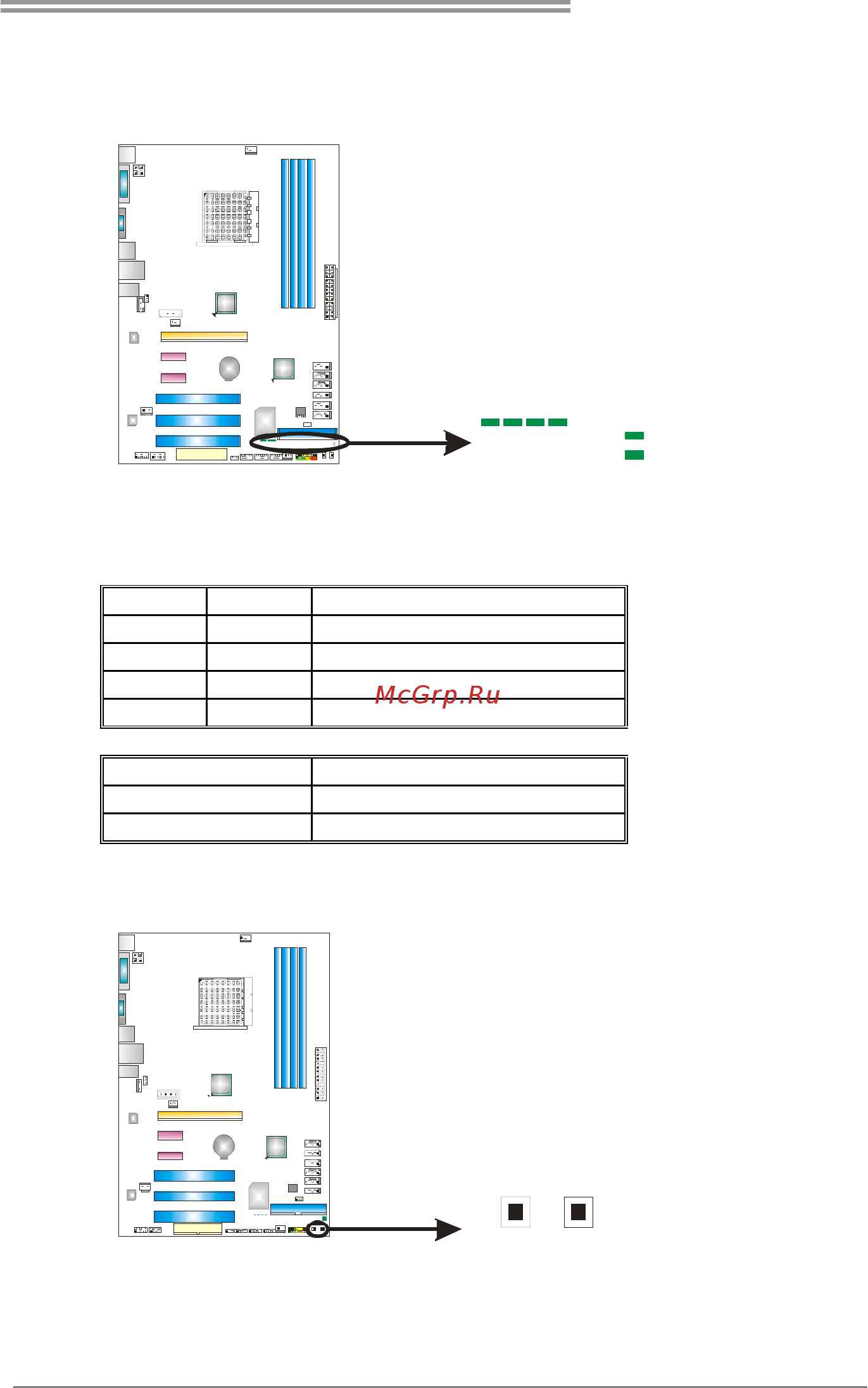

On-Board LED Indicators

There are 6 LED indicators showing system status.

LED_D1

LED_D2

PH2

PH1

PH4

PH3

LED_D1 & LED_D2: Debug Indicators

PH1 ~ PH4: Power Status Indicators

Please refer to the tables below for specific messages:

LED_D1 LED_D2 Message

ON ON Normal

ON OFF Memory Error

OFF ON VGA Error

OFF OFF Abnormal: CPU / Chipset error.

PH1~PH4 Phase Indicator

ON Phase Active

OFF Phase Disable

On-Board Buttons

There are 2 on-board buttons.

SW_RST

SW_PWR

SW_RST: Reset button.

SW_PWR: Power Switch button.
