Biostar TA790GXB3 Версия 6.x [20/65] F_com1 serial port connector

Motherboard Manual

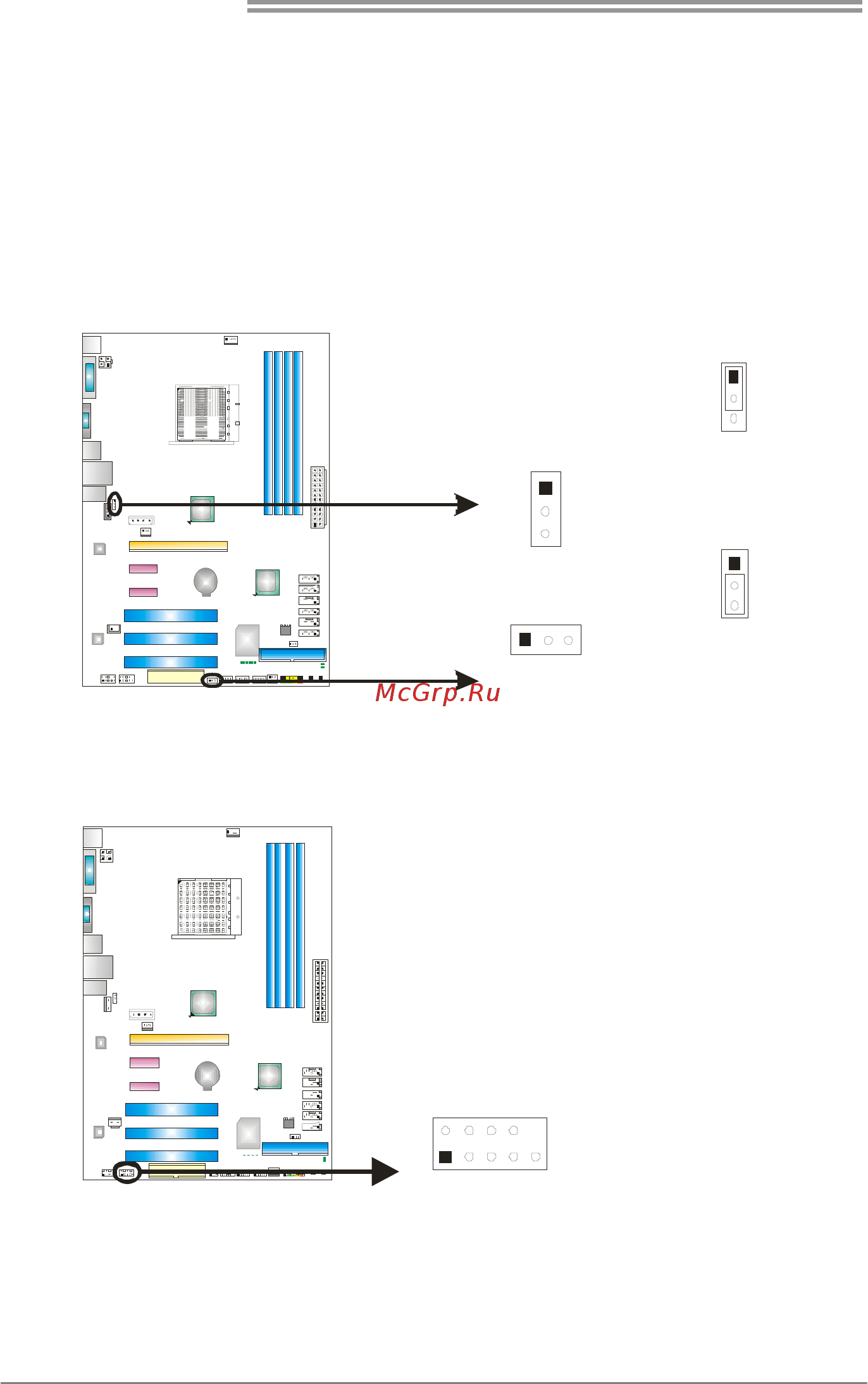

JUSBV1/JUSBV2: Power Source Headers for USB Ports

Pin 1-2 Close:

JUSBV1: +5V for USB ports at USB1/RJ45USB1.

JUSBV2: +5V for USB ports at front panel (F_USB1~F_USB3).

Pin 2-3 Close:

JUSBV1: +5V STB for USB ports at USB1/ RJ45USB1.

JUSBV2: +5V STB for USB ports at front panel (F_USB1~F_USB3).

Pin 1-2 close

JUSBV1

JUSBV2

Pin 2-3 close

F_COM1: Serial Port Connector

The motherboard has a Serial Port Connector for connecting RS-232 Port.

Assignment

1 Carrier detect

2 Received data

3 Transmitted data

4 Data terminal ready

5 Signal ground

6 Data set ready

7 Request to send

8 Clear to send

9 Ring indicator

210

10 NC
