Motherboard Manual
4

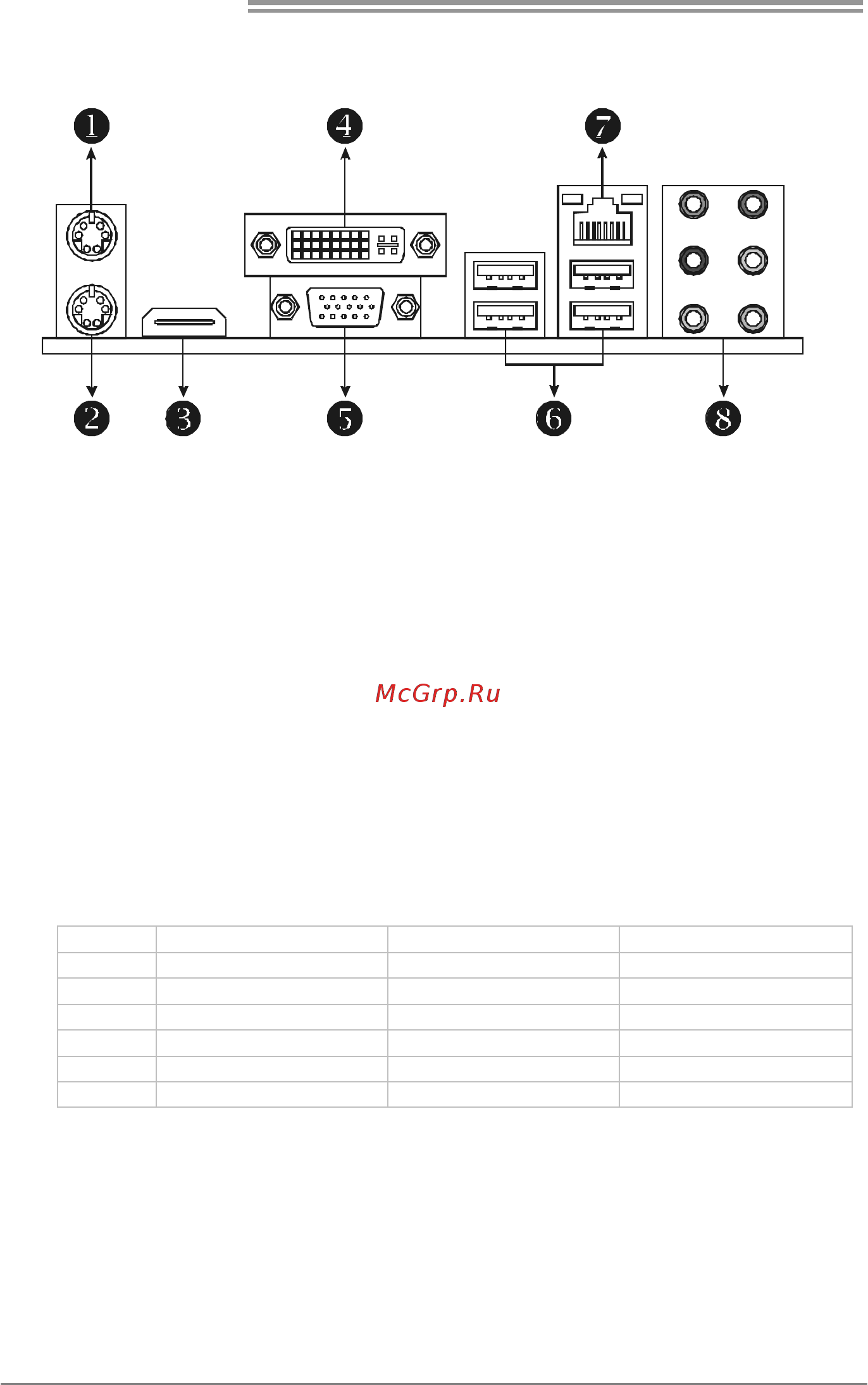

1.4 REAR PANEL CONNECTORS
X PS/2 Mouse Port Y PS/2 Keyboard Port
Z
HDMI Port
The High-Definition Multimedia Interface (HDMI) is an all-digital audio/video interface
capable of transmitting uncompressed streams to an AV receiver or any compatible digital
audio and/or video monitor, such as a digital television.
[
DVI-D VGA Port
The Digital Visual Interface (DVI) is a video interface transmitting digital video signals to
digital display devices such as flat panel LCDs or digital projectors. The DVI-D connector
allows digital signals transmission only.
\
D-Sub VGA Port
Transmit analog video signals to computer monitor or any other display panels equipped
with D-Sub VGA i nput.
]
USB 2.0 Port x 4
^
10/100/1000 Mbps LAN Port
_
Audio Jack x 6
Port 2-Channel 4-Channel 6-Channel/8-Channel
Blue Line-In Line-In Line-In
Green Line-Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Mic In
Orange Center/S ubwoo fer
Black Rear Speaker Out Rear Speaker Out Rear Speaker Out
Grey Side Speaker Out
NOTE: The HDMI and DVI-D ports both can provide digital video signals out-put function, but
these two interfaces cannot work at the same time. The chipset uses the same channel
to control HDMI and DVI-D, so these ports cannot transmit video signal to different display
panels simultaneously.
