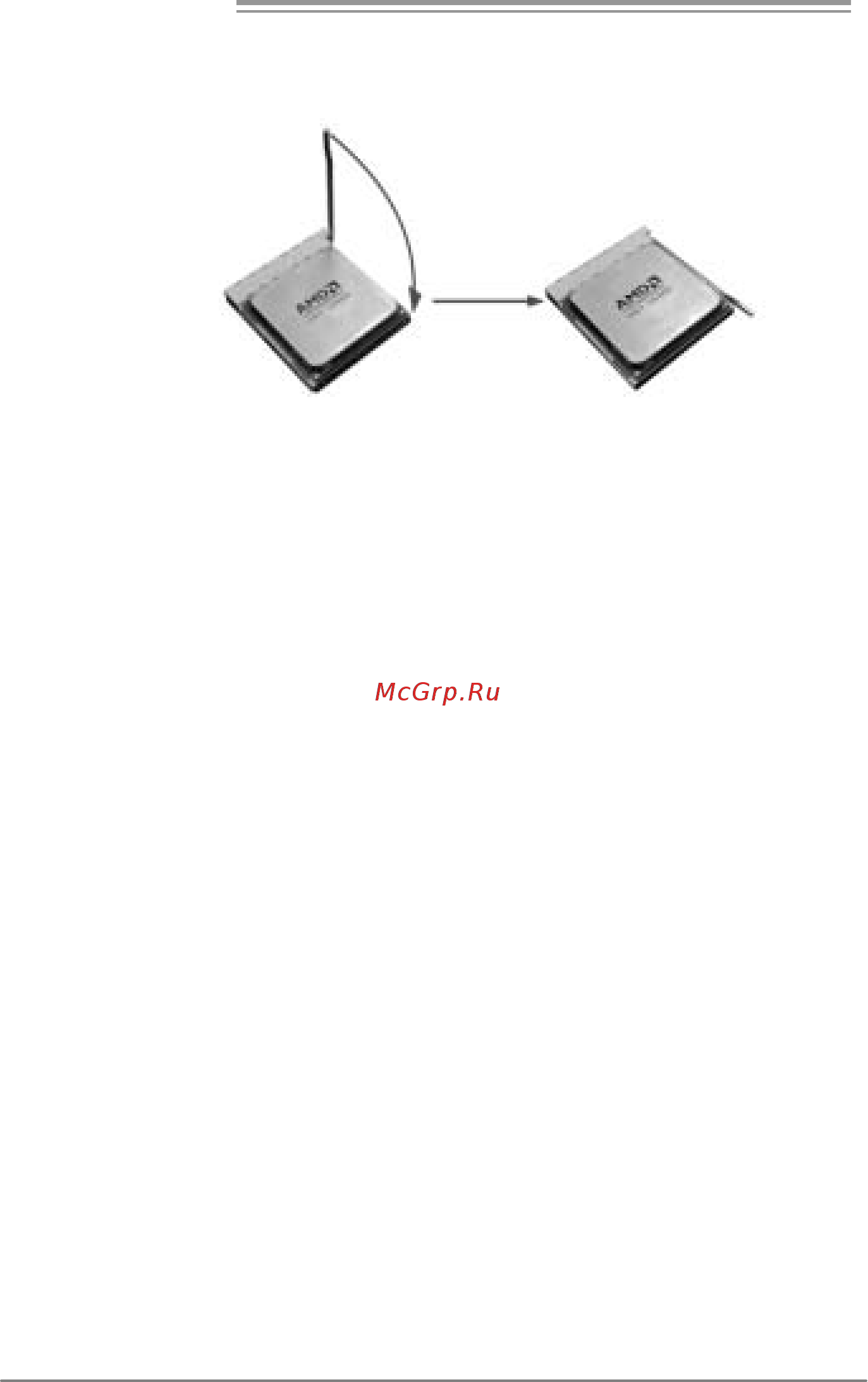

Motherboard Manual
8
Step 4: Hold the CPU down firmly, and then close the lever toward direct
B to complete the installation.
Step 5: Put the CPU Fan on the CPU and buckle i t. Connect the CPU
FAN power cable to the JCFAN1. This completes the installation.
