NF520-A2 TE/NF520-A2 SE/NF520-A2
9

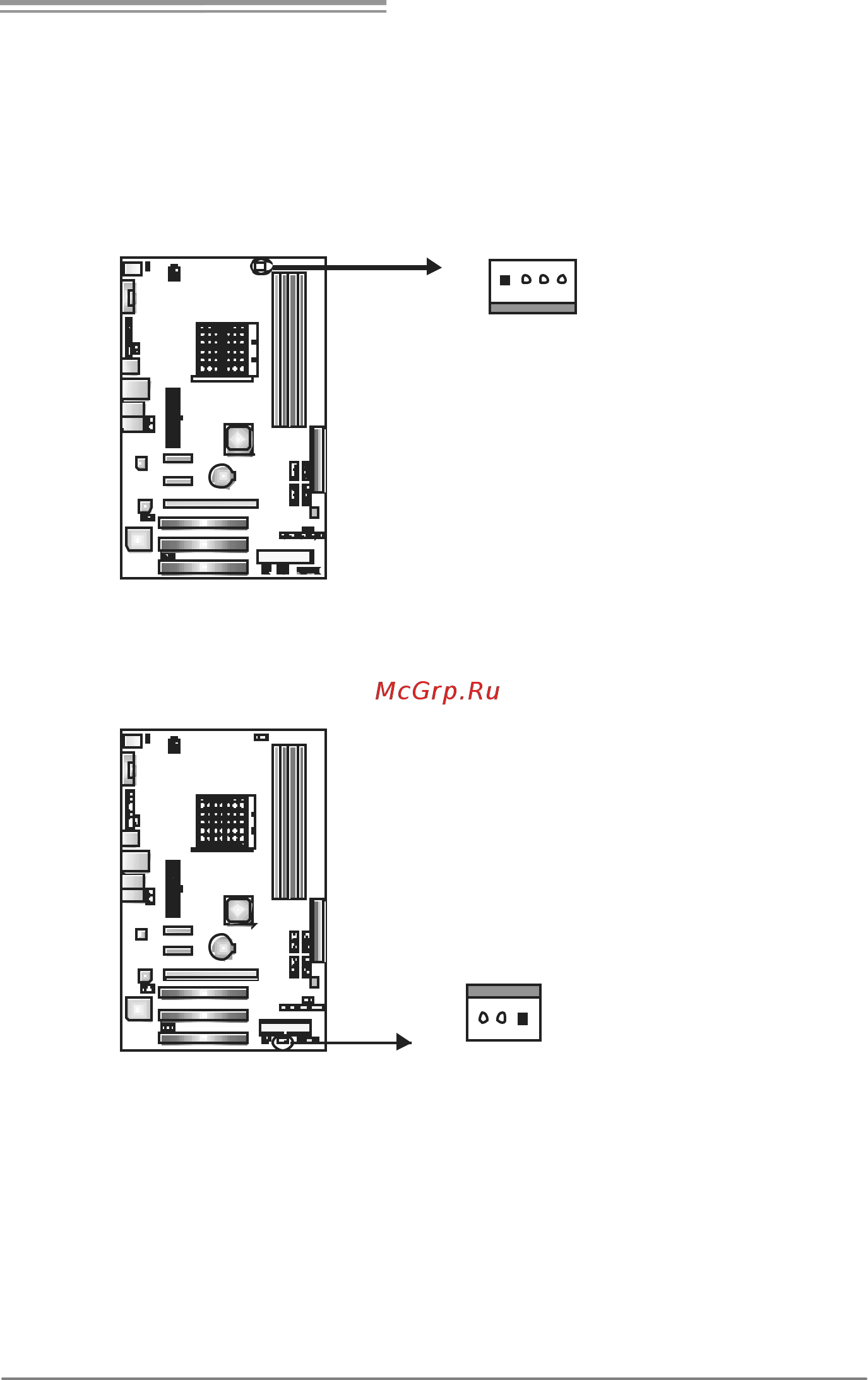

2.2 FAN HEADERS
These fan headers support cooling-fans built in the computer. The fan
cable and connector may be different according to the fan manufacturer.
Connect the fan cable to the connector while matching the black wire to
pin#1.
JCFAN1: CPU Fan Header
Pin
Assignment
1 Ground
2 +12V
3 FAN RPM rate
sense
14
4
Smart Fan
Control
JSFAN1: System Fan Header
Pin
Assignment
1 Ground
2 +12V
13
3 FAN RPM rate
sense
Note:
The JCFAN1 su pp or ts 4-pin he ad connec tor , an d JSFAN1s up ports 3-pin hea d c onn ect or.
When conn ecting wit h wires o nto c on nect ors, ple ase not e t hat t he r e d wire is th e p ositive
and should be c on nec ted to pin #2, an d t he blac k wire is Gr oun d an d sh ould be
conn ecte d t o GND.
