NF520-A2 TE/NF520-A2 SE/NF520-A2
7
CHAPTER 2: HARDWARE INSTALLATION

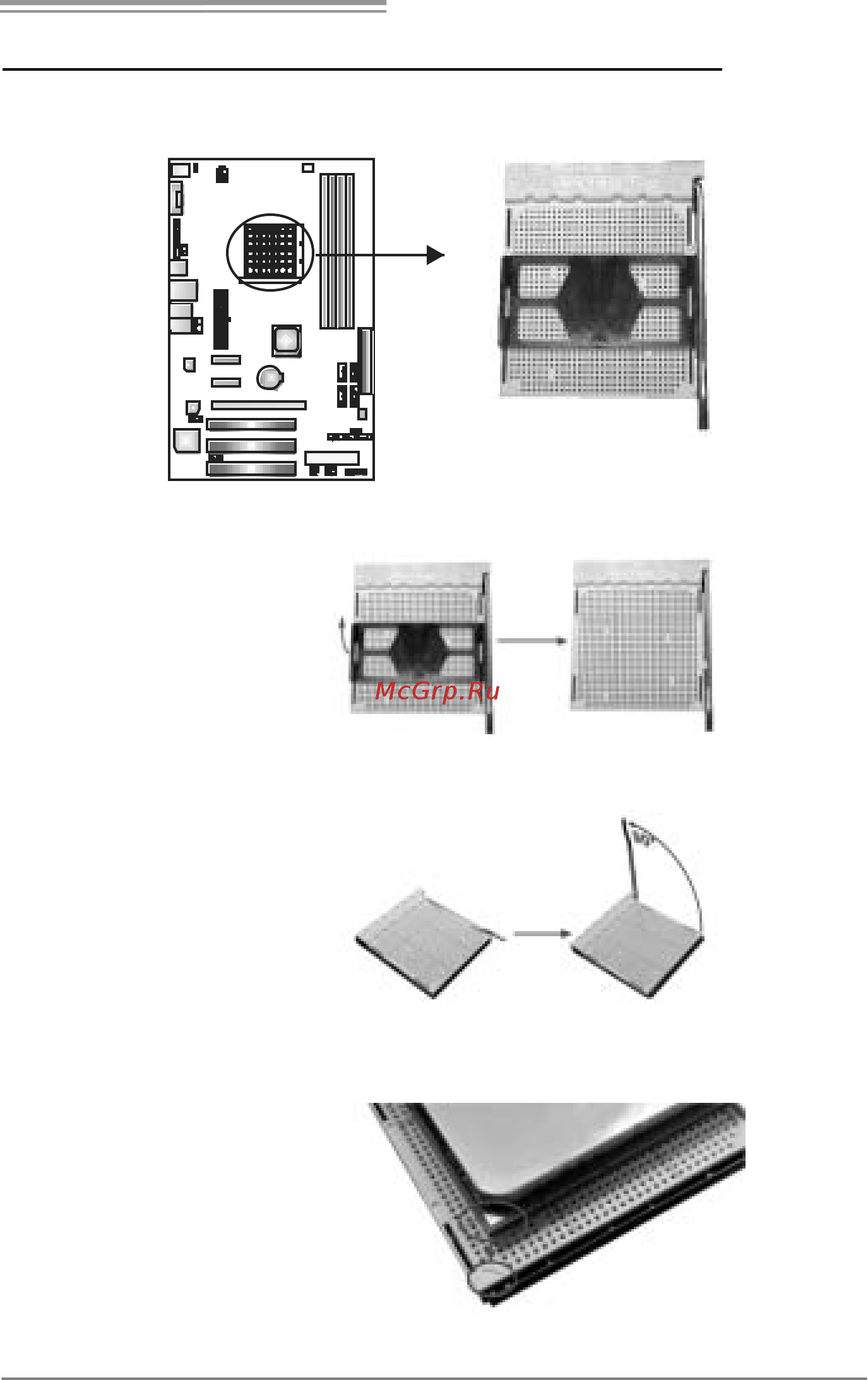

2.1 INSTALLING CENTRAL PROCESSING UNIT (CPU)
Step 1: Remove the socket protection cap.
Step 2: Pull the lever toward direction A from the socket and then raise the
lever up to a 90-degree angle.
Step 3: Look for the white triangle on socket, and the gold triangle on
CPU should point forwards this white triangle. The CPU will fi t
only in the correct orientation.
