TF520-A2/TF560-A2
5

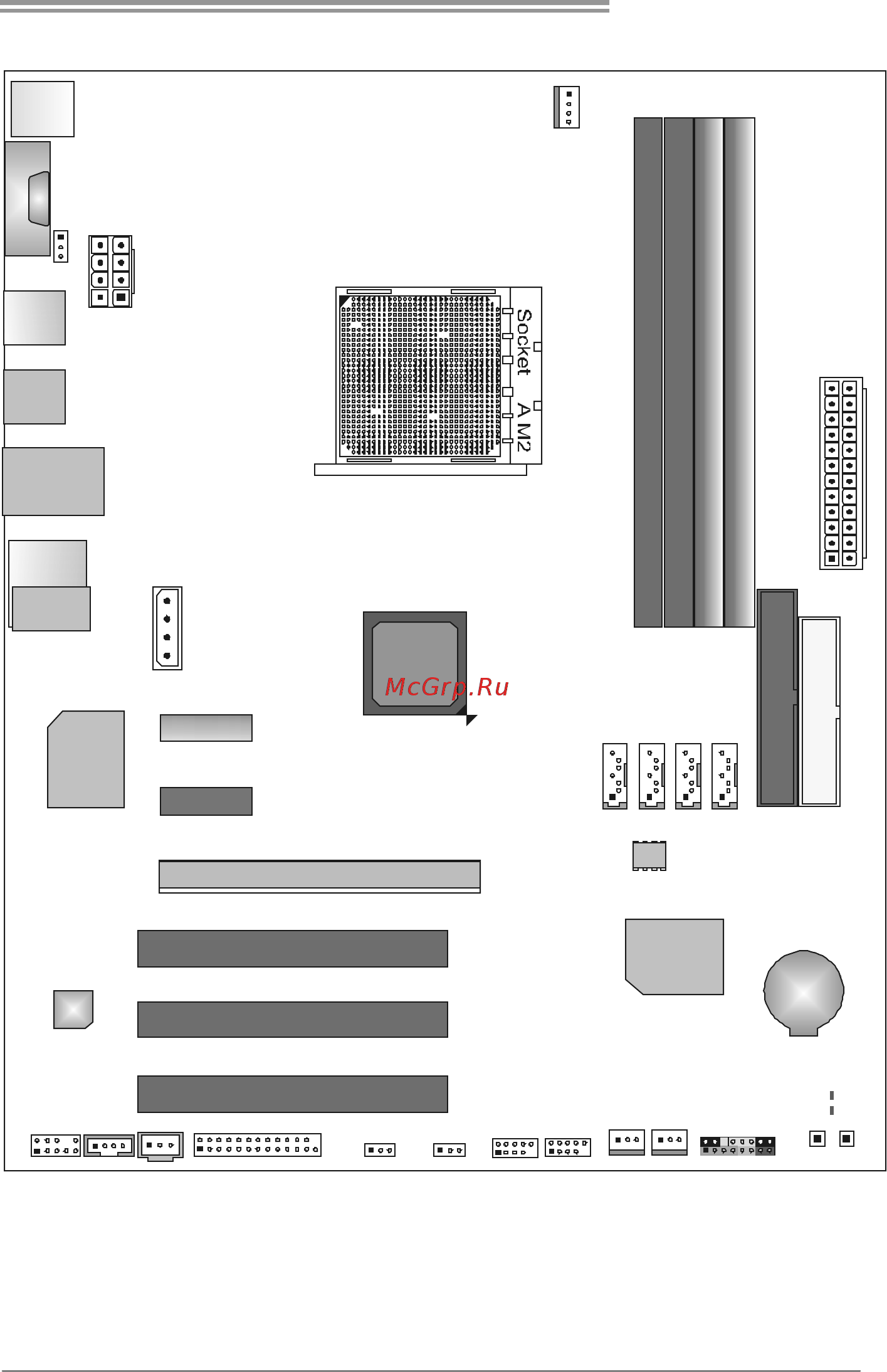

1.6 MOTHERBOARD LAYOUT
JKBMS1
JUSB2
AU DIO 2
(for Ver 5.x)
PEX1_1
FDD1
BAT1
JCOM1
JUSBV1
JCDIN1
Codec
JSPDIF_OUT
JATXPWR2
JPRNT1
PCI1
LAN
JUSBV2
JUSB3 JUSB4
DIMMA1
JCMOS1
JPANEL1
IDE1
JATXPWR1
JCFAN1
DIMMB1
DIMMB2
DIMMA2
PEX1_2
PCI3
PCI2
nForce
520/560
SATA4
JAUDIOF1
PWRSW1RSTSW1
JUSBLAN1
JSF AN1
SATA3
SATA2
SATA1
PEX16_1
LED_D1
LED_D2
JATXPWR3
JUSB1
JAUDIO1
(for Ver 6.x)
JSFAN2
SUPER I/O
BIOS
Note: ■ represents the 1
st
pin.
