Si34-601A Other Control
Function 123
5. Other Control
5.1 Outdoor Unit Rotation
In the case of multi-outdoor-unit system, this outdoor unit rotation is used to prevent the
compressor from burning out due to unbalanced oil level between outdoor units.
[Details of outdoor unit rotation]
In the case of multi-outdoor-unit system, each outdoor unit is given an operating priority for the
control.
Outdoor unit rotation makes it possible to change the operating priority of outdoor units.
Thus, the system becomes free of compressors that stop over an extended period of time at the
time of partial loading, preventing unbalanced oil level.
[Timing of outdoor unit rotation]
• After oil return operation
• After defrosting operation
• At the beginning of the starting control
• When any of outdoor unit stops for a period of 20 minutes or more
(in heating)
• There are outdoor units that stop operation (in cooling).
• Low pressure of all outdoor units in operation is less than 0.25 MPa (in cooling).

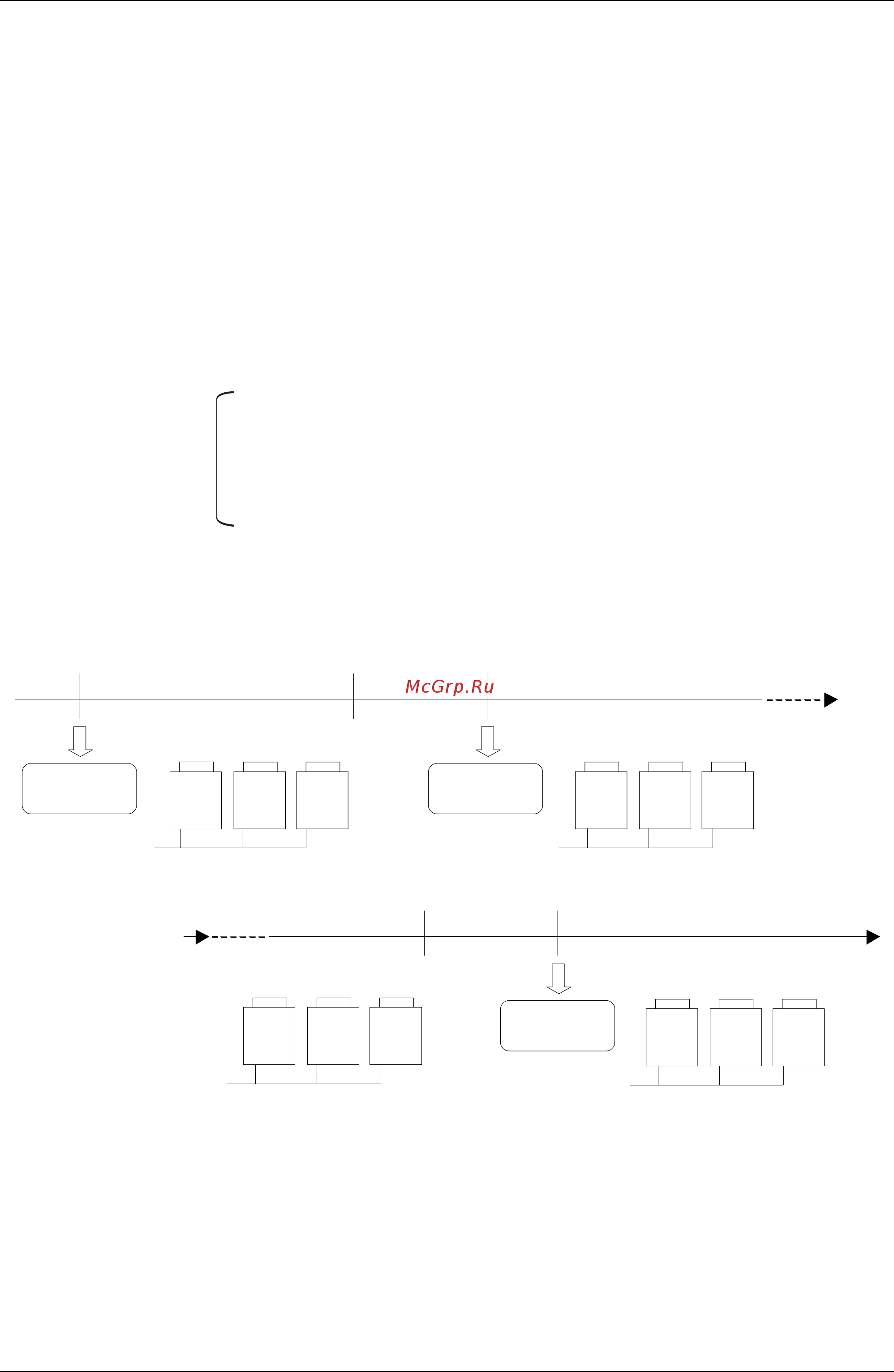

Example) The following diagram shows outdoor unit rotation in combination of 3 outdoor units.
(in heating) (in cooling)
or
Normal operation
Starting
control
Outdoor unit
rotation
Oil return operation
or defrosting
operation
Priority
1
Priority
2
Priority
3
Outdoor unit
rotation
Priority
3
Priority
1
Priority
2
Normal operation
Normal operation
Outdoor unit
rotation
Priority
2
Priority
3
Priority
1
Normal operation
Priority
3
Priority
1
Priority
2
Master Slave 1 Slave 2 Master Slave 1 Slave 2
Master Slave 1 Slave 2 Master Slave 1 Slave 2
Any of outdoor
unit stops for a
period of 20
minutes or more.
<In Heating>
