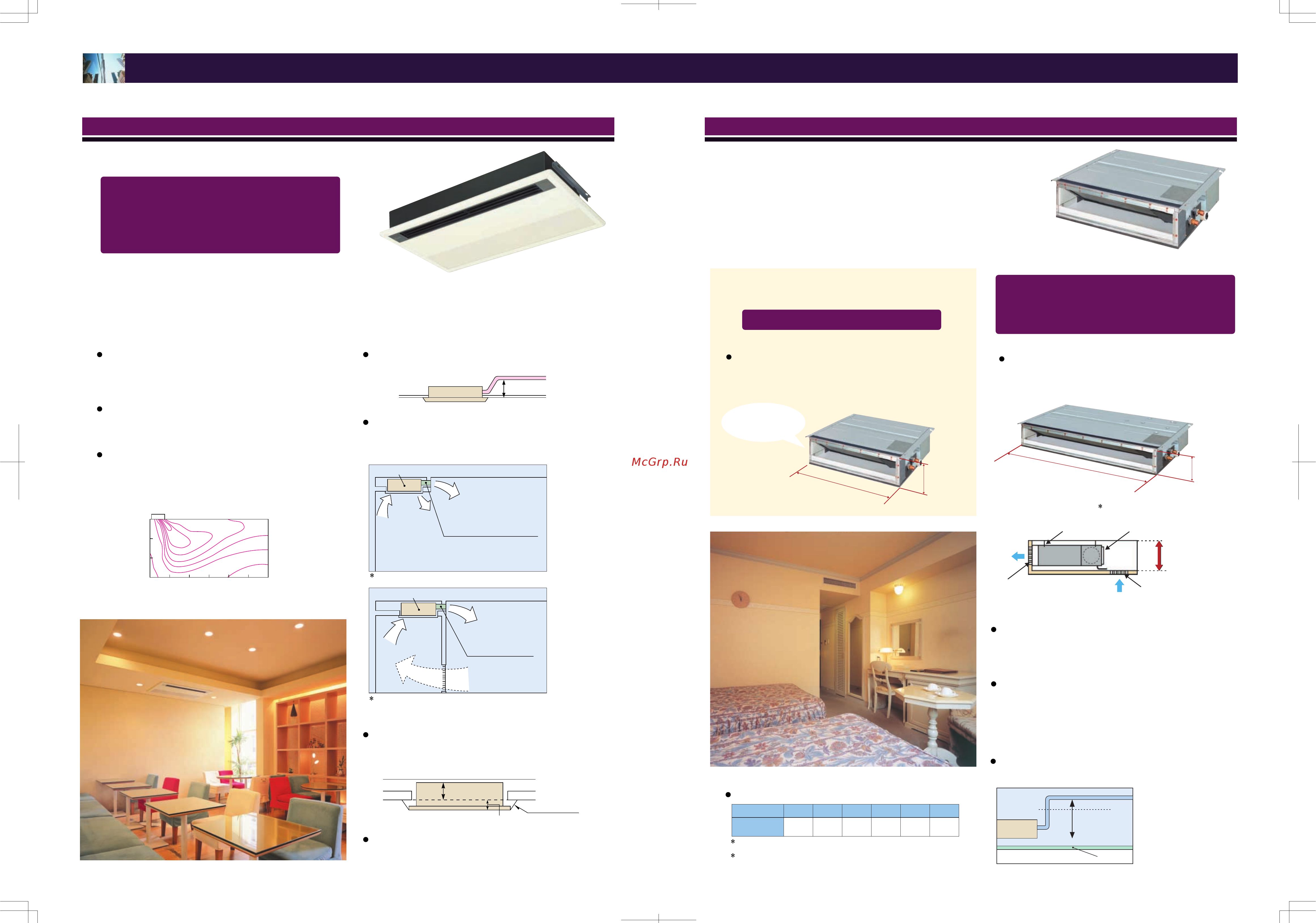

Indoor Units Line Up
3029
Slim ceiling mounted duct type
Slim design, quietness and
static pressure switching
FXDQ20NA/FXDQ25NA/FXDQ32NA
FXDQ40NA/FXDQ50NA/FXDQ63NA
FXDQ20P/FXDQ25P/FXDQ32P
Only 700 mm in width and 23 kg in weight, this
model is suitable to install in limited spaces like
drop-ceilings in hotels.
Low operating sound
36/32
63
35/31
50
34/30
40
33/29
32
33/29
25
33/29
20
Operating
sound (H/L)
Class
(dB(A))
Only 700 mm
200 mm
Great for
hotel use!
Suited for use in drop-ceilings!
Ceiling mounted cassette corner type
Slim design for flexible installation
3
32˚C
30˚C
28˚C 26˚C
24˚C
22˚C
20˚C
2
1
0
123456 (m)
(m)
Panel spacer
20 mm
Min.195 mm
Main body
Air discharge grille
(option)
Set for front discharge using a suspended ceiling.
Downward discharge is shut off and air is blown straight out
(front discharge).
Compliant with the RoHS Directive (refer to
page 13 for details.)
Single-flow type allows effective air discharge
from corner or from drop-ceiling.
Front discharge is possible with a air
discharge unit (optional), which allows the
installation in the drop-ceiling or sagging wall.
Slim body needs only 220 mm space above the
ceiling. If you use a panel spacer (optional), the
unit can be installed in the min. space of 195 mm.
A long-life filter (maintenance free up to one
year) is equipped as standard accessory.
Providing 3 different settings of standard, draft
prevention and ceiling soiling prevention, the
auto swing mechanism achieves even
distribution of airflow and room temperature.
500 mm
Drain-up pump is equipped as standard
accessory with 500 mm lift.
Main body
Downward discharge
Air discharge grille (option)
FXKQ25MA/FXKQ32MA
FXKQ40MA/FXKQ63MA
Drain-up pump is equipped as standard
accessory with 750 mm lift.
750 mm
Ceiling
External static pressure selectable by remote
controller switching make this indoor unit a very
comfortable and flexible model.
10 Pa-30 Pa/factory set: 10 Pa for FXDQ-P models.
15 Pa-44 Pa/factory set: 15 Pa for FXDQ-NA models.
Only 200 mm in height, this model can be
installed in rooms with as little as 240 mm depth
between the drop-ceiling and ceiling slab.
The values of operation sound level represent those for rear-suction operation.
Sound level values for bottom-suction operation can be obtained by adding 5 dB.
Values are based on the following conditions:
FXDQ-P: external static pressure of 10 Pa; FXDQ-NA: external static pressure of 15 Pa.
1,100 mm in width for the FXDQ63NA model.
200
mm
900 mm
Suction grille*
AIR
AIR
Discharge grille*
Air filter
Suspension bolt*
240 mm
*: To be obtained locally
Compliant with the RoHS Directive (refer to
page 13 for details.)
