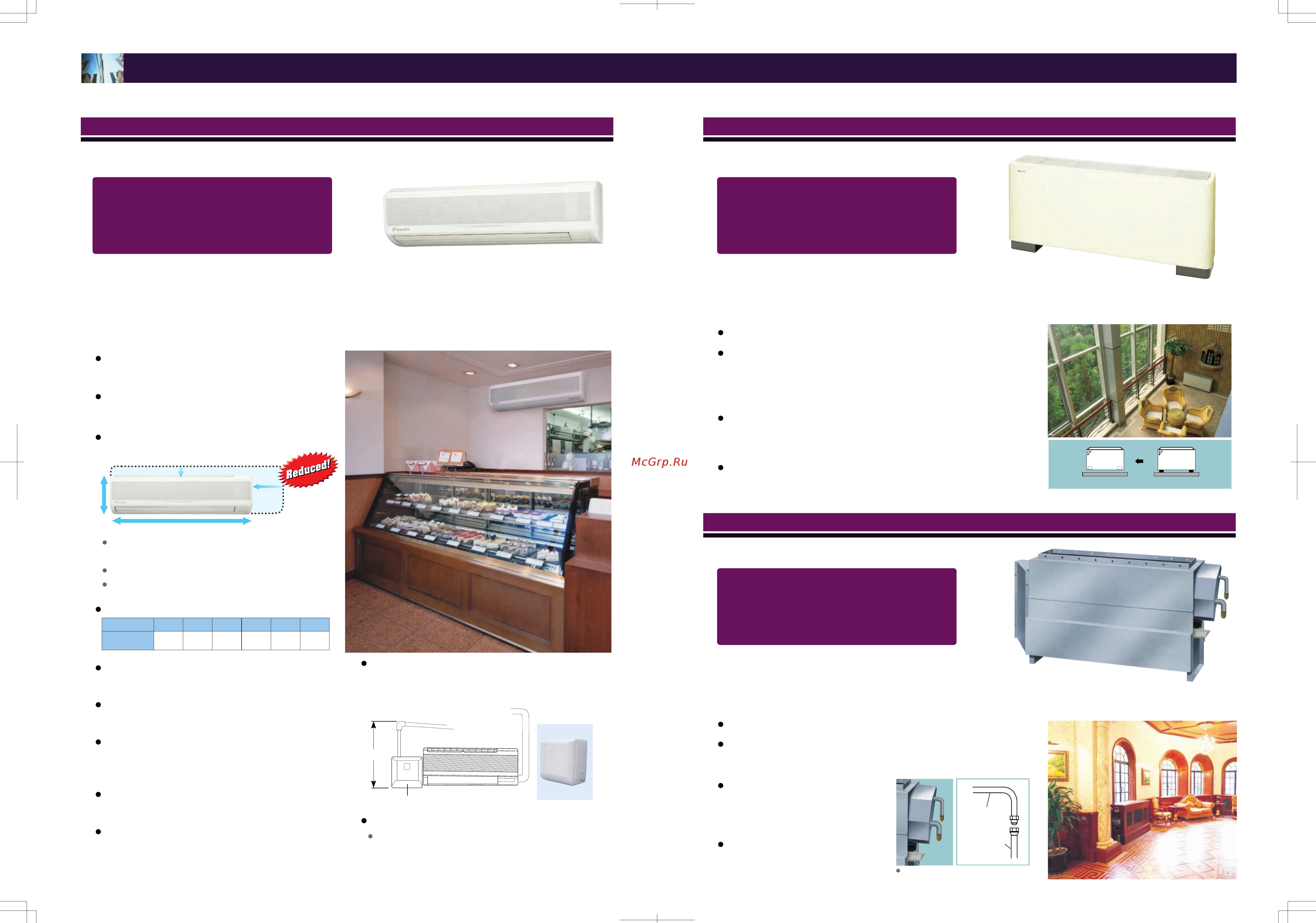

Floor standing type
3635
Perfect unit for perimeter zone air conditioning
Wall mounted type
Sophisticated design and compact casing
harmonised with your interior décor
Drain pan and air filter can be kept clean by
mildew-proof polystyrene.
Compact and stylish design that does not
detract from the décor of the room.
Drain-pump kit
1,000mm
Height of drain-up
Indoor unit
Drain-pump kit is available as optional
accessory, which lifts the drain 1,000 mm from
the bottom of the unit.
Auto-swing realises efficiency of air
distribution. The louver closes automatically
when the unit stops.
5 steps of discharge angle can be set by
remote controller.
Washable grille, the front grille can be easily
removed for washing.
Discharge angle is automatically set at the
same angle as the previous operation when
restarting. (Initial setting; 10˚ for cooling and
70˚ for heating)
1,050 mm
For 50, 63 Class
–70 mm
–200 mm
290 mm
More compact when compared with previous
model. (50, 63 class)
Drastic 10 kg weight reduction from 24 kg to
14 kg.
Volume reduced by 22%.
Space savings of up to 47%.
Flexible installation.
Drain pipe can be fitted to from either left or
right sides.
Low operating sound
46/39
63
42/36
50
39/34
40
37/29
32
36/29
25
35/29
20
Operating
sound (H/L)
Class
(220V-240V)(dB(A))
Wall hanging
Floor installation
Floor standing types can be hung on the wall for easier floor
cleaning. Running the piping from the back allows the unit to be
hung on walls. Cleaning under the unit, where dust tends to
accumulate, is considerably easier.
A long-life filter (maintenance free up to one year) is equipped
as standard accessory.
Compliant with the RoHS Directive (refer to page 13 for details.)
The adoption of a fibre-less discharge grille featuring an original
design to prevent condensation also helps prevent staining and
makes cleaning easier.
Concealed floor standing type
Perfect unit to be concealed in the skirting-wall of perimeter
Connecting
port
Refrigerant
piping
Applies also to floor standing type (FXNQ-MA).
The unit is concealed in skirting-wall of perimeter, that enables
to create high class interior design.
Compliant with the RoHS Directive (refer to page 13 for details.)
The connecting port faces
downward, greatly facilitating
on-site piping work.
A long-life filter (maintenance
free up to one year) is equipped
as standard accessory.
FXAQ20MA/FXAQ25MA
FXAQ32MA/FXAQ40MA
FXAQ50MA/FXAQ63MA
FXNQ20MA/FXNQ25MA
FXNQ32MA/FXNQ40MA
FXNQ50MA/FXNQ63MA
Indoor Units Line Up
Compliant with the RoHS Directive (refer to
page 13 for details.)
FXLQ20MA/FXLQ25MA
FXLQ32MA/FXLQ40MA
FXLQ50MA/FXLQ63MA
