6665
The new HRV lineup features the DX-coil in response to
recently diversifying outdoor air introduction requirements.
HRV with DX-Coil and Humidifier
VKM50GAMV1, VKM80GAMV1, VKM100GAMV1
With DX Coil & Humidifier Type
VKM50GAV1, VKM80GAV1, VKM100GAV1
With DX Coil Type
Model Numbers
Indoor Unit Indoor Unit
VRV Series
Outdoor Units
Air-Conditioning Air
Air
Supply
Return
Air
VRV III Indoor Unit 50 Hz only
Ceiling Mounted Built in Type
Conforms to CE standards
HRV (VKM) introduces fresh outdoor air with
minimum heat losses, while a wide variety of features
respond to customer requirements.
Efficient outdoor air introduction is possible
Humidifier
DX-coil
High static pressure
The lineup includes models with a humidifier,
in response to diversifying customer
requirements. (VKM50/80/100GAMV1 only)
The HRV features DX-coil that contributes to
the prevention of cold airflow hitting people
directly during heating operation, due to the
after-cool, after-heat operations done
beforehand.
Higher external static pressure means
enhanced design flexibility.
HRV with DX Coil & Humidifier
Outdoor Air
Exhaust Air
Humidifier element
DX-coil
(Direct expansion coil)
OA
(Fresh air from
outdoors)
SA
(Supply air
to room)
EA
(Exhaust air
to outdoors)
RA
(Return air
from room)
Air Supply Fan
Electronics Box
(Control box)
Exhaust Fan
Heat Exchanger
Elements
Damper
Damper Motor
DX-coil
Humidifier element
30.6°C
62% RH
27.4°C
63% RH
26°C
50% RH
Integrally-formed liner
Indoor
SA
RA
Outdoor
32°C
70% RH
Integrally-
formed liner
Temperature
and humidity
RA
SA
Operation of
the heat exchanger element
HEP Element
(Anti-mold)
Integrated system includes ventilation and humidifying operations.
Ventilation, cooling/heating and humidifying are possible with one remote controller.
Indoor unit with outdoor air treatment
Heating and cooling
+
+
heat recovery
humidifying
–5 0 5 10 15 20
Dry bulb temperature (°CDB)
25 30 35 40
Relative humidity (%)
20
40
60
80100
Eff
Eff
ect of full heat e
ect of full heat e
xc
xc
hang
hang
eEffect of full heat exchange
Effect of full heat exchange
Effect of cooling
Outdoor air temperature
in summer
Indoor temperature during heating
Indoor temperature during cooling
Outdoor air temperature
in winter
Eff
Eff
ect of heating
ect of heating
Effect of heating
Effect of
humidification
Using outdoor air, the temperature can
be brought near room temperature with
minimal cooling capacity through the use
of outdoor air.
Other features
Heating
by DX-Coil
Heat exchange
To the Outdoor 10.4 °C
Outdoor Air
From the Outdoor 7°C

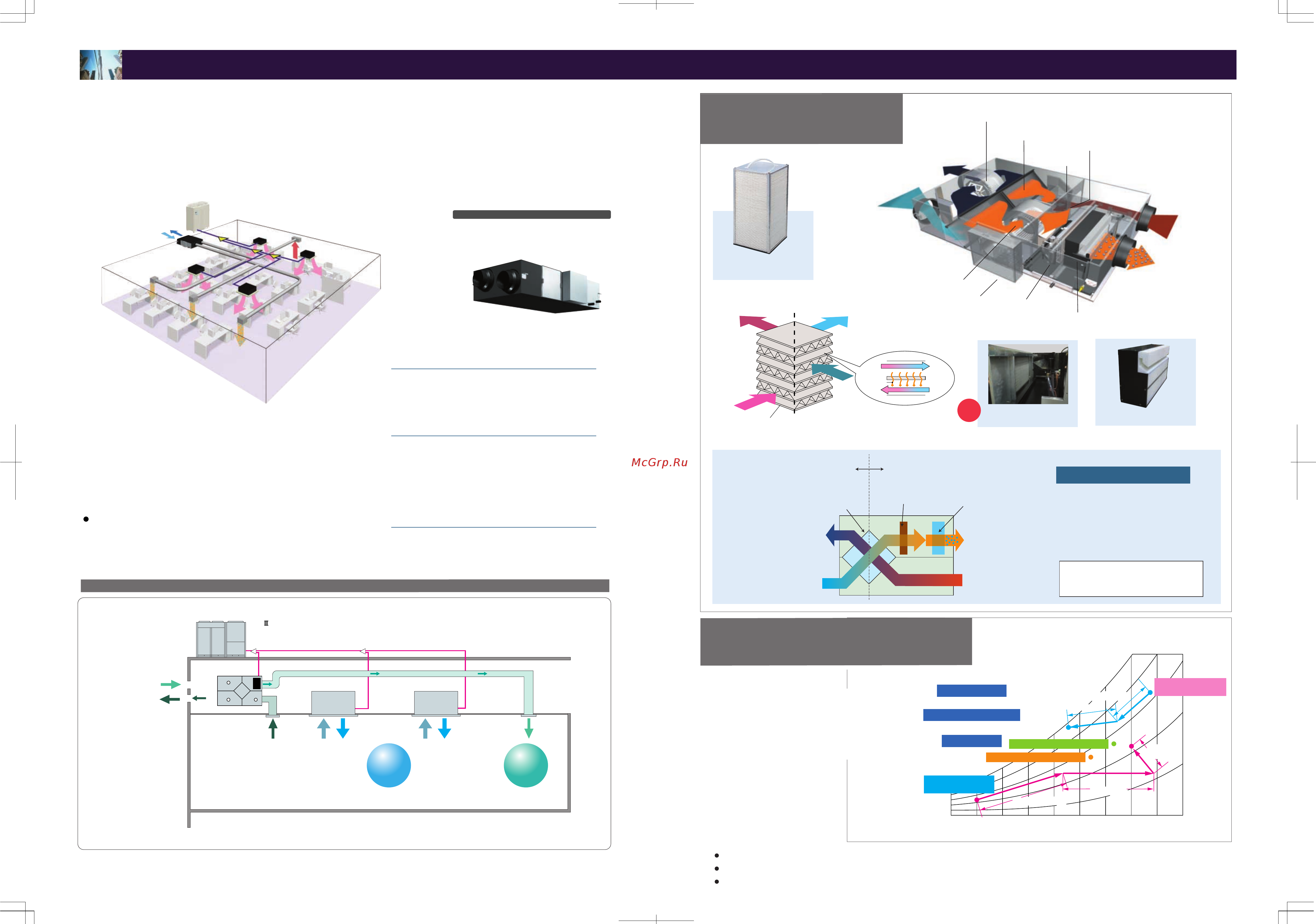

Structure of HRV
From the Indoor 20°C
Return Air
To the Indoor 24.5°C
Supply Air
Humidification
Natural Evaporating
Pan Type Humidifier
Exhaust Air
The Outdoor air is heated from 16.6 °C to
36.5 °C with DX-coil, Natural Evaporating
Pan Type Humidifier is passed and
humidification capacity is improved.
36.5°C
16.6°C
Outdoor
Indoor
Heating and humidification process
(VKM100GAMV1)
Indoor units can be connected to up to 130% of the capacity of the outdoor units.
Air conditioning and outdoor air processing can be accomplished using a single system.
A compact unit packed with
Daikin’s cutting-edge technologies
Efficient outdoor air introduction
with heat exchanger and cooling/heating operation
New
DX-Coil: Heat Exchanger which heating
or cooling the air by VRV outdoor unit’s
refrigerant.
Humidification:5.4kg/h
Air Treatment Equipment Lineup
Compliant with the RoHS Directive
(refer to page 13 for details.)
