Motherboard Manual
8

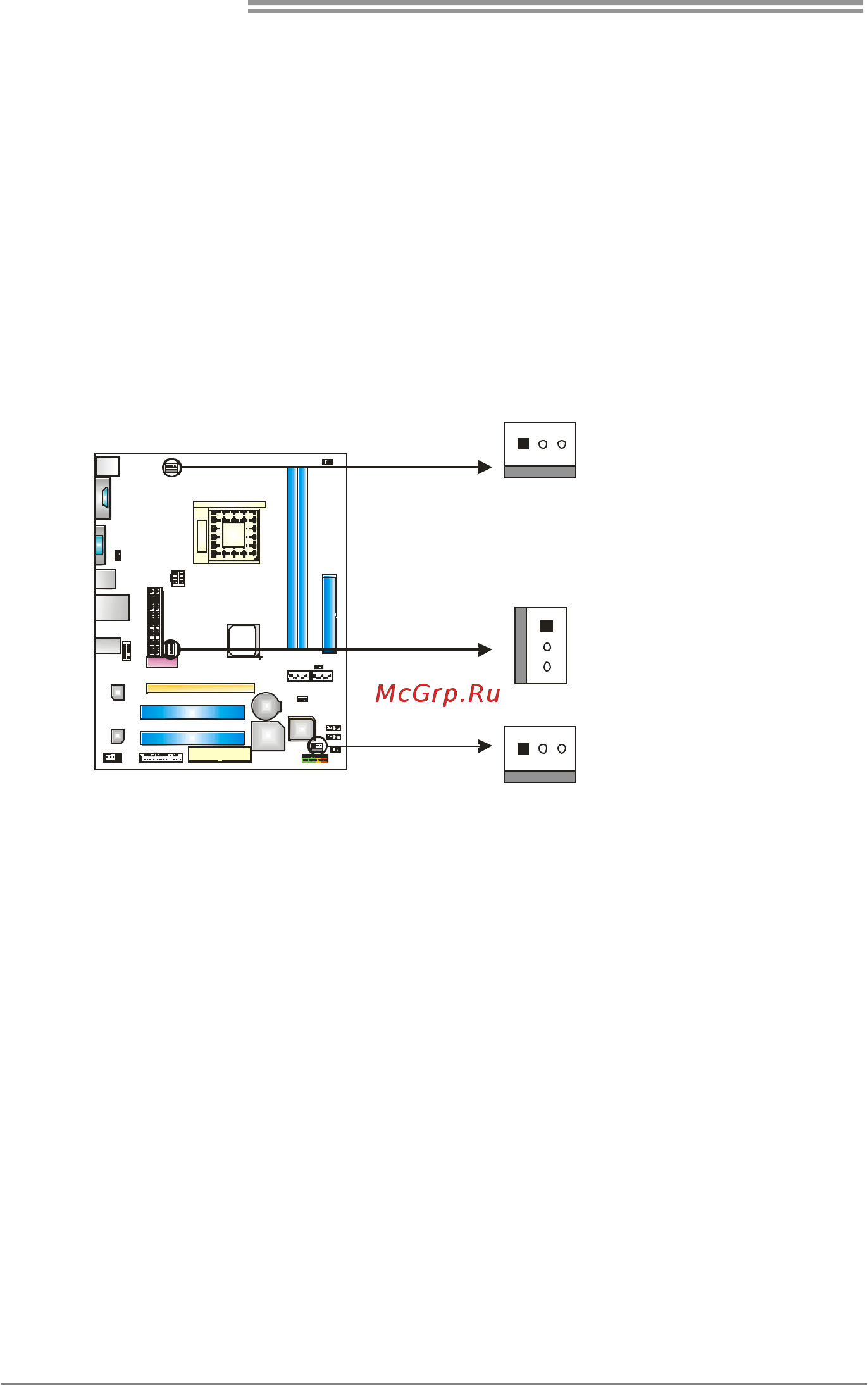

2.2 FAN HEADERS
These fan headers support cooling-fans built in the computer. The fan
cable and connector may be different according to the fan manufacturer.
Connect the fan cable to the connector while matching the black wire to
pin#1.
JCFAN1: CPU Fan Header
JSFAN1: System Fan Header
JNFAN1: North Bridge Fan Header (Optional)
Pin Assignment
1 Ground
2 +12V
13
1
3
JNFAN1
(Optional)
JSFAN1
13
JCFAN1
3
FAN RPM rate
sense
Note:
The JCFAN1、JSFAN1 and JNFAN1 support 3-pin head connector. When connecting
with wires onto connectors, please note that the red wire is the positive and should be
connected to pin#2, and the black wire is Ground and should be connected to GND.
